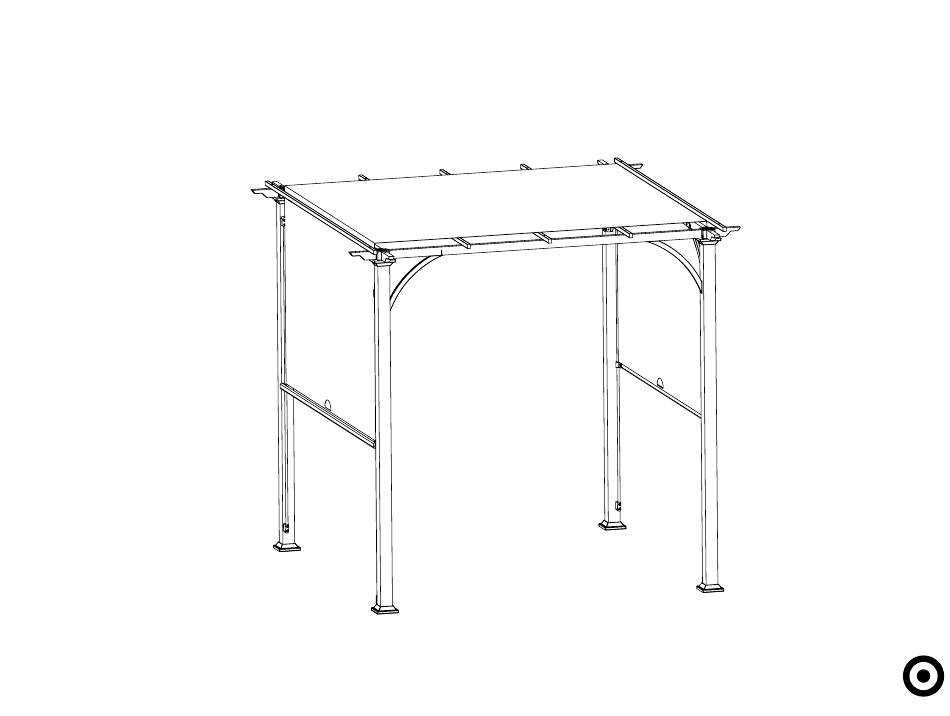

- Page 1 Fairmont 8’ x 8’ adjustable shade pergola style # GFS20403A dpci # 009050057 >>assembly instructions...
-
Page 2: Important Warning
Congratulations on your latest Target purchase. Now what? Don't start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you'll be on your way to transforming your patio in no time. Good luck –... -
Page 3: Warranty
Target Corporation Toll Free at: 855-MYTGTHOME (855-698-4846) during 7am - 7pm CST M-F, and 8am - 5pm CST Saturday. Code: Yotrio 2020 before you begin 1. Check for damage or missing parts. Call 855-MYTGTHOME (855-698-4846) to order missing supplies. - Page 4 table of contents introduction hardware parts list assembly 7-18 QUESTIONS? Please call 855-MYTGTHOME (855-698-4846) parts and service. For faster service, have th e style number and DPCI number r eady when calling.
- Page 5 hardware (Part Q)×16 (Part N)×92 (Part O)×10 (Part P)×16 ground spike M6*15mm bolt with washer M6*40mm bolt with washer M6*55mm bolt with washer (Part R)×2 allen wrench...
-
Page 6: Description Quantity
ITEM DESCRIPTION QUANTITY post leg1 post leg connector bar1 connector bar2 top bar rail bar shade rod sling canopy corner bracket1 corner bracket2 end tip post decoration post base post base plate tube connector duo tube connector... - Page 7 step 01: (Part N)×8 (Part R)×1 M6*15mm bolt with washer allen wrench & ATTENTION: To avoid damage to your new pergola, please use either the carton or another soft surface such as carpet as a working surface to prevent product damage during assembly. 1.
- Page 8 step 02: (Part N)×8 (Part R)×1 allen wrench M6*15mm bolt with washer 1. Place the post leg1 & 2 (A1 & A2) on the soft surface. 2. Attach the connector bar1 (B1) to the post leg1 & 2 (A1 & A2), secure with M6*15mm bolt with washer (N) using the allen wrench (R).
- Page 9 step 03: (Part N)×8 (Part R)×1 M6*15mm bolt with washer allen wrench 1. When the post leg1 & 2 (A1&A2) connections are made, set the post leg1 & 2 (A1 & A2) upright. 2. Attach the connector bar2 (B2) to the post leg1 & 2 (A1 & A2), secure with M6*15mm bolt with washer (N) using the allen wrench (R).
- Page 10 step 04: (Part N)×16 (Part R)×1 allen wrench M6*15mm bolt with washer & & 1. Attach the end tips (H) to the post leg1 & 2 (A1 & A2), secure with the M6*15mm bolt with washer (N) using the allen wrench (R). &...
- Page 11 step 05: (Part N)×8 (Part R)×1 allen wrench M6*15mm bolt with washer & & & 1. Push up the post decorations (I) and align the bolt holes on the post leg1 & 2 (A1 & A2), secure with M6*15mm bolt with washer (N) &...
- Page 12 step 06: (Part N)×32 (Part R)×1 allen wrench M6*15mm bolt with washer 1. Attach the corner bracket1 & 2 (G1 & G2) to the post leg1 & 2 (A1 & A2) and the connector bar1 & 2 (B1 & B2), secure with M6*15mm bolt with washer (N) using the allen wrench (R).
- Page 13 step 07: (Part N)×2 (Part O)×6 M6*15mm bolt with washer M6*40mm bolt with washer (Part R)×1 allen wrench 1. Attach 3 of the top bar (C) to both connector bar2 (B2), secure with M6*40mm bolt with washer (O) using the allen wrench (R). 2.
- Page 14 step 08: 1. Insert the rail bars (D) through the hole of the tube connectors (L). 2. Insert the duo tube connectors (M) onto both ends of the rail bars (D). Do not completely tighten screws until all screws are in place.
- Page 15 step 09: (Part P)×16 (Part R)×1 M6*55mm bolt with washer allen wrench 1. Attach the rail bars (D) and the duo tube connectors (M) to the post leg 1 & 2 (A1 & A2), secure with M6*55mm bolt with washer (P) using the allen wrench (R).
- Page 16 step 10: 1. Insert the sling canopy (F) through the space between the top bar (C) and the connector bar1 (B1), ensure the sewing seams on the sling canopy (F) face inside the pegola. 2. Pull the sling canopy (F) on to the top bar (C). 3.
- Page 17 step 11: (Part N)×8 (Part Q)×16 (Part R)×1 ground spikes allen wrench M6*15 bolt with washer 1. Insert the shade rod (E) into the poket on the 2 side of sling canopy (F), the bolt holes should be faced to the inside of pergola. &...
- Page 18 step 12: 1. Tighten all bolts. Ensure all connections are secure before use. You are now ready to enjoy your new pergola.
