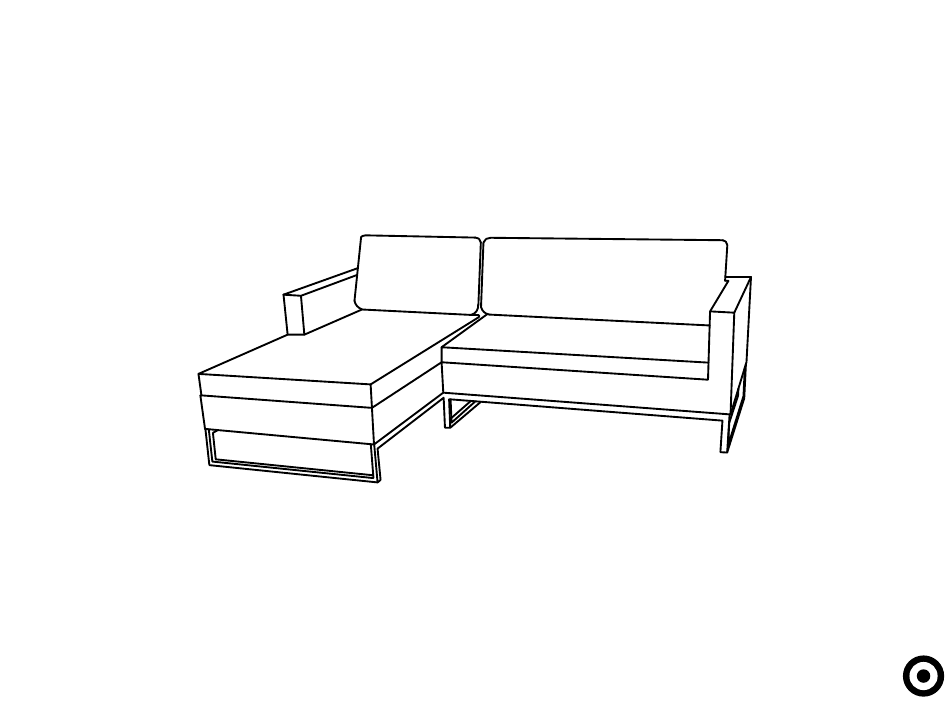

- Page 1 Howell Glove Sling Deep Seating Set style # FCS01151AST dpci # 009000870 >>assembly instructions...
-
Page 2: Important Warning
Congratulations on your latest Target purchase. Now what? Don't start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you'll be on your way to transforming your patio in no time. Good luck –... -
Page 3: Warranty
Target Corporation Toll Free at: 855-MYTGTHOME (855-698-4846) during 7am - 7pm CST M-F, and 8am - 5pm CST Saturday. Code: Yotrio 2019 before you begin 1. Check for damage or missing parts. Call 855-MYTGTHOME (855-698-4846) to order missing supplies. - Page 4 table of contents introduction hardware parts list assembly 7-10 QUESTIONS? Please call 855-MYTGTHOME (855-698-4846) parts and service. For faster service, have th e style number and DPCI number r eady when calling.
- Page 5 hardware (Part E)×8 (Part F)×4 (Part G)×1 (Part H)×2 M6*25mm screw with washer M6*30mm screw with washer Allen wrench Clip...
-
Page 6: Description Quantity
ITEM DESCRIPTION QUANTITY chair bracket 1 chair base 1 chair bracket 2 chair base 2... - Page 7 step 01: (Part E)×8 (Part F)×4 M6*25mm screw with washer M6*30mm screw with washer (Part G)×1 (Part H)×2 Allen wrench Clip 1. Place the chair bracket 1 (A) upside down on a soft surface such as carpet. 2. Attach chair base1 (B) to the chair bracket 1 (A) by lining up the screw holes on the end of chair base 1(B) with the corresponding screw holes on the chair bracket 1 (A).
- Page 8 step 02: (Part E)×8 (Part F)×4 M6*25mm screw with washer M6*30mm screw with washer (Part G)×1 (Part H)×2 Allen wrench Clip 1. Place the chair bracket 2(C) upside down on a soft surface such as carpet. 2. Attach chair base2 (D) to the chair bracket 2(C) by lining up the screw holes on the end of chair base 2(D) with the corresponding screw holes on the chair bracket 2 (C).
- Page 9 step 03: (Part E)×8 (Part F)×4 M6*25mm screw with washer M6*30mm screw with washer (Part G)×1 (Part H)×2 Allen wrench Clip 1. Place the chair bracket 1(A) and chair bracket 2 (C) upside down on a soft surface such as carpet. 2.
- Page 10 step 04: 1. Tighted all the screws. 2. Return chair to upright position. 3. Put the cushion on the chair. You are now ready to enjoy your new chair.
- Page 12 arget. The Bullseye Design is a trademark of Target Brands Inc. All rights reserved.
