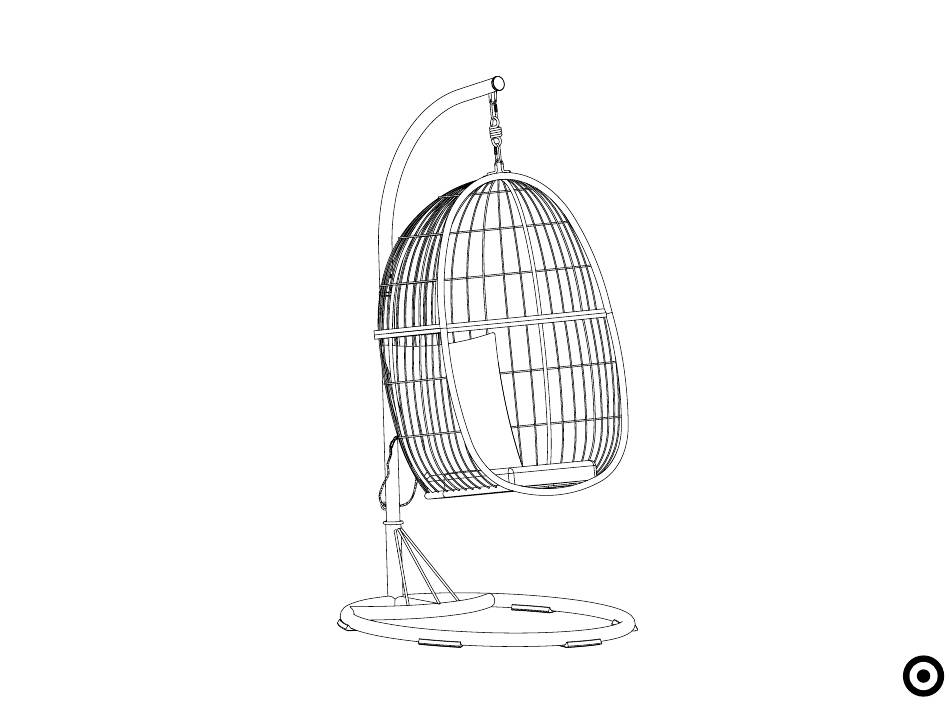

- Page 1 Latigo Hanging Egg Chair style # GCS09061E dpci # 009000255 >>assembly instructions...
-
Page 2: Important Warning
Congratulations on your latest Target purchase. Now what? Don't start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you'll be on your way to transforming your patio in no time. Good luck –... -
Page 3: Warranty
Target Corporation Toll Free at: 855-MYTGTHOME (855-698-4846) during 7am - 7pm CST M-F, and 8am - 5pm CST Saturday. Code: Yotrio 2020 before you begin 1. Check for damage or missing parts. Call 855-MYTGTHOME (855-698-4846) to order missing supplies. - Page 4 table of contents intruction hardware parts list assembly 7-11 QUESTIONS? Please call 855-MYTGTHOME (855-698-4846) parts and service. For faster service, have th e style number and DPCI number r eady when calling.
- Page 5 hardware (Part K)×4 (Part F)×1 (Part G)×4 (Part H)×2 (Part I)×1 (Part J)×4 M8 *55 bolt with washer M6 washer M6 nut hook M6 *50 bolt with washer M8 *60 bolt with washer (Part Q)×1 (Part L)×3 (Part M)×3 (Part N)×1 (Part O)×1 (Part P)×2 plastic connection ring...
- Page 6 ITEM DESCRIPTION QUANTITY base upper hanging bar lower hanging bar back frame seat frame hook plastic mulffer...
- Page 7 step 01: (Part L)×3 (Part M)×3 (Part H)×2 M8 washer M8 nut M8 *55 bolt with washer (Part O)×1 (Part N)×1 wrench allen wrench ATTENTION: To avoid damage to your new patio furniture, please use either the carton or another soft surface such as carpet as a working surface to prevent product damage during assembly.
- Page 8 step 02: (Part J)×4 (Part G)×4 M6 *50 bolt with washer M6 washer (Part N)×1 (Part K)×4 allen wrench M6 nut 1. Attach the back frame (D) to the seat frame (E) by lining up screw holes on the back frame (D) with corresponding screw holes on the seat frame (E). 2.
- Page 9 step 03: (Part P)×2 plastic muffler 1. Put plastic muffler (P) on the bar loop on upper hanging bar (B) and back frame (B). Do not completely tighten screws until all screws are started.
- Page 10 step 04: (Part F)×1 hook Follow the diagram in circle1 at the top to open the hook (F),hang the hook(F) on the upper hanging bar (B). 2. Hang the back frame (D) and seat frame (E) on the hook (F).fully tighten the hook (F) as shown on the diagram in circle 3 at the top.
- Page 11 step 05: 1. Open the hook of safety rope on the seat frame (E), pass through the iron loop on the lower hanging bar (C). Then tighten the hook of safety rope.
- Page 12 step 06 : Tighten all the bolts. 2. Put the cushion on the chair. You are now ready to enjoy your new chair.
