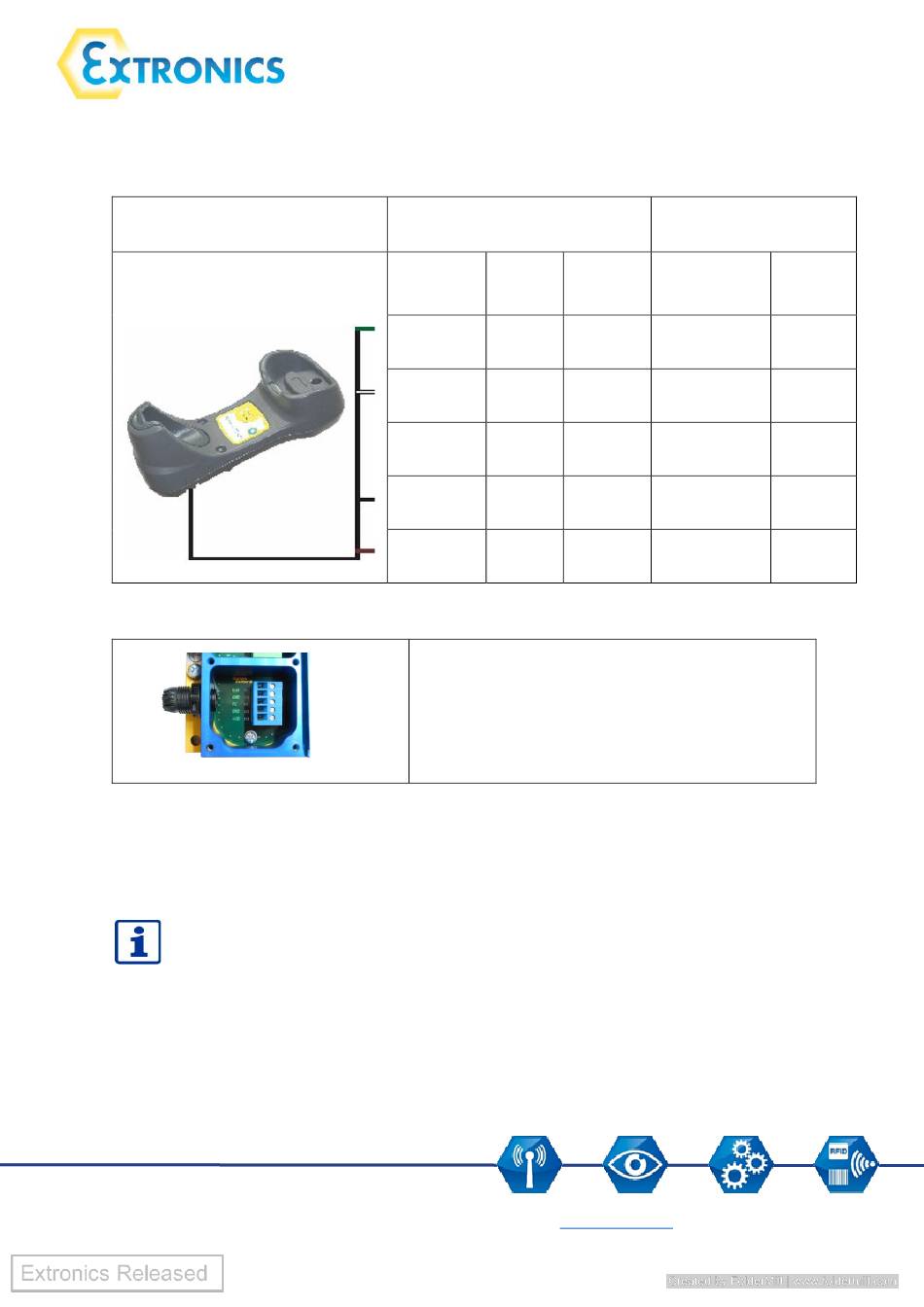

Direct connection of base station without plug connection to the RS232 iSCANPS – connection with
cable end sleeve:
Pin assignment of scanner
To fully operate the Bluetooth handheld scanner you will require the programming information
contained in the manual published by SICK AG (www.SICK.com).
Extronics Limited
1 Dalton Way, Midpoint 18, Middlewich, Cheshire, UK. CW10 0HU
Tel: +44 (0) 845 277 5000 Fax: +44 (0)845 277 4000 E-mail: info@extronics.com Web:
USB connection cable
RJ45 Pin Wire
assignment colours
2 Green
10 White
4 Black
7 Brown
Intrinsically safe connection box
of the USB iSCANPS power supply
after removal of the wires of the plug connection
www.extronics.com
Power supply
Definition Connection
terminal
power supply
D+ X9
D- X10
X11
GND X12
+UB X13
Definition
D+
D-
PE
GND
+UB
