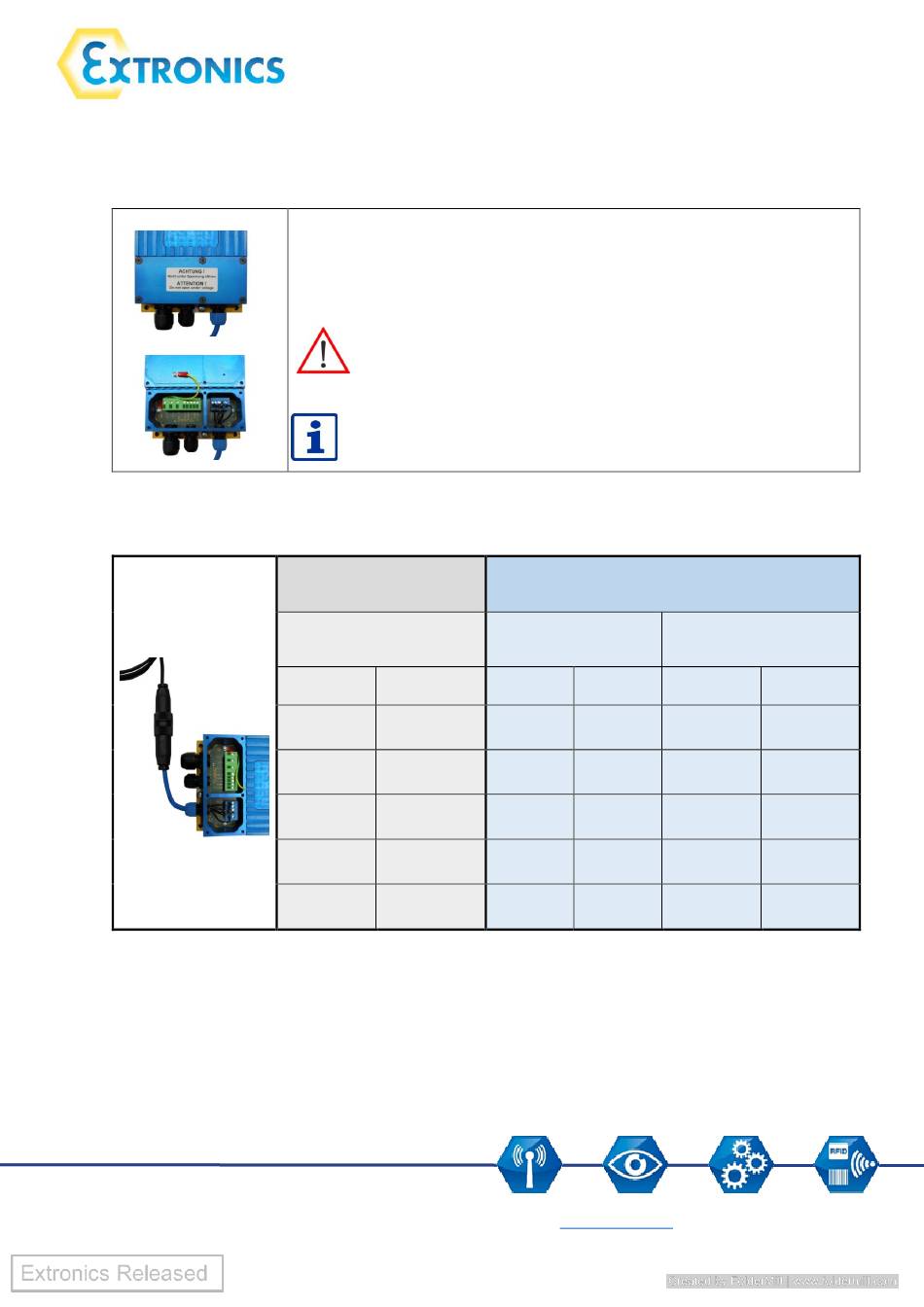

5.5 Connection of USB iSCANPS power supply

Supply of the base station as per assembly 1 with plug connection:
Connection of base station to the USB power supply with plug connection:
Extronics Limited
1 Dalton Way, Midpoint 18, Middlewich, Cheshire, UK. CW10 0HU
Tel: +44 (0) 845 277 5000 Fax: +44 (0)845 277 4000 E-mail: info@extronics.com Web:
The terminal assignment is located underneath the removable cover at the
front of the power supply.
Caution: Do not open enclosure in the hazardous area.
Before operating the device in a hazardous area you have to ensure
that the enclosure has been closed fully and all screws have been
tightened.
Cables may only be connected by trained staff.
USB cable
Pin assignment
connection coupling
Pin Definition
3 D+
2 D-
4 GND
1 +UB
Power supply
Pre-assembled
Connection coupling
Pin Wire
3 3
2 4
4 2
1 1
www.extronics.com
Connection box
Definition Number
D+ X9
D- X10
PE X11
GND X12
+UB X13
