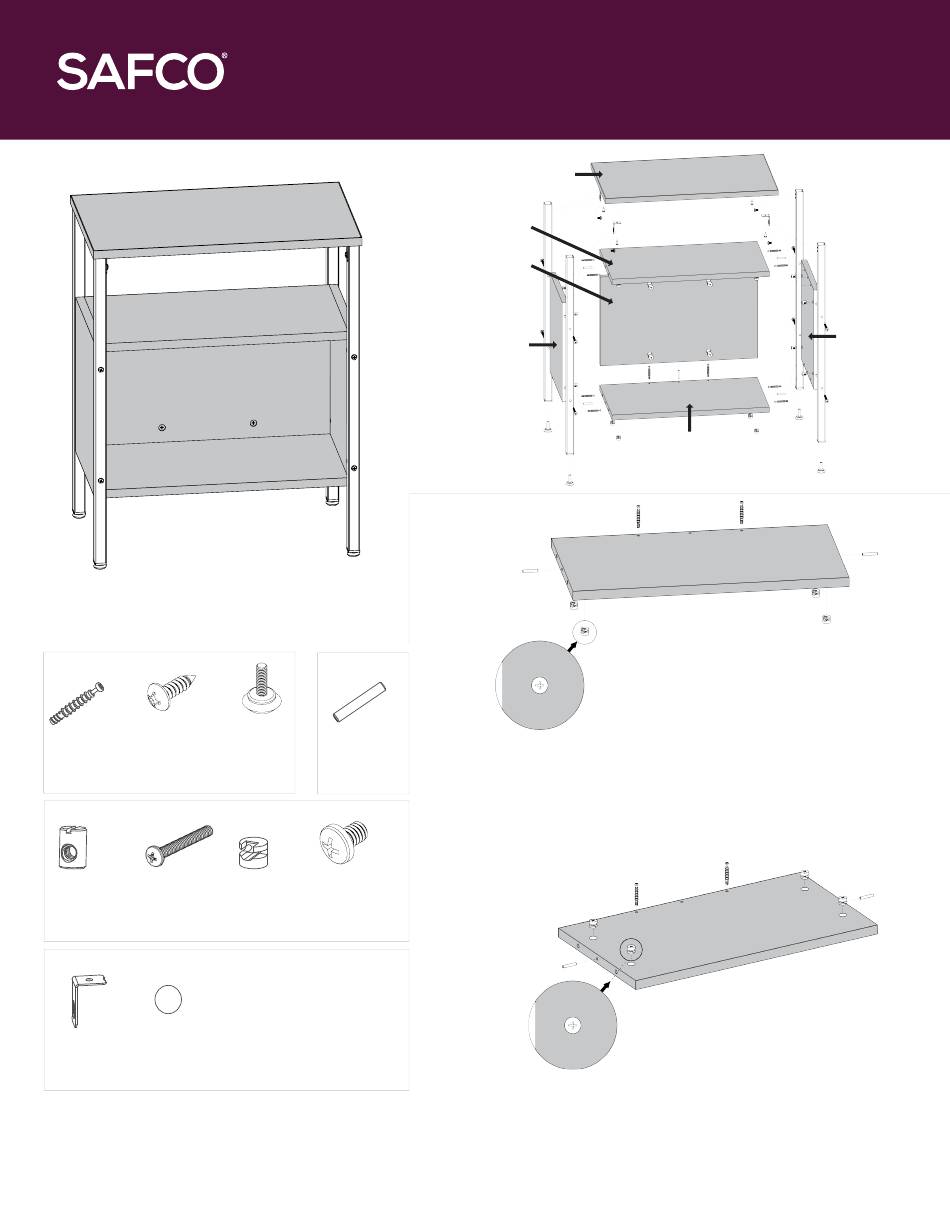

Safco Simple 5507 Assembly Instructions

Tools required for assembly:
Phillips screwdriver and rubber mallet
Hardware Included:
Pack# 900000385
Cam Post Wood Screw
920000504 X5108
QTY:12 QTY:4
Barrel Nut Pan Head Screw
920000579 905000508
QTY:8 QTY:8
Other Hardware
L-Bracket Laminate Stickers
420000198 FCAP5
QTY:4 QTY:16
For questions or concerns, please call 1-888-971-6225
available Monday-Friday 7:30 AM to 5:00 PM CST
(English-speaking operators)
Product Warranty is available at:
safcoproducts.com
99000359, Page 1 of 3, Rev B, Rev Date 01-MAR-2021
Leveler Dowel
Q444 920000472
QTY:4 QTY:6
Cam Pan Head Screw
920000310 905000506
QTY:12 QTY:4
Simple Collection
Top Panel
Box Top Panel
Box Back Panel
Box Side Panel
1
Insert 4 cams (with arrow out) into the bottom of the box bottom
panel. Using a Philips screwdriver, screw 2 cam posts into the
outside holes on the back edge of the panel until tight to the
panel. Insert 1 dowel in each of the short edges of the panel and
tap with a rubber mallet until they cannot be inserted any further.
2
Insert 4 cams (with arrow out) into the box top panel. Using a
Philips screwdriver, screw 2 cam posts into the outside holes on
the back edge of the panel until tight to the panel. Insert 1 dowel
in each of the short edges of the panel and tap with a rubber
mallet until they cannot be inserted any further.
Storage
Assembly Instructions
™
Box Bottom Panel
Box Bottom Panel
Top Box Panel
# 5507
Box Side Panel
