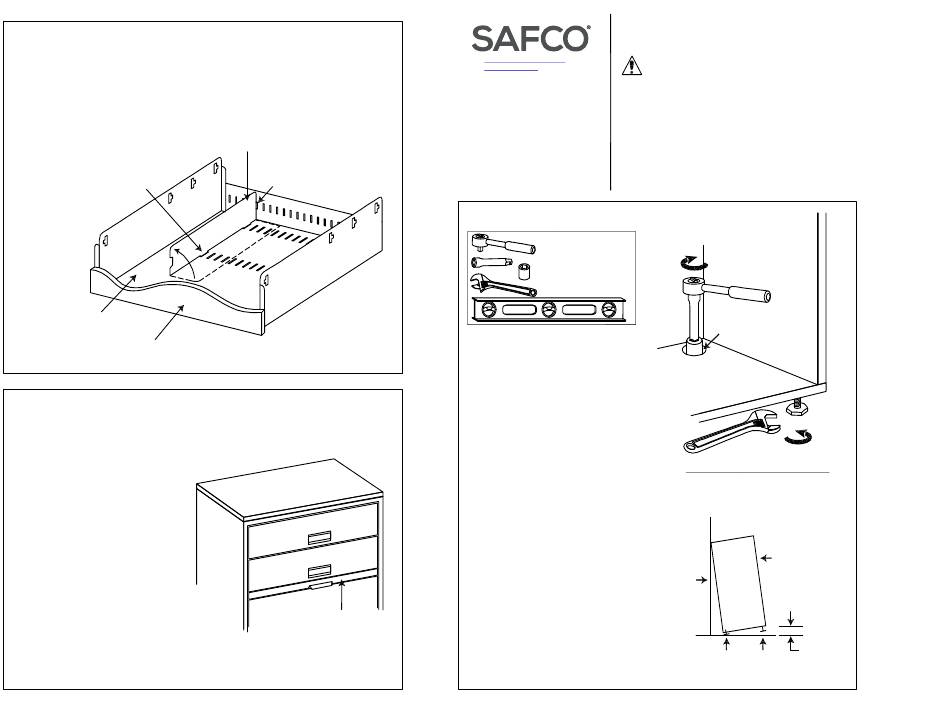

Safco I870 Assembly Instructions

OPTIONAL DIVIDERS
1. Position lower tabs pointing down and rear tab
pointing toward rear of drawer.
2. Insert rear tab into slot in back of drawer.
3. Lower bottom tabs into slots in bottom of drawer.
4. Reverse procedure to remove divider.
Lower Tab
Bottom of drawer
Front of drawer/shelf
5 DRAWER POSTING SHELF
1. Close drawers.
2. Pull out on posting shelf using handle
hold in center of posting shelf to fully
extend.
I
870
Rev. A 04/04/24
No. 19607
Divider
Rear Tab
Posting shelf
(4)
INSTALLATION AND USE MANUAL
FOR LATERAL FILES
www.safcoproducts.com
1-888-971-6225
AN IMPROPERLY INSTALLED FILE CABINET CAN BECOME
UNSTABLE OR TIP OVER, CAUSING SERIOUS INJURY.
Commercial
FOLLOW ALL INSTRUCTIONS IN THE MANUAL FOR
CORRECT INSTALLATION, USE AND MAINTENANCE.
Lateral File
These files are for storing and filing non-combustible materials
that do not require special protection. Do not use this cabinet to
store combustible or hazardous materials.
Assembly Instructions
WEAR SAFETY GLASSES WHEN USING TOOLS.
REQUIRED ADJUSTMENTS
Tools required for file adjustment:
1/4" Drive socket wrench
1/4" Drive extension
1/4" Six point socket with 1/4" drive
Adjustable, open end wrench
24" long level
Adjustable glides are provided in the base of each
cabinet. Your cabinet will have 4 glides (one at
each corner). Glide adjustment is critical for
cabinet stability and proper operation of lock,
interlock, drawers or other moving features
that may be present on your cabinet.
1. Be sure cabinet is empty.
2. Place a 24" level across the front of the cabinet to
level side-to-side. Adjust the front glides from the
outside of the cabinet using an adjustable open end
wrench. Turn the glides clockwise to raise the
cabinet and counterclockwise to lower the cabinet.
It may be necessary to cautiously tip the cabinet
back slightly to make the front glide adjustments.
The rear glides can be adjusted from the inside of
the cabinet using a socket wrench with a 1/4" drive.
Depending on your model, an access hole may be
present to access the rear glides.
3. The final glide adjustment is to adjust the glides
so that the front of the cabinet is higher than the
rear while maintaining the side to side levelness. On
carpeted surfaces, the front is 1/4" higher. On hard
surfaces, the front is 1/8" higher.
4. Check cabinet for proper operation. All drawers
on your cabinet should open and close smoothly
and be evenly aligned with the frame. The glide
adjustment and levelness of your cabinet can effect
this operation.
I
870
No. 19607
WARNING
Clockwise to raise
Rear
Access holes
glides
Front
glides
Counterclockwise to lower
Bottom drawer/shelf not shown for clarity
Front of cabinet
Wall
1/8" to 1/4"
Adjustable glides
(1)
