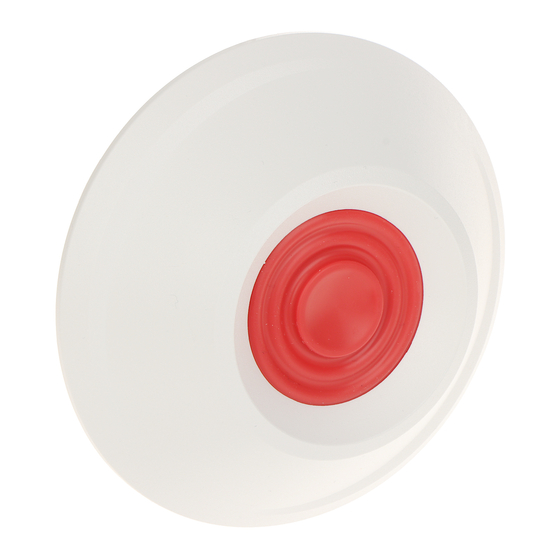

PB-10
Panic button
EN
The PB-10 panic button is used to trigger a panic alarm or call for help in emergency
situations. It can also be used to control the operation of various devices (e.g. automation or
access control system devices). This manual applies to the button with electronics
version 1.2.

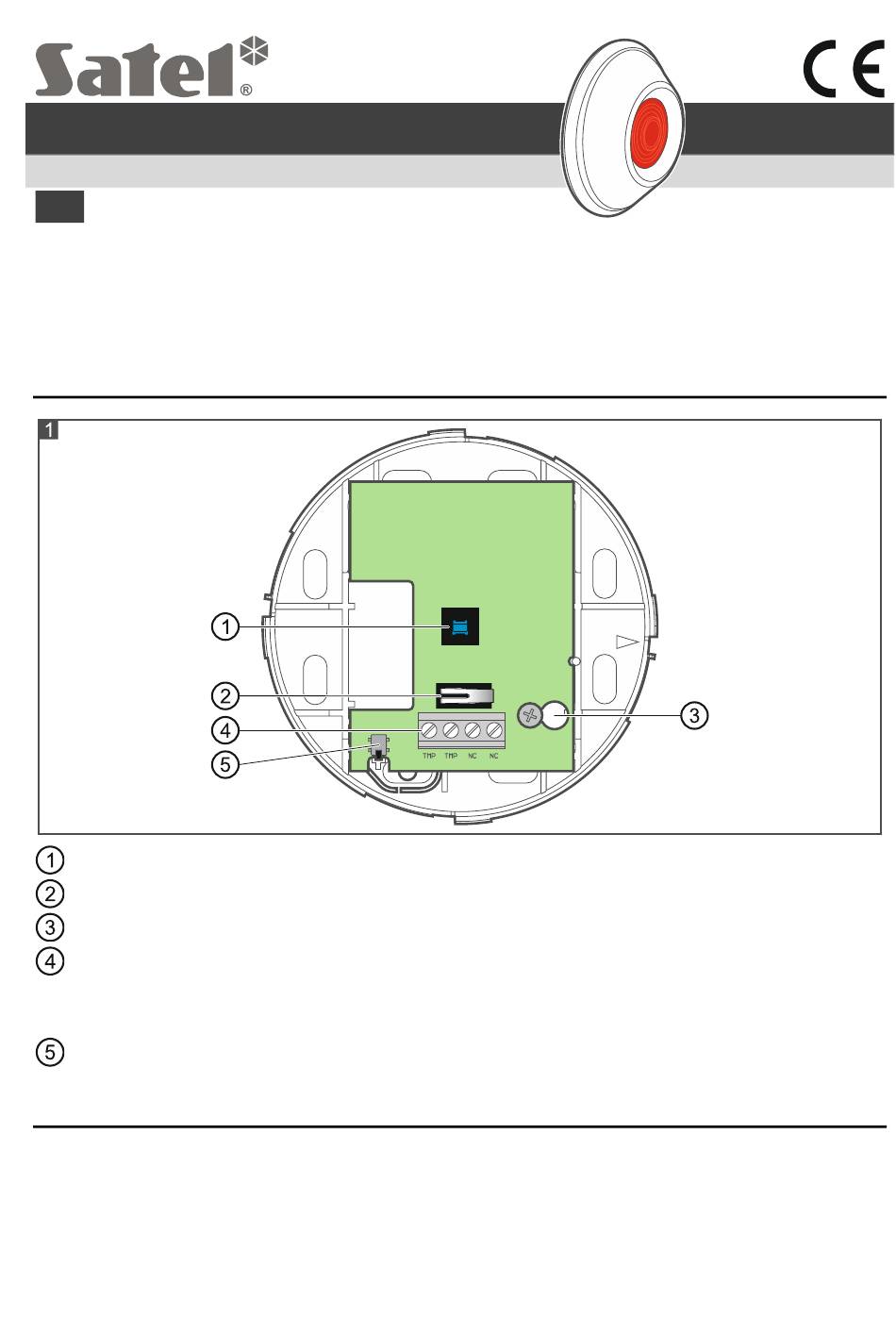

1. Electronics board

button.
tamper switch activated by cover removal.
fixing screw hole.
terminals:
TMP
- tamper output (NC). The output is open when the tamper switch is open.
NC
- alarm output (NC). The output is open when the button is pressed.
tamper switch activated by removal from mounting surface.

2. Installation

The button is designed for indoor installation.
1. Remove the button cover (Fig. 2).
2. Remove the electronics board (Fig. 3).
pb-10_en 06/21
