COLOR TELEVISION
SEDANCE 72
M 72- 2110 MV/DOLBY
;
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SEDANCE 72 and is the answer not in the manual?

Questions and answers

Summary of Contents for Grundig SEDANCE 72

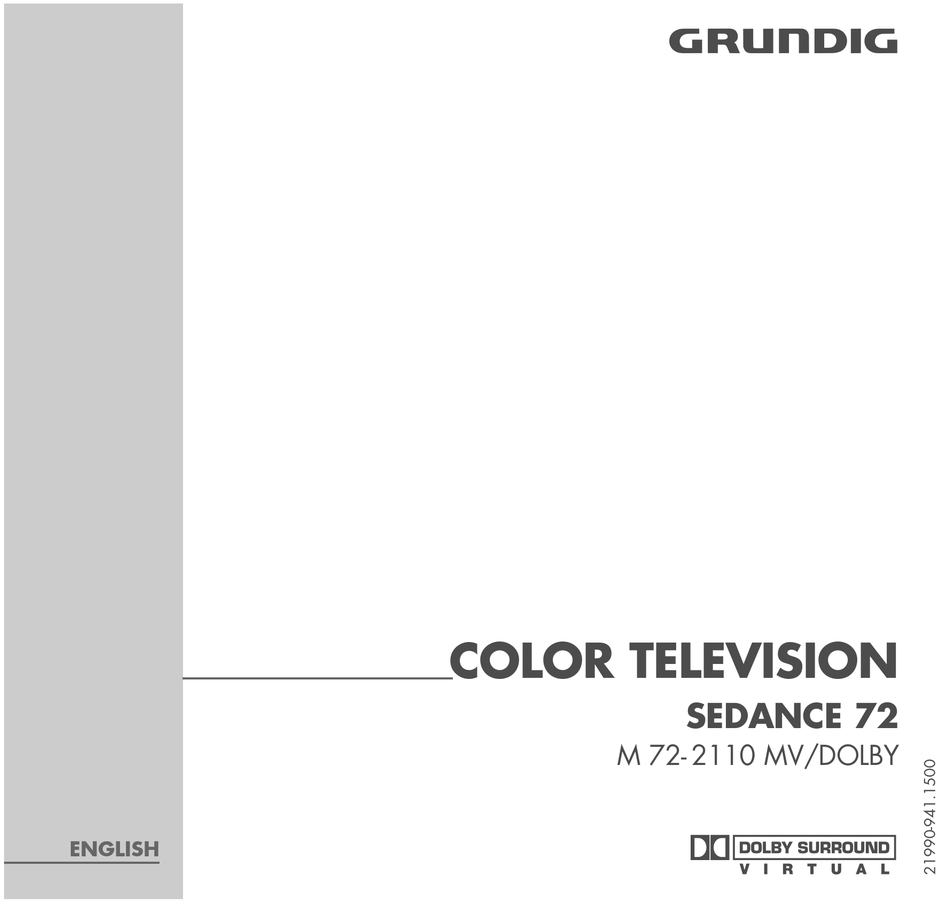

  • Page 1 COLOR TELEVISION SEDANCE 72 M 72- 2110 MV/DOLBY ENGLISH...
  • Page 2: Table Of Contents

    SEDANCE 72 M72-2110 MV/DOLBY __________ Scope of delivery COLOR TELEVISION Tele Pilot 150 C TV set User manual Remote control Mains cable 2 batteries, 1.5 V–, Mignon type Contents Special Features Easy Dialog System Installation and Safety Additional Functions At a Glance...
  • Page 3: Special Features

    _______________________________________________________ Technology 72 cm colour picture tube (visible picture: 68 cm); 100 Hertz technology. GRUNDIG Megalogic Megalogic possibilities: – Perfect communication with a Megalogic video recorder. No troublesome programming of channel positions. – By starting playpack on the video recorder, the video programme position on the TV set will be automatically selected.
  • Page 4: Installation And Safety

    INSTALLATION AND SAFETY _______________________________ In order to assure that this high-quality and easy-to-use TV set will be able to provide you with good service and pleasure for a long time to come, it is impor- tant that you observe the following points when installing the set. This set has been designed for the reception and reproduction of picture and sound signals.
  • Page 5 INSTALLATION AND SAFETY ___________________________________________________ Do not open the TV set under any circumstance. The manufacturer will offer no liability for damage resulting from unauthorized tampering. Be sure that the mains cable is not damaged at any time. Storms represent a danger for every type of electrical device. Even if the set is switched off, it could be damaged by a lightning strike hitting the mains and/or the aerial lead.
  • Page 6: At A Glance

    AT A GLANCE ___________________________________________________________________ The front of the TV set Switches the TV set on/off. An LED indicates the current operating mode. Green Operation. Standby (TV-GUIDE mode, Yellow copy mode, Timer mode). Standby (power saving mode, timer programmed). – Volume –...
  • Page 7 Clock time and channel position information on/off. Still picture. Tele Pilot 150 C Calls up the »SOUND« menu. To operate a GRUNDIG video recorder, satellite receiver, VCR/SAT/ DVD player press the »»VCR«, »SAT« resp. »DVD« button and hold it down. Then press the desired button.
  • Page 8: Connection And Preparations

    CONNECTION AND PREPARATION _______________ Putting batteries into the remote control Open the battery compartment by pulling off the cover. Insert the batteries (Mignon, e.g. UM 3 or AA, 2x 1.5V) observing correct polarity. Note: If your television does not react to the remote control commands correctly, then the batteries could be used up.
  • Page 9: Settings

    SETTINGS ______________________________________________________________________________ Programming TV channels The TV set is equipped with the automatic tuning system “ATS euro plus” which carries out the channel position assignment for you. After switching on the TV set, select the »English« dialog language with »P -«...
  • Page 10: Easy Dialog System

    EASY DIALOG SYSTEM _____________________________________________ The Easy Dialog System Your TV set is equipped with the »GRUNDIG Easy Dialog System«. That means that operating instructions are not, as is usual, in a printed manual, but rather appear on the screen as dialogue fields.
  • Page 11: Additional Functions

    ADDITIONAL FUNCTIONS ______________________________________ Zap function With this function you may store the current channel position and switch to another one (zap). »1 … 0« or »P+, P -« to select the channel position you wish to store in › Z 7 PRO7 the zap memory (e.g channel position 7, PRO7) then press »Z«...
  • Page 12 ADDITIONAL FUNCTIONS _______________________________________________________ Alphanumeric channel selection You may select the channel positions directly by entering the channel name (e.g. ARD). For this, letters are assigned to the numeric buttons »2 … 0«. Up to four letters can be assigned. »2 … 0«...
  • Page 13: Customer Information

    CUSTOMER INFORMATION __________________________________ Technical data Mains voltage: 220 – 240 V, 50/60 Hz, (control range of the power supply unit 190 … 264 V) Power consumption: in operation 115 W, in standby 1 W Audio output stage: 2 x 20 Watt music power (2 x 10 Watt sine power) Reception ranges: C01 …...
  • Page 14: Correcting Problems Yourself

    CORRECTING PROBLEMS YOURSELF ____________ If the remedies below do not lead to a good result, contact an authorised GRUNDIG dealer. Please consider that problems can also be caused by external appliances, such as video recorders and satellite receivers. Problem Possible cause...
  • Page 15 CORRECTING PROBLEMS YOURSELF ____________________________________ Problem Possible cause Remedy Double image, reflection. Channel setting Automatic or manual channel setting/fine tuning Aerial Have aerial cable or device checked Picture is there, no sound. Volume at minimum or Increase/switch on volume. speakers switched off. Volume regulation activated Select sound output via audio cinch socket...
  • Page 16: Customer Information

    In no circumstance must any of the wires be connected to the terminal marked with the letter “E”, earth symbol “ ”, coloured green, or green & yellow. Replacement mains lead sets can be obtained from your local dealer, or by contacting Grundig Consumer Relations (01788 570088) Moulded 2-pin Euro lead set, not suitable for UK use:...
