- Page 1 RESILIENT SEAT GATE VALVE MODEL: RSGV DN50 - DN750 Installation & Operation Manual www.challengervalves.com.au QAD#IM1055 REVD, 23.11.20...
- Page 2 RESILIENT SEAT GATE VALVE MODEL: RSGV DN50 - DN750 Index INTRODUCTION 1.1 General Application 1.2 Technical Data 1.3 Features 1.4 Operation 1.5 Design Constraints INSTALLATION, OPERATION AND MAINTENANCE 2.1 Preparation 2.2 Installation 2.3 Maintenance WARRANTY QAD#IM1055 REVD, 23.11.20...

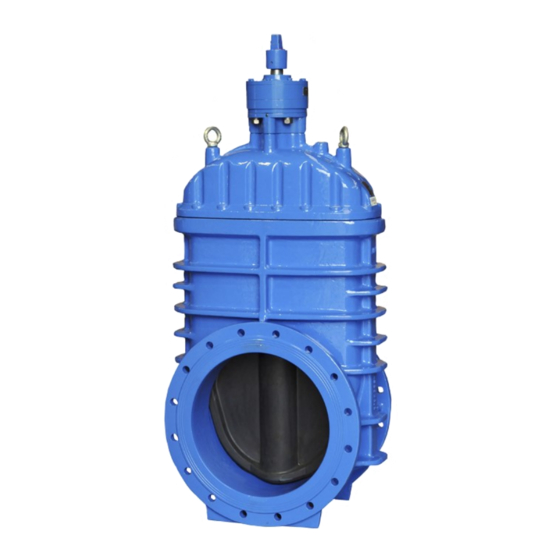

- Page 3 Resilient seated gate valves are the perfect solution for closing devices in pipeline systems. Complete with inside screw and non-rising spindle design, the RSGV gate valve is suitable for use in potable water, or waste water. - Operated by a hand wheel for above ground applications.
- Page 4 Lifting lugs and support feet for easy handling. 1.4 Operation The RSGV gate valve is designed and manufactured to close to completely, block flow, or open fully to allow maximum flow in pipelines. It is suitable for use with potable water, raw water and low solids sewage up to 40°C for AS4020 Compliance or 65°C for general applications.
- Page 5 Valves should be protected during transportation. Collision and falling should be avoided during transportation and installation. Lifting the valve directly by the attached Key Cap or Hand Wheel is strictly prohibited. Due to RSGV comprising rubber components, they are not to be stored exposed outdoors or exposed in sunshine for long periods of time.
- Page 6 This warranty covers faults in the products construction, material and assembly. Products which are within 12 months from the date of purchase and are found to be defective after inspection by a Challenger authorised representative in construction, material or assembly will be repaired or exchanged with an equivalent product free...
