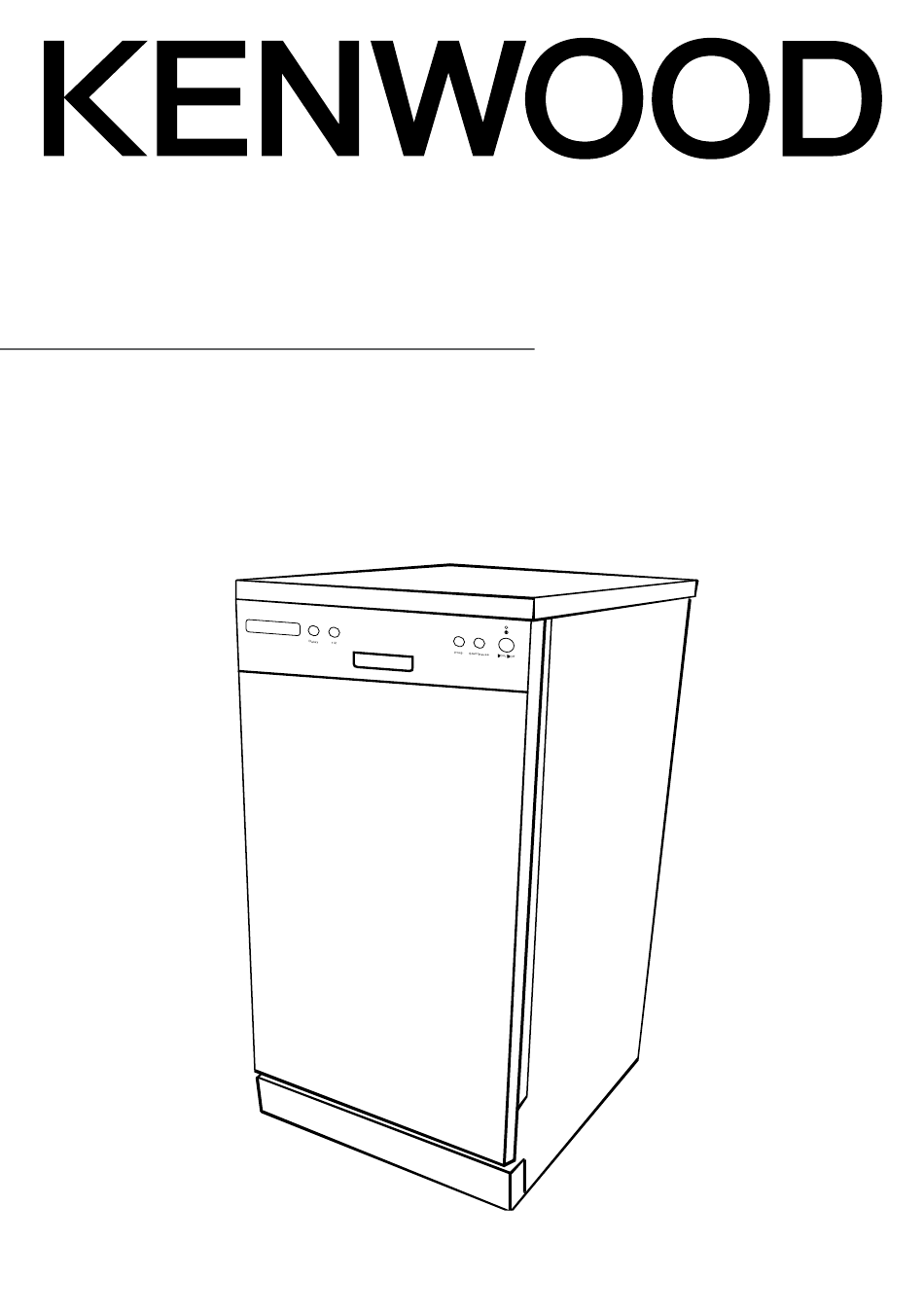

- Page 1 Slimline Dishwasher KDW45B13 installation / instructions manual...
-
Page 3: Table Of Contents
Contents Safety Warnings ......................... 5 unpacking ..........................8 installation ........................... 9 location ..........................9 product overview ......................13 front view ........................13 rear view ........................13 internal view ........................14 control panel ........................15 before operating ....................... 16 to open the door ......................16 to close the door ...................... - Page 4 wash cycle table ....................... 27 cleaning after use ......................28 external care ........................28 - the door and the door seal ..................28 - the control panel ...................... 28 internal care ........................28 - filtering system ......................28 - spray arms....................... 29 frost precaution ........................
-
Page 5: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the dishwasher and keep them for future reference. • Retain the manual. If you pass the dishwasher onto a third party, make sure to include this manual. - Page 6 • This appliance is intended for indoor household use and similar applications such as: - farm houses and by clients in hotels, motels and other residential type environment; - bed and breakfast type environment; - catering and similar non-retail applications. WARNING IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS...
- Page 7 • For energy saving, always remember to switch the dishwasher off when you have finished using it. The dishwasher should not be left unattended when in use. • Remove the door to the washing compartment when removing an old dishwasher from service or discarding it. •...
-
Page 8: Unpacking
Thank you for purchasing your new Kenwood Dishwasher. These operating instructions will help you use it properly and safely. We recommend that you spend some time reading this installation/instruction manual in order that you fully understand all the operational features it offers. -
Page 9: Installation
installation installation location When selecting a position for your dishwasher you should make sure the installation surface is flat and firm, and the room is well ventilated. Avoid locating your dishwasher near a heat source, eg. cooker, boiler or radiator. Extreme cold ambient temperatures may also cause the appliance not to perform properly. - Page 10 installation 3. Do not connect the unit to the mains socket before installation. Ensure you are not installing the unit right in front of the mains socket. This is to avoid potential damage to the back of the unit. 4. The condensation strip must be fitted to the underside of the worktop above your dishwasher to protect it against any moisture.
- Page 11 installation 6. Position the dishwasher next to a water tap and a drain. Ensure the water inlet and drain hoses are not kinked or squashed. The unit must not stand on the mains cable. 7. Make sure your plumbing is suitable for use with the dishwasher.
- Page 12 installation • You may use the U-shaped drain hose holder to secure your drain hose and to avoid bending it. U-shaped drain hose holder water drain hose • Secure the water drain hose to the waste pipe to avoid it coming off during the washing process.
-
Page 13: Product Overview
product overview front view 1. control panel 2. door handle rear view 3. drain hose 4. water inlet (connect to supply hose) 5. mains cable (connect to electrical mains outlet) -
Page 14: Internal View
internal view 6. upper basket 10. cup rack 14. salt reservoir 7. salt reservoir 11. spray arm 15. spray arm 8. lower basket 12. filter 16. filtering system 9. detergent dispenser 13. rinse aid reservoir... -
Page 15: Control Panel
control panel Delay Prog. Start/Pause On/ Off 1. display window 5. Start/Pause button • displays programme selected, programme • confirm and start the selected washing remaining time, delay start time and fault programme. codes etc. • reset the washing programme. 2. -
Page 16: Before Operating
before operating to open the door • Pull the door handle. • If the door is opened during operation, first open the door slightly to avoid water spillage. If the door is opened during operation, all functions are automatically interrupted. to close the door •... -
Page 17: Adding Detergent Or Detergent Tablet
adding detergent or detergent tablet Only use detergents specifically designed for use in dishwashers. To be more environmentally friendly, please use no more than the correct amount of detergent. Fill the detergent dispenser with detergent power or tablet. See the detergent manufacturers instructions for the correct amount to use. -
Page 18: Adding Rinse Aid
adding rinse aid Rinse aid helps to ensure water does not cling and leave marks on crockery during the drying phase and helps crockery dry faster after it has been washed. Only pour rinse aid that is for domestic dishwashers into the reservoir. This model is designed to use liquid rinse aids only. Please follow the steps below to pour the rinse aid into the storage reservoir, and the amount will dispense automatically. -
Page 19: Adding Salt
adding salt If the water in your area is hard, deposits will form on your dishes and utensils. This appliance contains a salt reservoir for you to reduce the hardness of the water. Please follow the steps below to pour the salt into the salt reservoir and it must be set to correspond to the water hardness level in your area. -
Page 20: Adjusting Salt Consumption
adjusting salt consumption Salt consumption must be adjusted to correspond to the water hardness level in your area. If you don’t know how hard the water in your home is, please ask the company that supplies water in your area. It is recommended that adjustments should be made in accordance with the following chart. -
Page 21: Loading The Dishwasher
loading the dishwasher before loading the dishwasher In general, please observe the following notes before loading your cutlery and crockery into the basket. • Remove lipstick stains and any food residues from crockery and dishes. Rinse if necessary. • Dishes and cutlery must not lie inside one another, or cover each other. •... -
Page 22: Upper Basket
upper basket Please use the upper basket for small and lightweight items such as cups, saucers, glasses, dessert bowls, etc. Shallow pans or casserole dishes can also be placed in the upper basket. Long items such as soup ladles, mixing spoons and long knives should be placed lying down across the front of the upper basket. -
Page 23: Hinged Cup Rack
hinged cup rack To make room for taller items in the dishwasher basket, raise the cup rack upwards. You can then lean the tall glasses against it. You can also remove it when it is not required for use. To prevent water dripping from the upper basket onto the dishes in the lower basket, we recommend that you empty the lower basket first and then the upper basket. -
Page 24: Loading The Lower Basket For 9 Place Settings
loading the lower basket for 9 place settings For optimum loading of crockery in the lower basket, please refer to the below table and image. number item dessert dishes soup plates dinner plates oval platter cutlery basket cutlery basket To make unloading much easier, cutlery should be grouped in zones and placed in the cutlery basket. -
Page 25: Operation
Operation starting a wash cycle 1. Ensure the unit is connected to the mains power and the water supply is fully opened (water pressure between 0.04MPa and 1.00MPa). 2. Open the door. Pull out the lower and upper baskets, load the dishes and push the baskets back. -
Page 26: Switching Off The Unit
switching off the unit To save energy, remember to switch the dishwasher off using the ON/ OFF button. The dishwasher will continue to use electricity until it is switched off with the ON/ OFF button. If the dishwasher is not going to be used for a long period of time, e.g., you are going on holiday, please disconnect the dishwasher from the mains supply and switch off the water supply. -
Page 27: Wash Cycle Table
wash cycle table detergent running energy water amount rinse programme cycle selection information process time consumption consumption (pre-wash/ main (min.) (kWh) wash) 3in1 • For normally • pre-wash • use 3 in 1 1.08 13.5 soiled loads, use (50°C) detergent multifunctional •... -
Page 28: Cleaning After Use
cleaning after use external care the door and the door seal • Clean the door seals regularly with a soft damp cloth to remove food deposits. • When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. -
Page 29: Spray Arms
spray arms Particles of food can get stuck in the spray arm jets and bearings. The spray arms should therefore be checked and cleaned regularly. 1. Ensure the dishwasher is switched off. 2. Check whether or not the holes for the upper and lower spray arms are clogged. -
Page 30: Maintenance After A Prolonged Period Of Non-Operation
maintenance after a prolonged period of non-operation If you are not going to use the unit for a prolonged period of time, you are advised to: 1. Disconnect the dishwasher from the mains. 2. Disconnect the dishwasher from the water inlet and drain. Use a suitable receptacle to catch any residual water in the pipes. -
Page 31: General Problems
general problems problem possible causes remedy Detergent residue is left in the The detergent dispenser was Make sure the dispenser is dry dispenser at the end of the still damp when detergent was before adding detergent. programme. added. The detergent dispenser lid Clogged detergent residue is Clean the catch. -
Page 32: Disposal Of The Dishwasher
disposal of the dishwasher • When disposing of your old dishwasher, first make it unusable. Disconnect from the electricity and water supplies, cut off the cable and the plug from the mains cable. Make the door lock inoperative, so that children cannot accidentally shut themselves in. Make appropriate arrangements for the disposal of the dishwasher. -
Page 33: Specifications
specifications model KDW45B13 dimensions 450mm(W) x 580mm(D) x 850mm(H) capacity 9 Place Settings water pressure required 0.04 - 1.00MPa power consumption 1930W rated voltage 230V~50Hz off mode power consumption left-on mode power consumption 0.75 W energy efficiency class annual energy consumption 222 kWh energy consumption of the standard cleaning cycle 0.77 kWh... - Page 36 For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0844 5611234. Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day.
