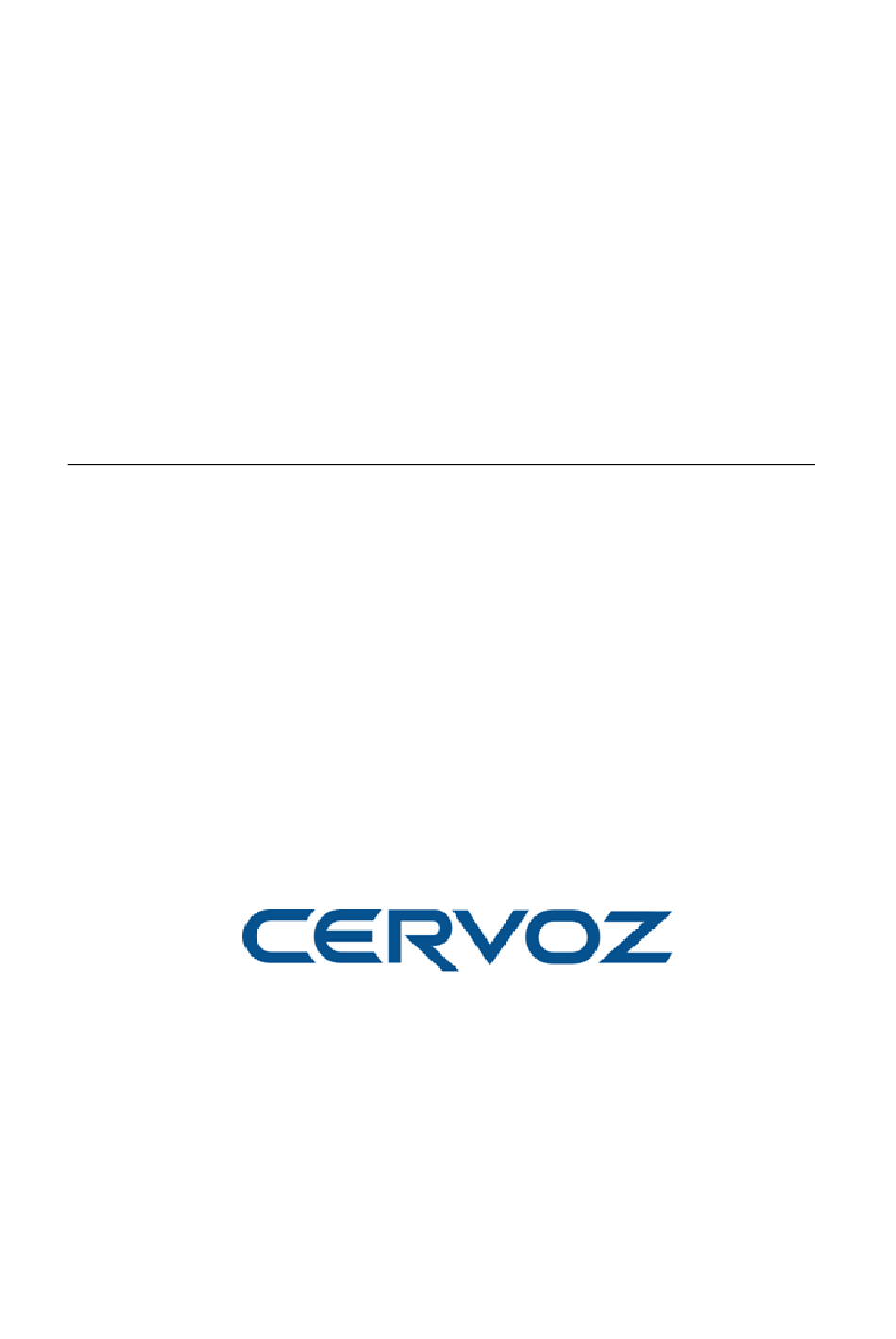

- Page 1 MEC-LAN-2001i M.2 2242/2260/2280 1-port 10/100/1000 isolated Ethernet board User’s Manual First Edition, August 2021 © 2021 Cervoz Technology Co., Ltd. All rights reserved. Reproduction without permission is prohibited...
- Page 2 Cervoz provides this document “as is,” without warranty of any kind, either expressed or implied, including, but not limited to, its particular purpose. Cervoz reserves the right to make improvements and/or changes to this manual, or to the products and/or the programs described in this manual, at any time.
-
Page 3: Table Of Contents
Table of Contents Chapter 1 Introduction Overviews Features Installation Flowchart Package Checklist Chapter 2 Hardware Installation Appendix Pin Assignments Board Side Pin Assignments Device Side Pin Assignments Technical Reference MEC-LAN-2001i Specifications MEC- LAN-2001i Dimensions MEC- LAN-2001i Daughter Board Dimensions Product Warranty Statement... -
Page 4: Introduction
Introduction Overview MEC-LAN-2001i is an Ethernet card for embedded PC. The card follows the M.2 standard which is compliant with PCI Express x 1 classification and M.2 form factor. This board fits in any host computer that has M.2 slots. MEC- LAN-2001i is a highly cost-effective solution to expand Gigabyte network for your computer. -
Page 5: Installation Flowchart
Installation Flowchart Installation Flowchart of MEC-LAN-2001i The following flowchart provides a brief summary of the procedure you should follow to install the M.2 card: Hardware Installation Connect the internal cable Hardware Installation Install the card in the M.2 slot Connector Fixation... -
Page 6: Hardware Installation
Hardware Installation This chapter describes the PCI Express Series hardware installation procedure. Since the BIOS automatically assign the PCI Express board’s IRQ number and I/O addresses, you must plug in the board before installing the driver. Step 1 Connect the internal cable to the card Both sides of the cable connectors are the same, it doesn’t matter which side Note you connect... - Page 7 Step 2 Install the card to the M.2 slot Make sure you install the card in the right position (fool-proof design) Step 3 Fix the card on the motherboard Make sure you tighten up the screws to fix the card The product comes in the M.2 2280 form factor but can be broken off to Note become a M.2 2260 or broken down further into a M.2 2242.
- Page 8 Step 4 Card installation completed Step 5 Connect the cable to the daughter board Connect other side of the cable to the daughter board Both sides of the cable connectors are the same, it doesn’t matter which side Note you connect ...
- Page 9 Step 6 Confirm if device is ready to be used Start “Computer Management” program Go to the route: My Computer → Manage → Device Manager → Network adapters ...
- Page 10 Connector Fixation MECFIX – Versatile Mounting 1. Standard PCI/PCIe Bracket PCI / PCIe IO Bracket 2. Low Profile PCI/PCIe Bracket Low Profile IO Bracket...
- Page 11 3. Internal Mounting Upper Fixation – Industrial System Right & Left Fixation – Industrial System...
- Page 12 4. Customized Front / Rear Plate Front / Rear I/O Plate Universal Bracket...
-
Page 13: Appendix
Appendix Pin Assignments ... -
Page 14: Board Side Pin Assignments
Board Side Pin Assignments Wire to Board Connector (CN1) Description Description BI_DA+ BI_DD+ BI_DA- BI_DD- BI_DB+ +1.5V BI_DB- BI_DC+ Link100 BI_DC- Link1000 Active Link Device Side Pin Assignments Ethernet Connector (CN2) Description BI_DA+ BI_DA- BI_DB+ BI_DC+ BI_DC- BI_DB- BI_DD+ BI_DD-... -
Page 15: Technical Reference
Technical Reference MEC-LAN-2001i Specifications General PCI-Express Revision PCI-Express Base Specification Rev 2.0 PCI-Express Electromechanical PCI-Express M.2 Electromechanical Rev 1.1 Revision Hardware Controllers Intel I210-IT Single-Lane (x1) PCI-Express with throughput up to 5.0/2.5Gbps Interface (Connector) Ethernet 10/100/1000 1 (RJ45) Technology Standards IEEE 802.3 for 10BaseT,... -
Page 16: Mec-Lan-2001I Dimensions
MEC-LAN-2001i Dimensions MEC-LAN-2001i Daughter Board Dimensions... -
Page 17: Product Warranty Statement
Limitation of Liability Cervoz’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original selling price of the product. The remedies provided herein are the customer’s sole and exclusive remedies.
