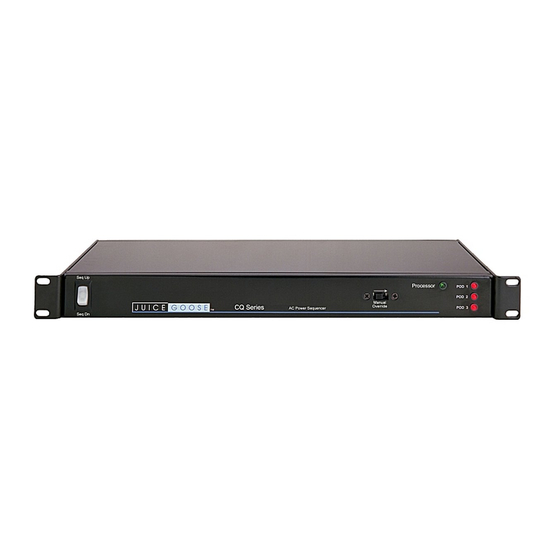

- Page 1 OWNER’S MANUAL CQ SERIES SEQUENCED POWER CONTROL CQ-1515 , CQ-1520 CQ-1 , CQ-5 , CQ-2200 CQ-3000 and CQ-PD1-4 includes CQ-1515-RX and CQ-1520-RX JULY 2021 File: 3176209DEN-001 Standard: UL508...
- Page 2 Juice Goose shall under no circumstances be held responsible for any losses, damage, or injury re- sulting directly or indirectly from the use of a CQ Series device in a manner contrary to accepted safe operating methods or any instructions contained in this document. The user should determine prior to use whether this product is adequate, suitable and safe for the application intended.
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS CQ Series products are designed to operate at 120 volts, 60 hertz. Operation with any voltage or fre- quency other than that can damage the equipment and create an unsafe situation. -
Page 4: Detail Specifications
DETAIL SPECIFICATIONS DIMENSIONS (H x W x D inches) CQ 1515 & CQ 1520……..………………….……………..…..…..………...1.72 x 19.00 x 7.00 CQ 1(Including 3 Gang Utility Box)..............4.50 x 6.50 x 3.75 CQ 5…………………………………………………………..…….………………..4.50 x 6.50 x 2.00 CQ 2200 ....……………….......………………………..………5.50 x 6.40 x 3.75 CQ 3000......................9.00 x 6.00 x 4.00 CQ PD1-4.…..……………………………………………..…………..………...32.00 x 3.50 x 2.00 WEIGHT (lbs) -
Page 5: Hard Wired Installation
These two CQ Series models have front panel and a back box construction that are held together with seven screws. To begin installation, remove the screws that hold these two pieces together. The back box has four holes in the back surface. -
Page 6: Remote Switch Connection
The interconnecting CQ Series devices requires eight wire, RJ-45 cable. While this is the same component used to assemble CAT5 and CAT6 cables, orientation of the connectors on the CQ Series cable is slightly different than for the CAT data networking cable. Standard CAT5 or CAT6 cables will not work with CQ Series de- vices. -
Page 7: Pin Assignments
PIN ASSIGNMENTS The chart above shows assigned locations for each of the eight pins on the RJ45 connectors on the CQ Series Signal Input and Output. Note: although there are eight pins, only the middle six are being used. This information may be used to connect a latching contact, as per the dia- gram on the previous page. -
Page 8: Operation
These versatile CQ devices can be controlled by way of either another CQ device, a remote latching contact closure, a Juice Goose RC5 accessory unit or the switch on the CQ device itself (except the CQ 1 or CQ5). CQ DEVICES - Any CQ device can operate in concert with others. Each can be a master (except the CQ 1 or CQ 5) or slave unit. - Page 9 Optional settings are 10 seconds, 20 seconds and 30 seconds. Changing the timing will only affect the product to which the adjustment is made and will not change the timing of any other CQ Series products connected by control lines.
-
Page 10: In Case Of Malfunction
If the problem can not be remedied or if the encountered problem larly if any evidence of severe or hazardous performance is observed, immediately discon- nect power to the CQ device and contact your local Juice Goose dealer or Juice Goose di- rectly. - Page 11 A wide variety of features is available. UPS (Battery Back Up) - Juice Goose sells high quality, value priced battery back up prod- ucts to provide clean AC power and battery support in the event of a black out. Sizes range from 350 VA to 3,000 VA, in either line interactive (voltage regulating) or on-line designs.
