AES global KPX1200 Quick Start Manual

AES KPX1200
* ALWAYS TEST THE UNIT ON SITE BEFORE INSTALLATION TO AVOID RESTOCKING FEES *

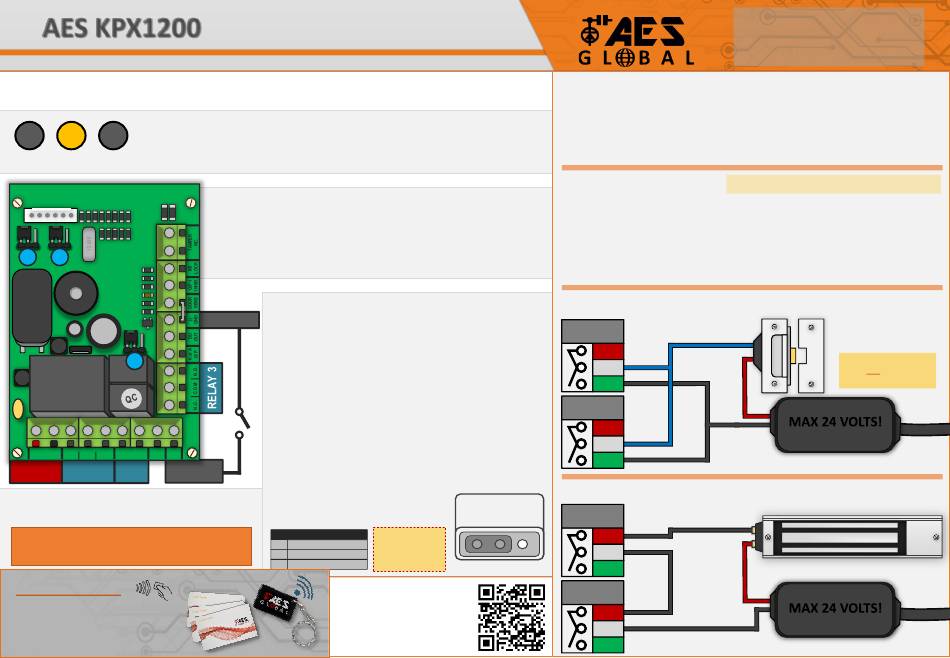

AES KPX1200 STANDARD OPERATIONS
1 2
3 LED 1 = RED/GREEN. It lights up in
also the Wiegand LED for feedback indication and will light up in GREEN.
LED 2 = AMBER. It flashes in Standby. It shows the system status in synchronization with the beeps.
LED 3 = RED/GREEN. It lights up in
( LEDs ABOVE KEYPAD FRONT )
20
19
A B
18
17
16
15
14
13
C
12
11
10
1 2 6
3 4 5 7 8 9
+ -
DATA EG
N.C. COM N.O. N.C. / N.O .
I/O
IN
EGRESS
RELAY 1 R2
24v IN
{1,2} 24v 2Amp = Regulated PSU
(Pre-wired for inside an AES Intercom System)
SUPPLEMENT WIRING DIAGRAMS CAN BE
FOUND ON OUR RESOURCE PAGE.
Did you know?
Extra Prox cards and Prox Tags
can be purchased in packs of 10
& 50.
( PROX versions only )
- Analog Keypad
RED while one of the outputs is inhibited. It is flashing during inhibition paused. It is
GREEN for OUTPUT 1 activation; and
{A} BACK-LIT JUMPER = FULL/AUTO.
FULL – The keypad gives dim backlit in standby. It turns to full backlit when a button is pressed,
then back to dim backlit 10 secs after the last button is pressed.
AUTO – The backlit is OFF in standby. It turns to FULL backlit when a button is pressed, then
back to OFF 10 seconds after the last button is pressed.
{B} ALARM OUTPUT SETTING = ( RESOURCES PAGE - ADVANCED WIRING OPTIONS )
{9,15} Egress for PTE (Push To Exit)
If you wish to make use of this feature you must wire your PTE switch using
GROUND
terminals 9 & 15 marked as ' EG IN
Note: The egress feature on the keypad is designed to only activate
that the entry you wish to gain access to via the PTE switch is connected to this output.
Programmable for Instant, Delay with Warning and/or Alarm Momentary or Holding
Contact for Exit Delay.
AES KPX1200 RELAY OUTPUT INFORMATION
{3,4,5} RELAY 1 = 5A/24VDC Max. N.C. & N.O. dry contacts.
1,000 (Codes) + 50 Duress Codes
{6,7,C} RELAY 2 = 1A/24VDC Max. N.C. & N.O. dry contacts.
100 (Codes) + 10 Duress Codes (COMMON port is determined by the Shunt Jumper marked
as C on the diagram. Connect your device to N.C. and N.O. and then move the jumper to
the required position and test.)
{10,11,12} RELAY 3 = 1A/24VDC Max. N.C. & N.O. dry contacts.
100 (Codes) + 10 Duress Codes
{19,20} Tamper Switch = 50mA/24VDC Max.
N.C. dry contact.
RELAY CONNECTIONS
N/ O Normally Open
C Common
N/ C Normally Closed
NEED MORE ASSISTANCE?
Please scan this QR Code to be
brought to our RESOURCES PAGE
where you can find all of our
guides and available resources.
RED for OUTPUT 2 activation.
' and ' (-) GND.
Output 1. Ensure
SECONDARY
OUTPUT 2
|
N.C. N.O.
ALL THREE
OUTPUTS ARE
VOLT-FREE
CONTACTS.
^MOVE JUMPER LINK^
SECONDARY
Find all of our support options such as Web Chat,
Full Manuals, Customer Helpline and more on
SITE SURVEY
TIP: If fitting this keypad as an independent system then no site survey is required.
If the keypad is included inside a callpoint then please follow the site survey details
included on the main product guide.
POWER CABLE
TIP: Most technical calls received are due to installers using CAT5 or alarm cable
to power the unit.
NEITHER are rated to carry enough power! ( 1.2amp peak )
Please use the following cable:
Up to 2 metres ( 6 feet ) – Use minimum 0.5mm
Up to 4 metres ( 12 feet ) – Use minimum 0.75mm
Up to 8 metres ( 24 feet ) – Use minimum 1.0mm
STRIKE LOCK WIRING METHOD
KEYPAD
RELAY
NC
COM
NO
RELAY
NC
COM
NO
MAGNETIC LOCK WIRING METHOD
KEYPAD
RELAY
NC
COM
NO
RELAY
NC
COM
NO
( LINKING WITH SECONDARY RELAY IS OPTIONAL FOR BOTH METHODS )
STILL HAVING TROUBLE?
our website:
WWW.AESGLOBALONLINE.COM
KEEP POWER SUPPLY AS CLOSE AS POSSIBLE.
2 ( 18 gauge )
2
( 16 gauge )
2 ( 14 / 16 gauge )
STRIKE
LOCK
LOCK POWER SUPPLIES
ARE NOT INCLUDED AS
PART OF THE KIT.
MAINS
MAX 24 VOLTS!
* SOLD SEPARATELY * POWER
MAGNETIC LOCK
MAINS
MAX 24 VOLTS!
POWER
* SOLD SEPARATELY *
