Summary of Contents for Mimitakara @goodHearing P1

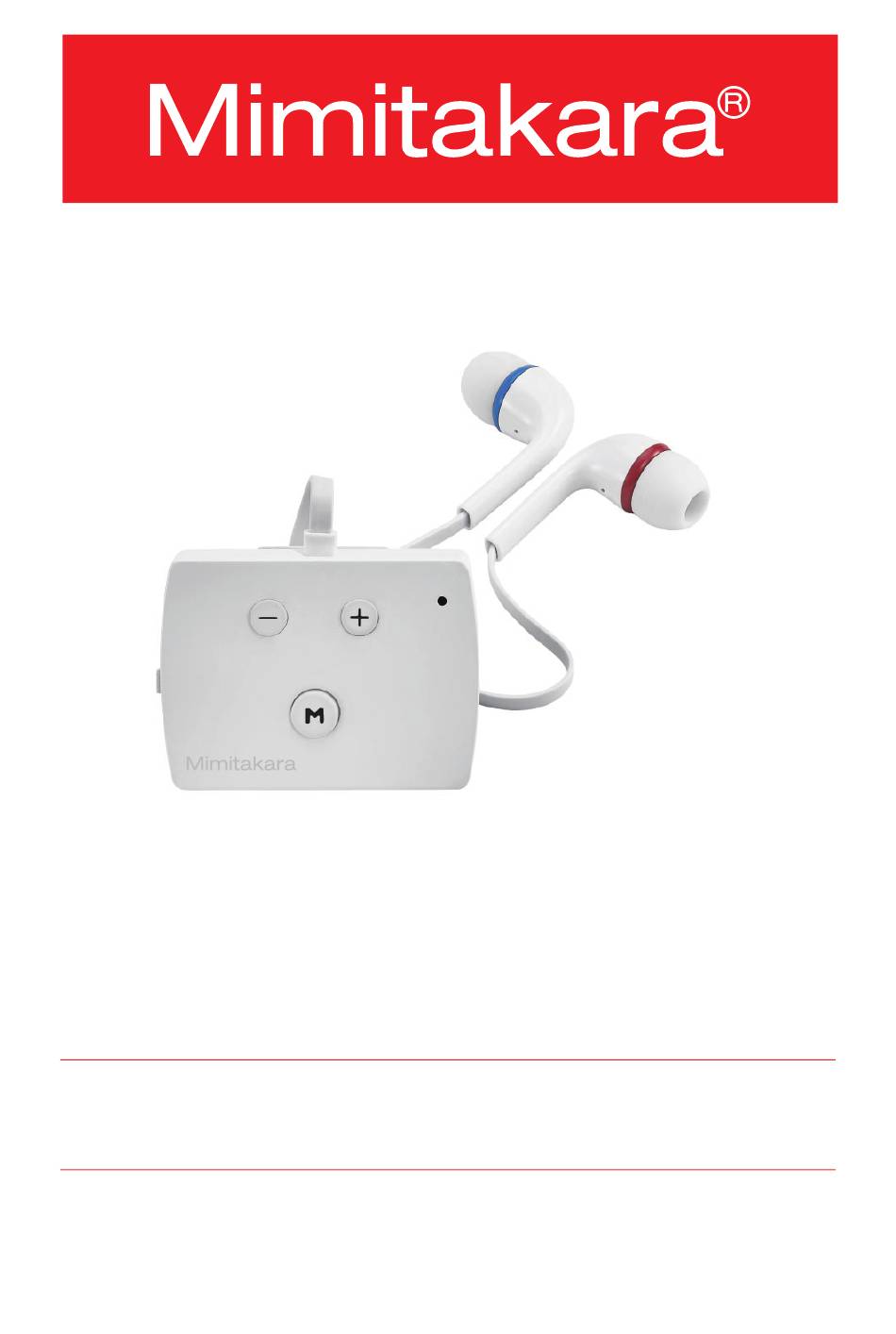

- Page 1 @goodHearing P1 User Guide...
-
Page 3: Table Of Contents
Content 1. ACCESSORIES ......... P1 2. FEATURES ..........P 2 3. -
Page 4: Accessories
1. ACCESSORIES Main unit with built-in ear buds (M size) 2 x Additional pair of L & S Size ear buds USB cable... -
Page 5: Features
2. FEATURES Earphone (Red – Right) (Blue – Left) Volume controller Microphone Mode / LED Indicator Bluetooth Connect Power Switch Charging port Collar clip... -
Page 6: Set Up
3. SET UP 3.1) Wearing instructions 1) Securely fit the red earphone into the right ear and the blue earphone into the left ear. 2) Turn the unit ON (When the unit is turned on the LED Indicator Light will flash blue. 3) The goodHearing P1 has 11 adjustable volume... - Page 7 4) We suggest clipping the device to the outside shirt pocket or collar to avoid it from rubbing against objects in order to reduce the static sounds (Ensure the microphone is not obstructed for optimum sound quality).
-
Page 8: Recharging Instruction
3.2) Recharging Instruction 1) Charging the battery before use is recommended but not required. goodHearing P1 comes pre-charged however initial charge will vary. 2) 3+ hrs for full charge gives up to 10 hours of usage time. - Page 9 3) When plugged into a power source Solid RED LED Indicator : Charging Solid BLUE LED Indicator : Fully charged...
-
Page 10: Switching Between Modes
3.3) Switching between modes 1) There are 3 pre-set modes on the goodHearing (Standard Mode & Noise Cancelling Mode). Standard Mode : Mostly used indoor where the environment is not too noisy. Noise Cancelling Mode : Used in louder environment such as outdoor public areas, restaurants. - Page 11 2) To switch between the 2 modes click the button (located in the center of the goodHear- ing P1 device). A beep will be heard when switching between the 3 modes to indicate which mode it is currently set it. Mode 1 : A single beep will be heard (Standard Mode) Mode 2 : 2 beeps will be heard...
-
Page 12: Pairing Bluetooth
4. PAIRING BLUETOOTH 1) Have both devices within arm length of each other 2) Turn on goodHearing P1 3) Press and hold the M for 3 seconds 4) The LED Indicator will flash alternating BLUE and RED colors 5) Turn on the Bluetooth function on your mobile device 6) Scan for nearby devices 7) Pair with... - Page 13 Repeat the steps outlined above to set-up your goodHearing P1 with another Bluetooth device. Note that when a 3rd Bluetooth device is paired the oldest pairing Bluetooth device information will be deleted. goodHearing P1 will connect with the latest connected device. If you want to use another paired Bluetooth device, switch off the Bluetooth function of the current Bluetooth device, and then connect the...
- Page 14 any other reason, reconnect the goodHearing P1 with the device that you wish to pair it with. Please scan QR code to download the APP or search “goodHearing” on APP Store / Google Play goodHearing Android...
-
Page 15: Safety & Maintenance
5. SAFETY AND MAINTENANCE 5.1) Ear bud maintenance Before each use : Clean your ear thoroughly. After each use : Remove all remaining debris from the ear bud after each use. Ensure that the hole on the side of ear bud is also free from any debris. -
Page 16: Battery Maintenance
5.2) Battery maintenance Do not consistently discharge the battery completely before recharging as this may cause depletion of the batteries life. We suggest recharging goodHearing P1 regardless of its battery status before sleeping at night. Do not attempt to remove the battery as this may cause damage to the goodHearing P1 device or may cause injuries. - Page 17 5.3) LED Indicator status Solid RED : Charging Flashing BLUE : ON (working normally) Flashing RED and BLUE : goodHearing P1 is searching for Bluetooth devices to pair with. Flashing PURPLE : Connected to a device and outputting media audio.
-
Page 18: Additional Information
6. ADDITIONAL INFORMATION Keep the device out of reach for children. Do not attempt to open, fix, replace or remove any of the components. Avoid excessive volume levels and prolonged periods of use. Avoid using the device while you are sleeping. Keep the device in dry areas. -
Page 19: Faq
7. FAQ Question : No Sound Answer : Turn on the device Increase the volume Clean out the earphone caps Check if the earphone cable damages Recharge the device Question : Charging problems Answer : Check that the USB is connected correctly Ensure that the power supply is normal (wall outlet switch is on) Question : Can’t power on... - Page 20 Question : Is it compatible for both Android and iOS systems? Answer : Yes, is compatible for both Android and iOS systems. Question : There is a lag when I change from listening to media on my phone and back to the hearing aid function is this normal? Answers : Yes, there is a slight lag as it depends on the...
- Page 21 phones will have a default tone that the hearing aid will play as a ringtone. Question : There is still no sound on my SONY phone. Answers : Please turn off the following 3 sound settings. 1. Keyboard touch tone 2.
-
Page 22: Specification
8. SPECIFICATION Max. Output Sound Level Gain 45 ± 5 dB Continuous Use Up to 10 hours per charge Operating Temperature +10°C ~ +40°C Operating Humidity 30~85% RH Storage Temperatire -10°C ~ +60°C Storage Humidity 30~85% RH Dimension 45 x 33 x 14 mm Weight 22.4 g... -
Page 23: Warning And Reminder
9. WARNING AND REMINDER Do not listen for excessive time periods. Do not use the device at high volumes. Do not attempt to fix the unit yourself, take it to an authorized dealer. Avoid liquids near the device. Avoid overcharging the device for excessive time periods. - Page 24 Copyright © Digisine 2019.V.1.0...
