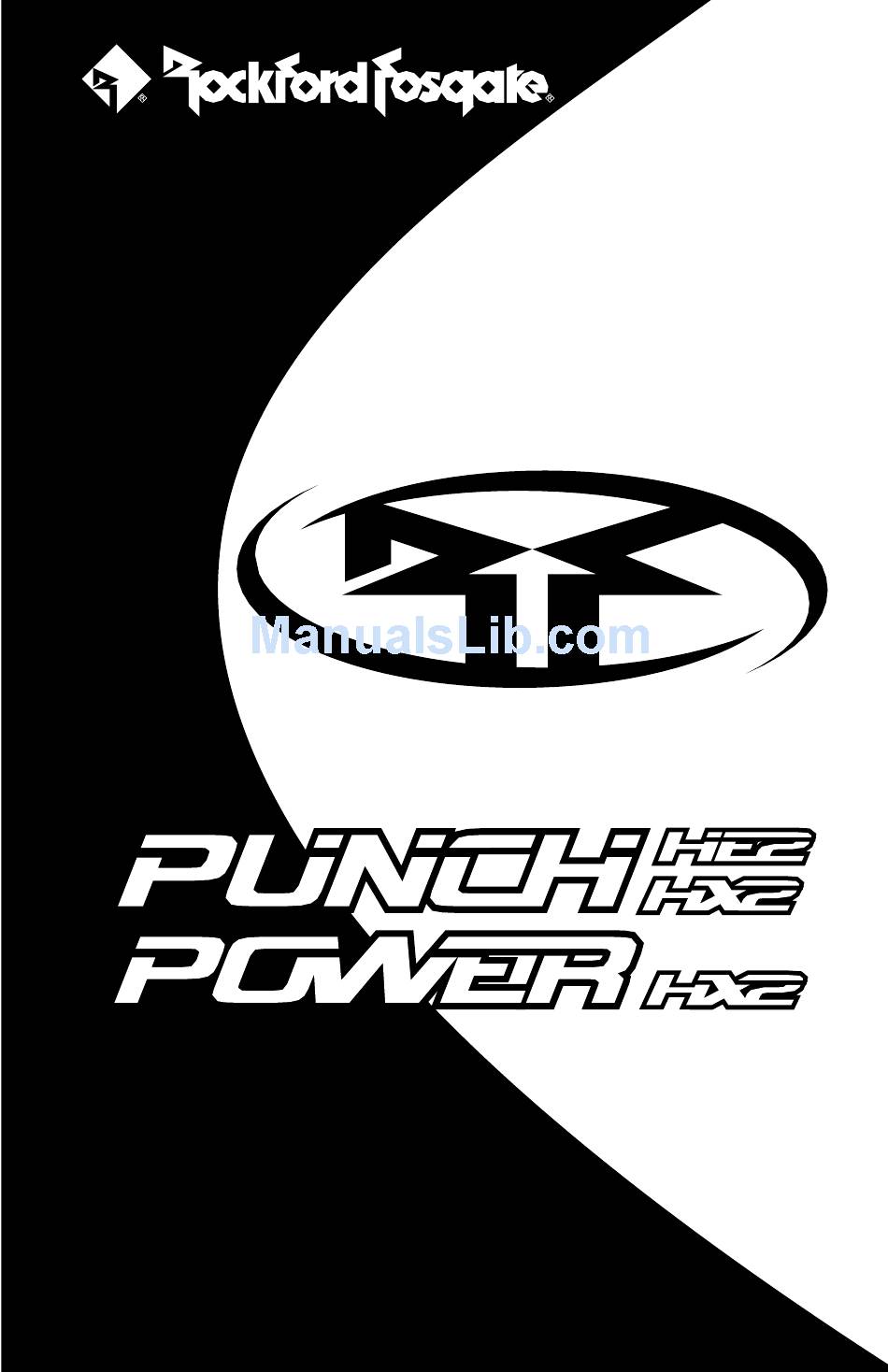

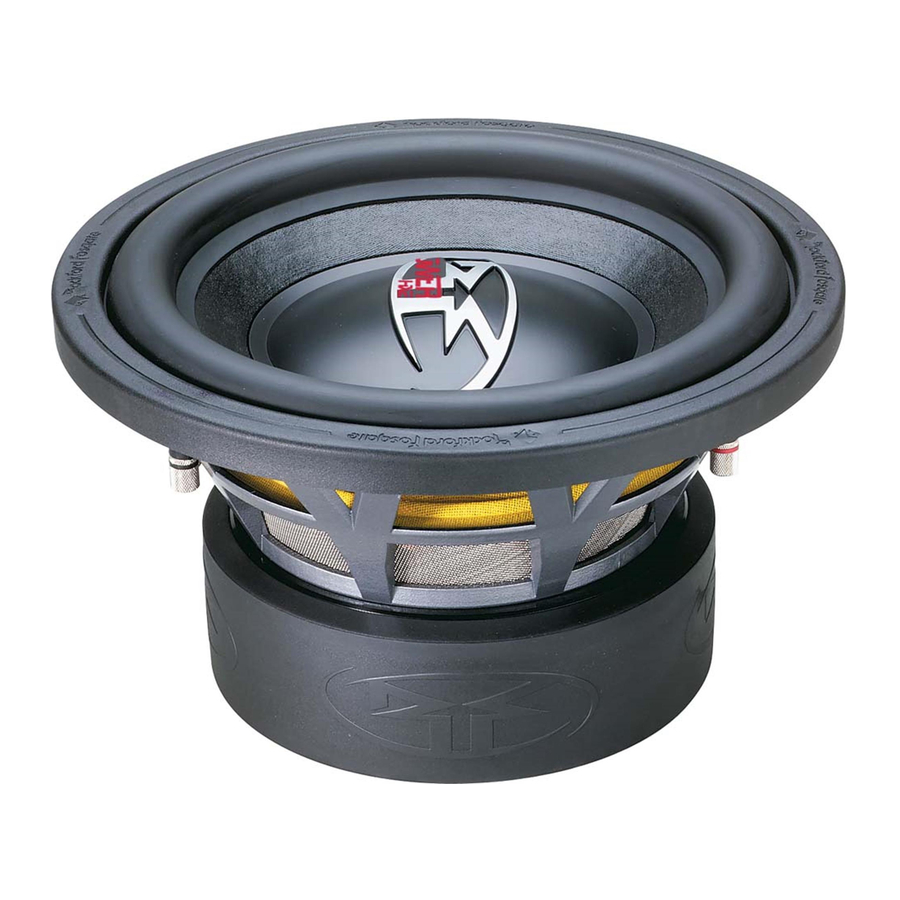

  • Page 1 RFP4208 RFP4108 RFP4210 RFP4110 Installation & RFP4212 RFP4112 Operation RFP4215 RFP4115 RFD2208 RFD2210 RFD2110 RFD2212 RFD2112 RFD2115 RFD2215 RFD3118 RFD3218 RFR3110 RFR3112 RFR3115 Dual Voice Coil Subwoofers Installation et fonctionnement Instalación y funcionamiento Einbau und Betrieb Installazione e funzionamento...

  • Page 2: Table Of Contents

    If, after reading your manual, you still have questions regarding this product, we recommend that you see your Rockford Fosgate dealer. If you need further assistance, you can call us direct at 1-800- 669-9899. Be sure to have your serial number, model number and date of purchase available when you call.

  • Page 3: Safety Instructions

    Installation Section of this manual. Other information can be located by using the Table of Contents. We, at Rockford Fosgate, have worked very hard to make sure all the information in this manual is current. But, as we are constantly finding new ways to improve our product, this information is subject to change without notice.

  • Page 4: Recomended Enclosures

    ECOMMENDED NCLOSURES This manual outlines two specific types of enclosures that provide distinctly different performance. This section is to help you decide which type is best for your application. SEALED ENCLOSURES Sealed enclosures are the simplest to build. The most important part of building a sealed enclosure is to make sure that the enclosure is airtight.

  • Page 5: Ventd Enclosures

    ECOMMENDED NCLOSURES VENTED ENCLOSURES Vented enclosures vary only from the sealed enclosure in that a vent or port is added to “tune” the enclosure. The enclosures recommended are designed for great overall performance. Larger boxes tend to be easy to tune to lower frequencies while medium and small boxes are easier to tune to higher frequencies.
  • Page 6 ECOMMENDED NCLOSURES Power HX2 10" Power HX2 12" Recommended Venteded 1.75ft (49.56L) Recommended Venteded 2.5ft (70.8L) Power HX2 15" Recommended Venteded 3.5ft (99.11L)

  • Page 7: Wiring Configurations

    IRING ONFIGURATIONS By varying the wiring configuration of your speakers you can create an impedance load to match your system. Since each voice coil of a DVC speaker carries its own impedance, altering the wiring configurations gives a range of options for impedance loads. Series, Parallel, or Series-Parallel wiring configurations are different techniques for wiring speakers that provide different loads.

  • Page 8: Building An Enclosure

    • BART Surround - Foam • Hyper extended pole piece • Basket - LX Stamped • Aero-vent pole piece Model - Punch HE2 DVC RFP4208 RFP4108 RFP4210 RFP4110 Nominal Impedance (ohms) 4 (2) 2 (2) 4 (2) 2 (2) Voice Coil Diameter-inch (mm) 2.0 (50.8)

  • Page 9: Specifications

    PECIFICATIONS Model - Punch HE2 DVC RFP4212 RFP4112 RFP4215 RFP4115 Nominal Impedance (ohms) 4 (2) 2 (2) 4 (2) 2 (2) Voice Coil Diameter-inch (mm) 2.5 (63.5) 2.5 (63.5) 2.5 (63.5) 2.5 (63.5) FS (Hz) 0.59 0.56 0.64 0.61 VAS-cu.ft. (liter) 2.94 (83.1) 2.94 (83.1) 6.10 (172.7)
  • Page 10 PECIFICATIONS Model - Punch HX2 DVC RFD2212 RFD2115 RFD22215 RFD3118 Nominal Impedance (ohms) 4 (2) 2 (2) 4 (2) 2 (2) Voice Coil Diameter-inch (mm) 3.0 (76.2) 3.0 (76.2) 3.0 (76.2) 4.0 (101.6) FS (Hz) 0.48 0.453 0.53 0.325 VAS-cu.ft. (liter) 2.65 (75) 6.39 (181) 5.76 (163)

  • Page 11: Limited Warranty Information

    This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase.

  • Page 12: International Instructions

    Rockford Fosgate Rockford Corporation 546 South Rockford Drive Tempe, Arizona 85281 U.S.A. In U.S.A., (480) 967-3565 In Europe, Fax (49) 8503-934014 In Japan, Fax (81) 559-79-1265 www.rockfordfosgate.com 12/02 B.M. Printed in U.S.A LIT12400...
