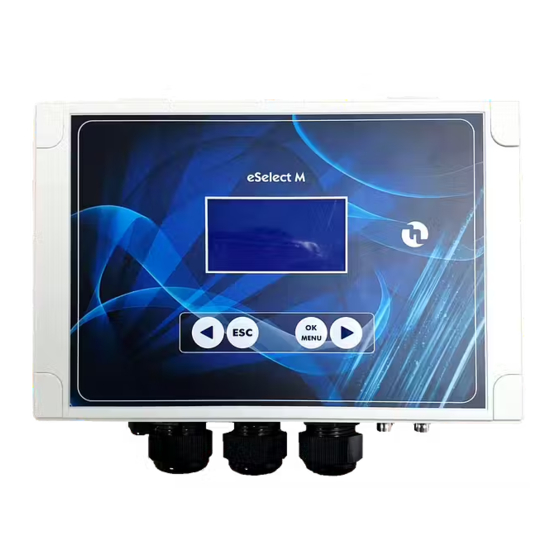

Summary of Contents for Etatron ESELECT M
- Page 1 Etatron GB Ltd, Newlin Business Park, Exchange Road, Lincoln, LN6 3AB...
- Page 2 Factory Reset eSelect M 1. From main screen press the OK button and using the right arrow button scroll until Select Menu SETTINGS is shown 2. Press the OK button followed by the right arrow and scroll until Factory Settings is shown (see image).
- Page 3 Setpoint Menu - eSelect M From main screen select OK to display the screen shown to the right. Use the arrow button to select the channel you wish to set the setpoint for. Press OK button to change the default setting and after changing press using left / right arrows press OK to confirm.
- Page 4 Setpoint Menu - eSelect M From main screen select OK to display the screen shown to the right. Use the arrow button to select the channel you wish to set the setpoint for. Press OK button to change the default setting and after changing press using left / right arrows press OK to confirm.
- Page 5 Calibration Menu (pH) - eSelect M From main screen select OK and using the right arrow Keep scrolling until screen on the right is shown. Pressing the right arrow button again will move to the Next channel or channels if you have eSelect M3.
- Page 6 Calibration Menu (Rx) - eSelect M From main screen select OK and using the right arrow Keep scrolling until screen on the right is shown. Press the OK button to begin ZERO calibration. Zero calibration can be carried by either using a blanking plug or by short circuiting the BNC connector.
- Page 7 Calibration Menu (CL) - eSelect M From main screen select OK and using the right arrow Keep scrolling until screen on the right is shown. Press the OK button to begin calibration. Take a sample of water from the flow cell and...
- Page 8 4-20mA Menu - eSelect M From main screen select OK and using the right arrow Keep scrolling until screen on the right is shown. Press the OK button x 2 to select either Dosing Setpoint or mA device. Dosing setpoint is the recommended option.
- Page 9 4-20mA Menu - eSelect M Window Width sets the distance from the setpoint where the 4-20mA mode starts and stops. Press right arrow to move to Overdosing to set the required time, eg the permitted time to meet the required setpoint. If the set time is reached the instrument outputs will be shut and the relay output can then be set to trigger an alarm if required.
