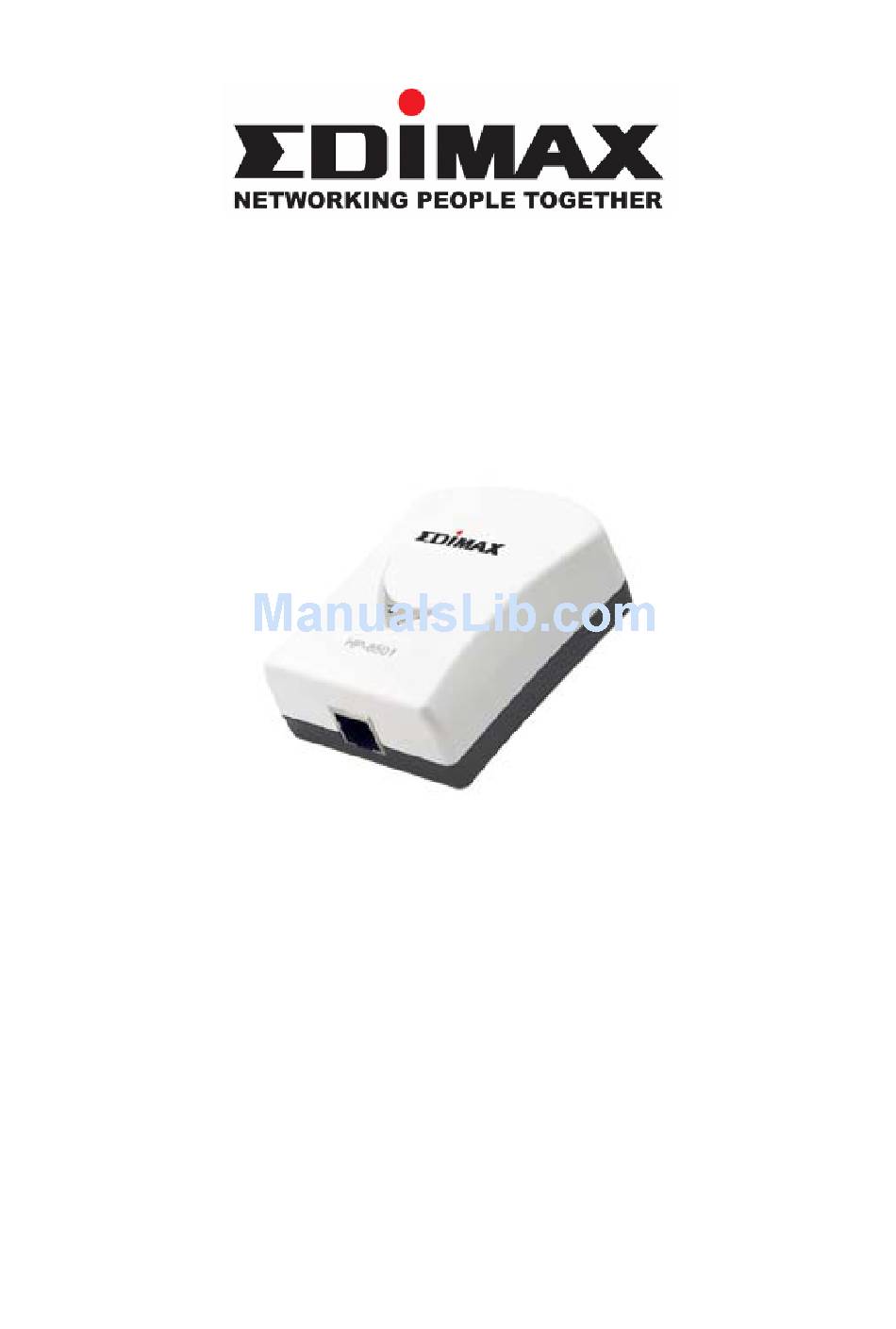

EDIMAX HP-8501
Quick Installation Guide
HP-8501
Powerline Ethernet Bridge
Quick Installation Guide
1
Advertisement
Related Manuals for Edimax HP-8501
Summary of Contents for Edimax HP-8501
- Page 1 EDIMAX HP-8501 Quick Installation Guide HP-8501 Powerline Ethernet Bridge Quick Installation Guide...
- Page 2 Copyright© by Edimax Technology Co, LTD. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic,...
-
Page 3: Package Contents
Note：CD-ROM with the management Utility could help you to manager all of the HP-8501 in the LAN. The Utility is not necessary when you use the internet via HP-8501. If you need to know the function of Utility , you can study the manual in the CD-ROM. - Page 4 Application: Please setup your HP-8501 as the following map . One HP-8501 connect with ADSL modem or IP share . The other HP-8501( You can use another device which supports powerline) connect with your PC .
- Page 5 If other utilities are installed, uninstall them and restart before installing this software. To install, insert the HP-8501’s CD-ROM into the computer's CD-ROM drive. The Setup utility shall run automatically. Alternatively this can also be done manually by double clicking the setup.exe file on the CD.
- Page 6 After you finish the Utility installation , you can double click the following icon to enable the Utility This screen shot shows a Powerline Ethernet device( HP-8501 ) connected as a local device. Remote Powerline Ethernet devices as follows： Item...
- Page 7 EDIMAX HP-8501 Quick Installation Guide A user may change the password by clicking ‘Enter Password’ button. To set the Password of the device (required when creating a secured private network), first select the device by clicking on its name in the lower panel and then click on the ‘Enter Password’ button .A dialog box will appear as shown in Figure 2 for you to type the password.
- Page 8 EDIMAX HP-8501 Quick Installation Guide allows user to enter both device name and the password. A confirmation box will appear if the password was entered correctly and the device was found. If a device is not found, the user will be prompted and instructions to this problem will be shown, too.
- Page 9 EDIMAX HP-8501 Quick Installation Guide Figure 4: Main tab of the configuration utility If you want to know the detail setting of the Utility , please study user’s manual in the CD-ROM . Warning (1) Simply plug into a power outlet and do not use a power strip or UPS with the wall mount device (2)This is a class A product.
