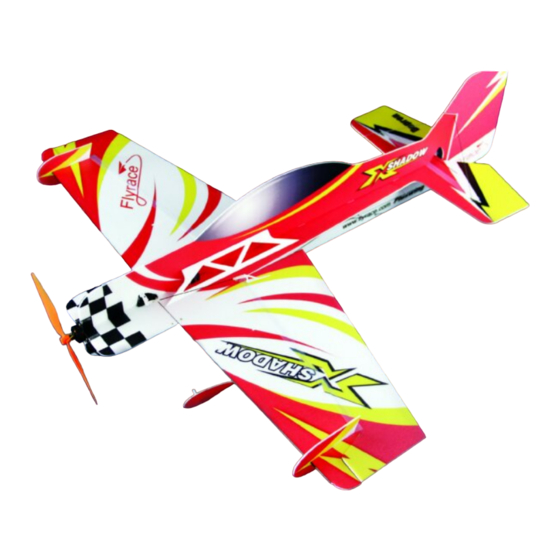

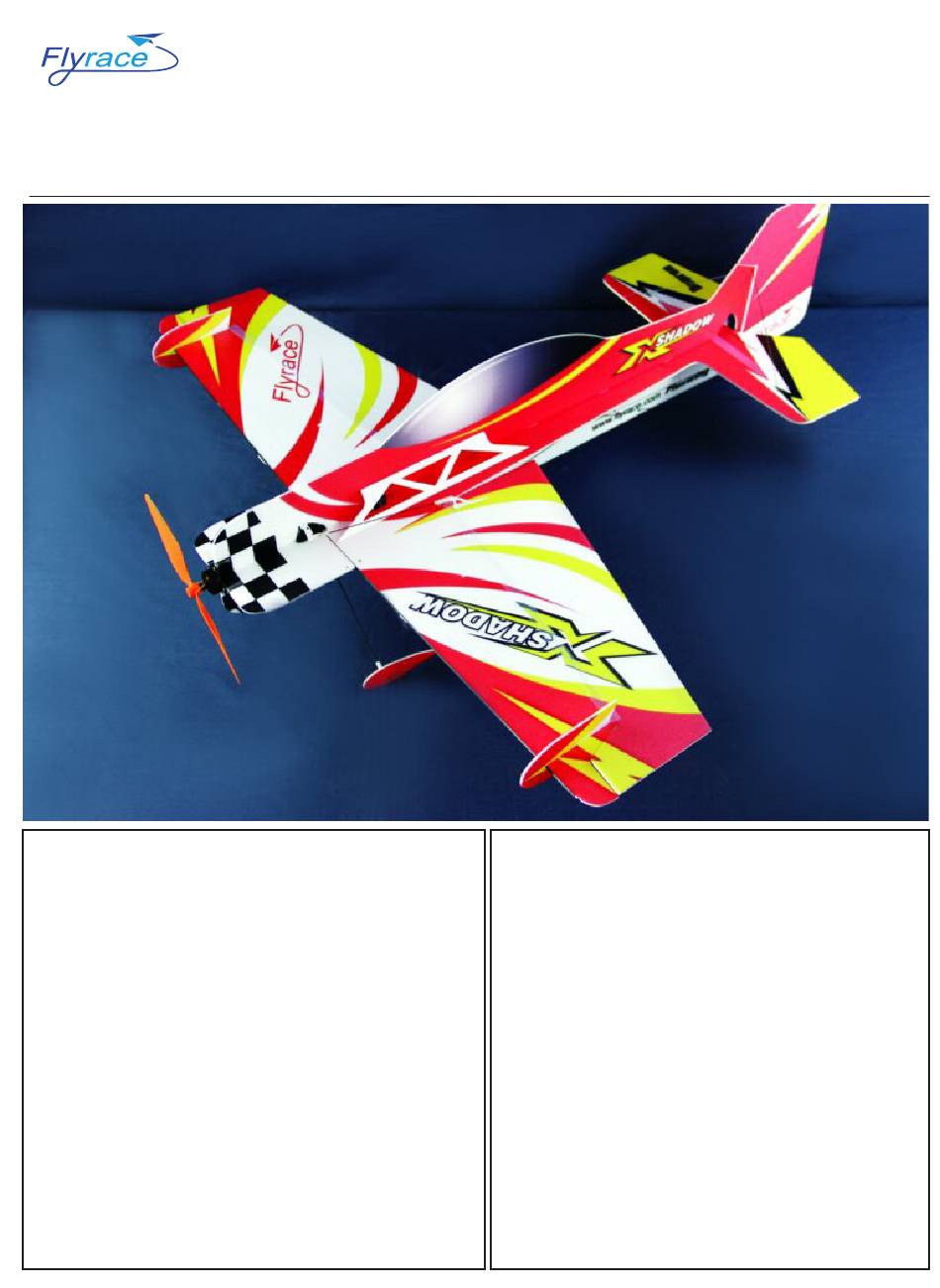

Shadow Depron Aero
Specifications
Fuselage length: 853mm(33.5in)
Wingspan: 820mm(32.3in)
Flying Weight: 120-150g(with battery)
Additional Required Equipment
Motor:1804-2204
ESC: 6A
Propeller: 8043
Aileron Servo: 8-9g
rudder servo and elevator servo：4-5g
Radio:4/more channel
Receiver: 4/more channel
Battery charger
Battery: 7.4V 200 mAh -400mAh Li-po
Advantage Points
·Genuine 3mm Depron Aero from Europe for best flight performance
·Lightweight carbon fiber truss system virtually eliminates flex
·Minimal assembly required flight ready in as little as 2 hours
·Ideal for indoor flight and capable of outdoor flight in low winds
·Gorgeous and vibrant printed pattern
Introduction
Thank you for purchasing the Shadow Depron-Aero, it belongs to our
Pluswing Series which has the best design and the most advanced
technology. Shadow is made of Depron-Aero, the wonderful foam for
airplanes models, with this ideal material Shadow is very flexible in the air, it
can achieve many difficult 3D moves. The Shadow was reinforced with the
Instruction Manual
best carbon rods, so it provides precise and solid feel. With flyrace's
advanced design Shadow Depron-Aero can be easily and quickly built.
The assembly instruction can help to assemble your new airplane in the
shortest possible time. You can get many basic tips from assembling a
new Plane. Please assemble the model according to the instructions as
below.
Required Tools and Adhesives
(not included in the kit)
5 Minute Epoxy Resin
Depron Friendly Glue
Uhu Por
#0 and #1 Phillips Head Screwdrivers
1.5 mm Hex Wrench
Adjustable Wrench
Wire Cutters
Z-Bend Pliers
Needle Nose Pliers
Modeling Knife
Scissors
Electric or Hand Drill
Assorted Drill Bits
Straight Edge Ruler
Pencil
Builder's Triangle
220 Grit Sandpaper with Sanding Block
Masking Tape
Pluswing Series
Paper Towels
Rubbing Alcohol
Epoxy Mixing Sticks
Epoxy Mixing Cups
Advertisement
Related Manuals for Flyrace Pluswing Series
Summary of Contents for Flyrace Pluswing Series
- Page 1 Pluswing Series Shadow Depron Aero Instruction Manual Specifications best carbon rods, so it provides precise and solid feel. With flyrace’s Fuselage length: 853mm(33.5in) advanced design Shadow Depron-Aero can be easily and quickly built. Wingspan: 820mm(32.3in) The assembly instruction can help to assemble your new airplane in the Flying Weight: 120-150g(with battery) shortest possible time.
- Page 2 Kit Contents 1.Body parts included in the packing A.Fuselage B.Vertical stabilizer C.Wing, Aileron, winglet D.Side fuselage E.Nose of the fuselage F.Horizontal stabilizer G.Wheel covers H.Round doublers I.Fuselage reinforcing strips J.Wing reinforcing strips K.T-Pins L.Wing fence for the wing tip 2.Parts included in the packing A.
- Page 3 Instruction Steps 1. Glue the front edge stay bar onto the front edge of the wing. 2.Fix the side fuselage and nose onto the wing with some foam friendly C/A, Please make sure they are horizontal, no distortion. 3.Insert the carbon fiber strip into the pre-cut hole on the horizontal stabilizer. 4.Fix the horizontal stabilizer to the fuselage with 3M magic tape.
- Page 4 7.Fix the lower vertical fuselage onto the horizontal fuselage with some foam 8.As shown, fix the base of the fuselage stay bar vertically on the fuselage. friendly C/A, Please use the T-Pins to make sure they are perpendicular before gluing. 9.Glue the wing reinforcing strips on the wing, then place the wing and fuselage, 10.Fix the other stay bars on the fuselage as shown in the picture.
- Page 5 12.Install the 8 ABS-brackets for push bars, and then insert them into the pre-cut holes on the fuselage as picture shown. 13.Glue the tail fin and two stay bars on the end of lower 14.Install the Aileron servo arms as the pictures shown. vertical fuselage.
- Page 6 16.Glue the upper vertical fuselage onto the horizontal fuselage with some foam 17.Fix the vertical stabilizer onto the fuselage with some 3M magic tape. friendly C/A, use the T-Pins to make them perpendicular, no distortion. 18.Fix the control horns into the pre-cut slots on the aileron with some friendly C/A, 19.Glue the fuselage reinforcing strips on the fuselage.
- Page 7 21.Insert the control horns into the pre-cut holes on the horizontal stabilizer， and then fix the coupling heads on the elevator servo arm and control horn, at last install the elevator push-pull rod. 22.Fix the carbon stay bars on end of the upper fuselage as picture shown. 23.Glue the motor mount onto the nose of the fuselage, and then fix them with glass fiber tape.
- Page 8 R/C pilots who would be willing to help you with your first few flights. Although this is an ARF(Almost- Ready-to-Fly)kit, it does have some construction features that can be challenging to the less experienced modeler. Copyright 2011 Flyrace® If you encounter difficulty in any construction sequence, please feel free to contact one of our technicians, we stand WWW.FLYRACE.COM...
