- Page 1 MICROBIOLOGICAL INCUBATORS SMI FAMILY Installation - Operation Manual SMI2s SMI6s SMI7s SMI11s SMI12s...

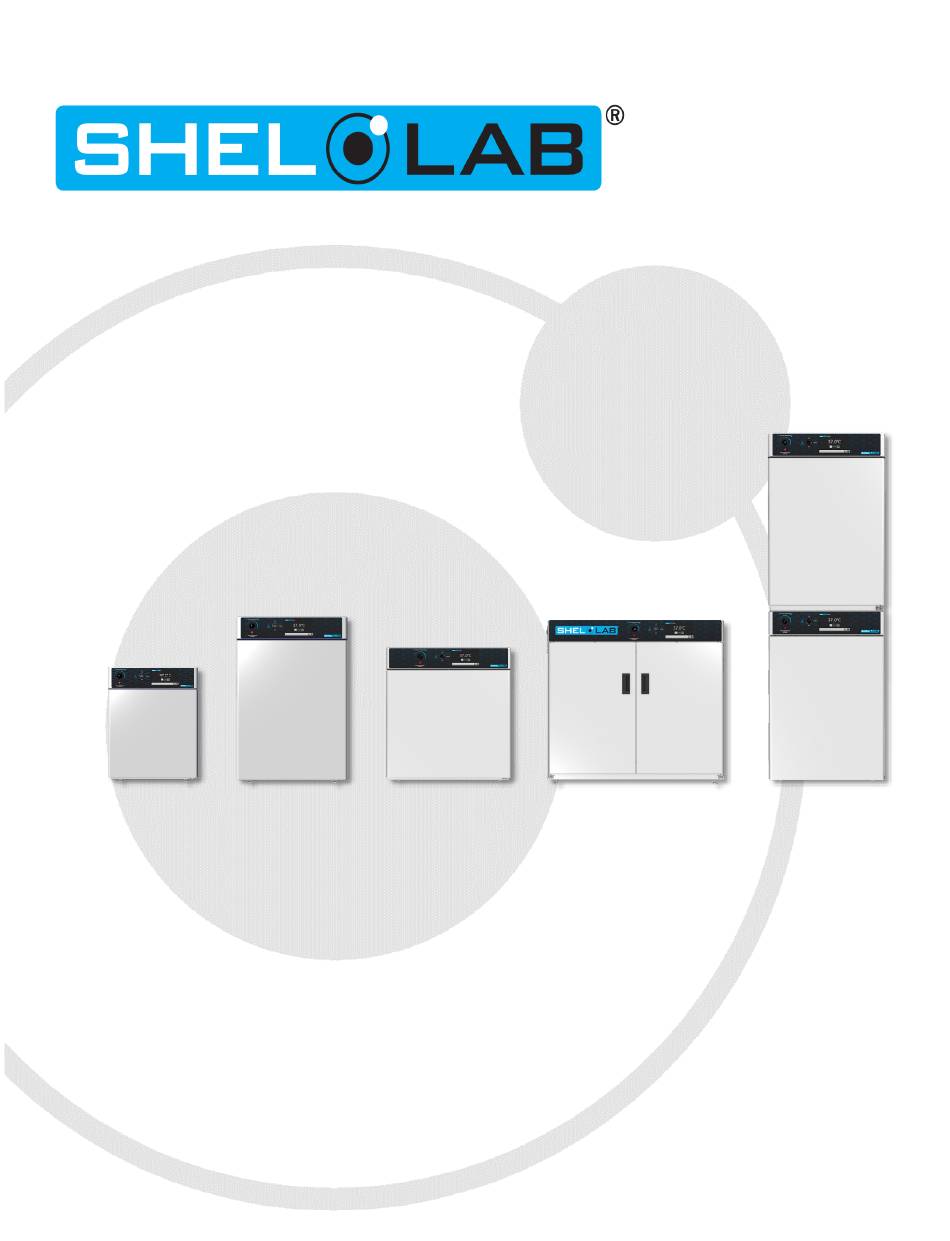

- Page 2 Pictured on the front cover, left to right: SMI2, SMI6, SMI7, SMI11, SMI12 Note: The SMI12 and SMI12-2 incubators each require two power outlets to plug into. The SMI2, SMI6, SMI7, SMI11, and SMI12 incubators require 100 – 120-volt NEMA 5-15R power outlets. The SMI2-2, SMI6-2, SMI7-2, SMI11-2, and SMI12-2 incubators require 220 –...
- Page 3 SMI Microbiological Incubators 100 – 120 Voltage Models: SMI2 SMI6 SMI7 SMI11 SMI12 220 – 240 Voltage Models: SMI2-2 SMI6-2 SMI7-2 SMI11-2 SMI12-2 Part Number (Manual): 4861825 Revised: June 15, 2021 Sheldon Part ID Numbers: Model SMI2 SMI6 SMI7 SMI11 SMI12 Part ID SLM222...
-
Page 4: Table Of Contents
TABLE OF CONTENTS MODEL CERTIFICATIONS............................7 Electromechanical Safety Testing ............................. 7 CE Compliant ................................... 7 ISO Certified Manufacturer ..............................7 INTRODUCTION ..............................9 Read this Manual ..................................9 Safety Considerations and Requirements ........................9 Contacting Assistance ................................ 10 Manufacturing Warranty ..............................10 Engineering Improvements ............................... - Page 5 Minimizing Contamination Exposure ..........................51 Storing the Incubator ................................51 Door Components ................................51 Electrical Components ................................ 51 Calibrating the Temperature Display ..........................52 UNIT SPECIFICATIONS ............................57 Weight ......................................57 Dimensions .....................................57 Capacity ....................................58 Shelf Capacity by Weight ..............................58 Temperature ..................................
- Page 6 TABLE OF CONTENTS P a g e...
-
Page 7: Model Certifications
OSHA-recognized NRTL, and an EU Notified Body. CE C OMPLIANT These unit models meet all required electromagnetic compatibility (EMC), EU low-voltage, and RoHS directives. ISO C ERTIFIED ANUFACTURER SHEL LAB is a brand of Sheldon Manufacturing, INC, an ISO 9001 certified manufacturer. P a g e... - Page 8 CERTIFICATIONS P a g e...
-
Page 9: Introduction
INTRODUCTION Thank you for purchasing a SHEL LAB incubator. We know you have many choices in today’s competitive marketplace when it comes to constant temperature equipment. We appreciate you choosing ours. We stand behind our products and will be here if you need us. -
Page 10: Contacting Assistance
Therefore, some changes, modifications, and improvements may not be covered in this manual. If your unit’s operating characteristics or appearance differs from those described in this manual, please contact your SHEL LAB dealer or customer service representative for assistance. -
Page 11: Reference Sensor Device
INTRODUCTION EFERENCE ENSOR EVICE Must be purchased separately Temperature Reference Temperature Calibrations If you are not using a third-party service, a reference sensor device is required for calibrating your unit’s temperature display. See the Calibrating the Temperature Display procedure on page 52 for more information. •... - Page 12 INTRODUCTION 12 | P a g e...
-
Page 13: Receiving Your Unit
RECEIVING YOUR UNIT NSPECT THE HIPMENT Safe delivery becomes the responsibility of the carrier when a unit leaves the factory. Damage sustained during transit is not covered by the manufacturing defect warranty. When you receive your unit, inspect it for concealed loss or damage to its interior and exterior. If you find any damage to the unit, follow the carrier’s procedure for claiming damage or loss. -
Page 14: Orientation Images
RECEIVING RIENTATION MAGES SMI2s *SMI2-2 Chamber Power Outlet, CEE7 220 – 240 Volt Control Panel Control Panel Touch Display Outer Door Seal Data Plate SMI2 Chamber Power Outlet, NEMA 5-15R 100 – 120 Volt* Chamber Inner Door Latch Incubation Chamber Chamber Inner Door Seal Chamber Outer Door 14 |... - Page 15 RECEIVING SMI6s Front *SMI6-2 Chamber Power Outlet, CEE7 220 – 240 Volt Control Panel Chamber Inner Door Outer Door Seal Touch Display Data Plate SMI6 Chamber Power Outlet, NEMA 5-15R 100 – 120 Volt* Chamber Inner Door Seal Incubation Chamber Chamber Outer Door 15 | P a g e...
- Page 16 RECEIVING SMI7s *SMI7-2 Chamber Power Outlet, CEE7 220 – 240 Volt Control Panel Touch Display Outer Door Seal SMI7 Chamber Power Outlet, Data Plate NEMA 5-15R 100 – 120 Volt* Chamber Inner Door Seal Chamber Inner Door Latch Chamber Outer Door 16 | P a g e...
- Page 17 RECEIVING SMI11s Front *SMI11-2 Chamber Power Outlet, CEE7 220 – 240 Volt SMI11 Chamber Power Outlet, NEMA 5-15R 100 – 120 Volt* Chamber Inner Door – Right Inner Chamber Door Seal Control Panel Data Plate (interior) Chamber Inner Door – Left Chamber Outer Door –...
- Page 18 RECEIVING SMI12s *SMI12-2 Chamber Power Outlet, CEE7 220 – 240 Volt Touch Display Chamber Outer Door Seal Top Incubator Control Panel SMI12 Chamber Power Outlet, NEMA 5-15R 100 – 120 Volt* Chamber Inner Door Latch Top Incubator SMI12 Data Plate Bottom Incubator Control Panel Bottom Incubator Note: The SMI12 consists of two SMI6 incubators secured to a stacking brace.
- Page 19 Right Side Power Cord Inlet with Fuse Data Ports Holder (Fuse Holder Cover Removed) 24-volt Expansion Port for SHEL LAB Accessories Left Side – 220 to 240 Volt Incubators Fuse Holder for Second Fuse Chamber Access Port 19 | P a g e...
-
Page 20: Recording Data Plate Information
RECEIVING ECORDING LATE NFORMATION Record the unit model number, serial number, part number, and part ID below for future reference. Customer Support needs this information to provide accurate help during support calls and emails. SMI2s, SMI6s, SMI7s • The data plate is located on the inside of the incubation chamber door in the top right corner. -
Page 21: Installation
INSTALLATION NSTALLATION ROCEDURES HECKLIST For installing the unit in a new workspace location. Pre-Installation Check that the required ambient conditions for the unit are met, page 22. Check that the spacing clearance requirements are met, page 22. Unit dimensions may be found on page 57. •... -
Page 22: Required Ambient Conditions
INSTALLATION EQUIRED MBIENT ONDITIONS These units are built for use indoors at room temperatures between 15°C and 30°C (59°F and 86°F), at no greater than 80% Relative Humidity (at 25°C / 77°F). The ambient temperature should not change by 2°C (3.6°F) or more during operation. The units are rated to operate in a Pollution Degree 2 environment. Maximum Altitude: 2000 meters (6562 feet) Operating outside these conditions may affect the unit temperature performance. -
Page 23: 100 - 120 Volt Power Requirements
INSTALLATION Note: See the next page for the 220-volt incubators. 100 – 120 V OWER EQUIREMENTS Applies to: SMI2, SMI6, SMI7, SMI11, SMI12 When selecting a location for the unit, verify each of the following requirements is satisfied. Power Source: The power source must match the voltage and amperage requirements listed on the unit data plate. -
Page 24: 220 - 240 Volt Power Requirements
INSTALLATION 220 – 240 V OWER EQUIREMENTS Applies to: SMI2-2, SMI6-2, SMI7-2, SMI11-2, SMI12-2 When selecting a location for the unit, verify each of the following requirements is satisfied. Power Source: The power source must match the voltage and amperage requirements listed on the unit data plate. -
Page 25: Lifting And Handling
INSTALLATION IFTING AND ANDLING The unit is heavy. Use appropriate lifting devices that are sufficiently rated for these loads. Follow these guidelines when lifting the unit. Lift the unit only from its bottom surface. • Doors, handles, and knobs are not adequate for lifting or stabilization. •... -
Page 26: Install The Incubator
INSTALLATION NSTALL THE NCUBATOR Install the unit in a workspace location that meets the criteria discussed in the previous entries of the Installation chapter. EIONIZED AND ISTILLED ATER Do not use deionized water to clean the unit, even if DI water is readily available in your laboratory. The use of deionized water may corrode metal surfaces and voids the manufacturing •... -
Page 27: Install The Shelving
INSTALLATION NSTALL THE HELVING Install 2 shelf mounting rails. 2. Verify both mounts are level with one another and securely seated. 3. Place 1 shelf on the installed rails. CCESS Always leave the access port cap in place, except when introducing sensor probes into the chamber. Removing the cap during normal operations can adversely impact temperature stability and uniformity. - Page 28 INSTALLATION 28 | P a g e...
-
Page 29: Graphic Symbols
GRAPHIC SYMBOLS The unit is provided with graphic symbols on its exterior. These identify hazards and adjustable components as well as important notes in the user manual. Symbol Definition Consult the user manual Consulter le manuel d'utilisation Temperature display Indique l'affichage de la température Over Temperature Limit system Thermostat température limite contrôle haute AC Power... - Page 30 SYMBOLS 30 | P a g e...
-
Page 31: Control Overview
CONTROL OVERVIEW Over Temperature Limit (OTL) This graduated dial sets the mechanical heating cut-off for the Over Temperature Limit system (OTL). The OTL helps prevents unchecked heating of the chamber in the event of an electronics failure or external heat spike. For details, please see the Over Temperature Limit System description in the Theory of Operations (page 33). - Page 32 CONTROL Alarm Mute Button Only visible when an alarm is active. When an active alarm is muted, the red background disappears. Temperature Setpoint Button Tap to set the incubation chamber operating temperature. Heating Indicator This icon functions as a two-part display. The oval at the bottom is an on / off indicator, illuminating green when the incubator controller calls for power to the heating elements.
-
Page 33: Operation
OPERATION HEORY OF PERATION Note: Each incubator chamber in a SMI12 is independently powered and heated. Heating When powered, the incubator heats to and maintains a user-selected target setpoint in the incubation chamber. The incubator senses the chamber air temperature using a solid-state probe mounted on the chamber interior wall. -
Page 34: Put The Incubator Into Operation
OPERATION UT THE NCUBATOR INTO PERATION Perform the following procedures and steps to put the unit into operation after installing it in a new workspace environment. Reminder: All procedures in the Installation chapter must be carried out before putting the unit into operation. ... -
Page 35: Set The Date And Time
OPERATION ET THE ATE AND The incubator date and time are used for logging temperature, event, and diagnostic information. 1. From the homepage open the Settings Menu. Tap the Settings gear button. 2. Open the Date and Time Menu. Tap the Date and Time clock button. 3. -
Page 36: Adjust The Temperature Setpoint
OPERATION DJUST THE EMPERATURE ETPOINT Note: Each SMI12 incubation chamber temperature is set separately The incubator comes from the factory set to 37°C. Before starting this procedure, turn the OTL dial clockwise to its maximum setting, if not already set at max. This prevents the heating cutoff system from interfering with this procedure. -
Page 37: Adjusting The Temperature Deviation Alarm
OPERATION DJUSTING EMPERATURE EVIATION LARM Note: The alarms for each incubation chamber must be set independently for SMI12s. The incubator comes with the deviation alarm enabled set to activate if the chamber temperature deviates from the setpoint by ±1°C for 1 minute or longer. See page 41 for a description of operating conditions that will stop the alarm from activating. -
Page 38: Set The Over Temperature Limit (Otl)
OPERATION Note: Test the OTL system at least once per year to verify its functionality. Failure to set the OTL voids the manufacturing defect warranty if over-temperature damage occurs. (OTL) ET THE EMPERATURE IMIT This procedure sets the mechanical heating cutoff to approximately 1˚C above the current chamber temperature. -
Page 39: Passcode Locking The Settings
OPERATION ASSCODE OCKING THE ETTINGS This procedure locks the temperature setpoint and other settings with a numeric code of your choosing. Users will be prompted to enter the code when attempting to change the settings of a locked unit. 1. Open the Service Functions menu. 2. -
Page 40: Changing Locked Settings
OPERATION HANGING OCKED ETTINGS If the settings are passcode locked, users will be prompted to enter the passcode when attempting to change settings. After entering the code, the settings remain unlocked until the display is returned to the homepage. Tap the right arrow Save button Tap the X button to return to the previous screen if an invalid passcode has been entered. -
Page 41: Alarms And Muting
OPERATION LARMS AND UTING The incubator comes with two types of digital alarms: Door open and temperature deviation. Door Alarms Door Open Notification Door open 0 – 60 seconds • Visual notification only • Door Open Warning Door open 61 – 120 seconds •... -
Page 42: Loading Samples
OPERATION Muting the Audible Alert Tapping the mute icon mutes the currently active alarm. The audible alert remains silent until the alarm deactivates or until • another alarm activates. The mute icon disappears when the alarm deactivates. Alarm Muted Deactivating an Alarm Alarms deactivate when the unit returns to normal operating conditions. -
Page 43: Power And Memory
OPERATION OWER AND EMORY The incubator stores the data log, temperature setpoint, and other settings in non-volatile memory. The unit retains log data and its settings indefinitely in the event of a power outage. The incubator logs the chamber temperature and setpoint once per minute. It also logs events. Alarm activations are logged the moment the alarm is activated. -
Page 44: Data Log Copy And Export
OPERATION OPY AND XPORT The incubator copies and then exports user-specified date ranges of the log as human-readable .CSV spreadsheet files. Copying and exporting requires a USB A thumb drive. Note: This process does not erase log data on the incubator. 1. - Page 45 OPERATION 4. Optional: Change the autogenerated filename. The autogenerated filename consists of the model, unit serial numbers, start date-and-time • block, and the end date-and-time block. Use the keypad to enter a new filename and then save. • Note: Entering the file name of a data log file already on the USB drive appends the new date range to the existing spreadsheet rather than overwriting the original file or any data in it.
-
Page 46: Real Time Data Outputs
Note: The jack ports output once every 60 seconds. The USB port is only for copying and exporting the data log. It does not output data in real time. CCESSORY XPANSION This 24-volt port powers and supports SHEL LAB accessories. Only plug in devices specifically authorized for this port. UMIDIFYING THE NCUBATOR Long-term use of a large water container, such as a humidifier pan, will create excess water vapor in the unit and can damage the electrical components of an SMI incubator. -
Page 47: Condensation And The Dew Point
OPERATION ONDENSATION AND THE OINT Relative humidity inside the incubation chamber should never be allowed to exceed 80% at 25°C. Exceeding this threshold will likely result in condensation and leaks around the incubator and may cause corrosion damage if allowed to continue for any significant length of time. Condensation takes place whenever the humidity level in the incubation chamber reaches the dew point. - Page 48 OPERATION 48 | P a g e...
-
Page 49: User Maintenance
USER MAINTENANCE Warning: Disconnect this unit from its power supply prior to performing maintenance or services. Avertissement: Débranchez cet appareil de son alimentation électrique avant d'effectuer la maintenance ou les services. LEANING AND ISINFECTING If a hazardous material or substance has spilled in the unit chamber, immediately initiate your site Hazardous Material Spill Containment protocol. - Page 50 MAINTENANCE Cleaning Recommendations Keep the following in mind when cleaning the unit chamber and body. Always disconnect the unit from its power supply. • Remove all removable accessory components such as shelving if permitted by your • laboratory protocol. Clean the unit with a mild soap and water solution, including all corners. •...
-
Page 51: Minimizing Contamination Exposure
MAINTENANCE INIMIZING ONTAMINATION XPOSURE Suggestions for minimizing exposure of the incubator chamber to potential contaminants. Maintain a high air quality in the laboratory workspaces around the incubator. • Avoid placing the incubator near sources of air movement such as doors, air vents, or high •... -
Page 52: Calibrating The Temperature Display
MAINTENANCE ALIBRATING THE EMPERATURE ISPLAY Note: Performing a temperature display calibration requires a temperature reference device. Please see the Reference Sensor Device topic on page 11 for the device requirements. Note: Each SMI12 incubation chamber must be independently calibrated to its temperature display. Temperature calibrations are performed to match the unit temperature display to the actual air temperature inside the unit chamber. - Page 53 MAINTENANCE 5. The unit cannot be accurately calibrated until it is thermally stabilized at the setpoint temperature. Wait until the following conditions have been met. The incubator must operate for at least 8 hours prior to conducting a calibration. • The temperature is considered stabilized when the incubation chamber has operated •...
- Page 54 MAINTENANCE Temperature Calibration Continued 2. Open the Calibrate Temperature Menu. a. Tap the Settings button. b. Tap the Temperature Control button. Tap the Calibrate button. 3. Adjust the temperature calibration value. a. Use the arrow buttons to match the Reference Value on the controller to the temperature of the reference device.
- Page 55 MAINTENANCE Temperature Calibration Continued 4. Return the display to the homepage. a. Tap the left arrow button twice to return to the homepage. 5. Allow 1 hour for the incubator temperature to stabilize. Wait 1 hour after the incubator has cooled or heated to the temperature setpoint. •...
- Page 56 MAINTENANCE Temperature Calibration Continued 6. Compare the reference device and display temperature readings. Unit in Calibration Reference Device Further Calibration Required Reference Device If the reference device and the chamber temperature display readings are now the same or • the difference falls within the range of your protocol, the incubator is now calibrated for temperature.
-
Page 57: Unit Specifications
UNIT SPECIFICATIONS These incubators are 100 – 120 volt units. Please refer to the unit data plate for individual electrical specifications. Technical data specified applies to units with standard equipment at an ambient temperature of 25°C and at nominal voltage. The temperatures specified are determined in accordance with factory standards following DIN 12880 respecting the recommended wall clearances of 10% of the height, width, and depth of the inner chamber. -
Page 58: Capacity
SPECIFICATIONS APACITY Model Cubic Feet Liters 56.3 SMI2s 166.0 SMI6 184.0 SMI7 10.9 309.0 SMI11 11.7 332.0 SMI12 HELF APACITY BY EIGHT Model Per Shelf * Total ** Max. Shelves per Unit SMI2s 35.0 lb / 15.9 kg 70.0 lb / 31.8 kg SMI6 35.0 lb / 15.9 kg 105.0 lb / 47.6 kg... -
Page 59: Power
SPECIFICATIONS OWER 100 – 120 Volt Models Model Voltage Amperage Frequency SMI2 100 – 120 50/60 Hz SMI6 100 – 120 50/60 Hz SMI7 100 – 120 50/60 Hz SMI11 100 – 120 10.0 50/60 Hz SMI12 100 – 120 12.0 (6.0 each chamber) 50/60 Hz 220 –... - Page 60 SPECIFICATIONS 60 | P a g e...
-
Page 61: Parts List
Accessories and replacement parts can be ordered online at parts.sheldonmfg.com. If the required item is not listed online, or if you require assistance in determining which part or accessory you need contact SHEL LAB by emailing parts@sheldonmfg.com or by calling 1-800-322- 4897 ext. 3 or (503) 640-3000 ext. 3. - Page 62 P.O. Box 627 Cornelius, OR 97113 support@sheldonmfg.com sheldonmanufacturing.com 1-800-322-4897 (503) 640-3000 FAX: 503 640-1366...
