Edimax EW-7317UHg Quick Install Manual
Edimax EW-7317UHg Quick Install Manual

Edimax EW-7317UHg Quick Install Manual

802.11g wireless lan high-gain usb 2.0 adapter
Hide thumbs Also See for EW-7317UHg:

Advertisement

Quick Links

802.11g Wireless LAN
High-Gain USB 2.0 Adapter
Q
u
i
c
k
I
n
s
t
a
l
l
a
t
i
o
n
G
u
i
d
e
Q
u
i
c
k
I
n
s
t
a
l
l
a
t
i
o
n
G
u
i
d
e
Version 1.0 January, 2006
0

Advertisement

loading
Need help?

Need help?

Do you have a question about the EW-7317UHg and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Edimax EW-7317UHg

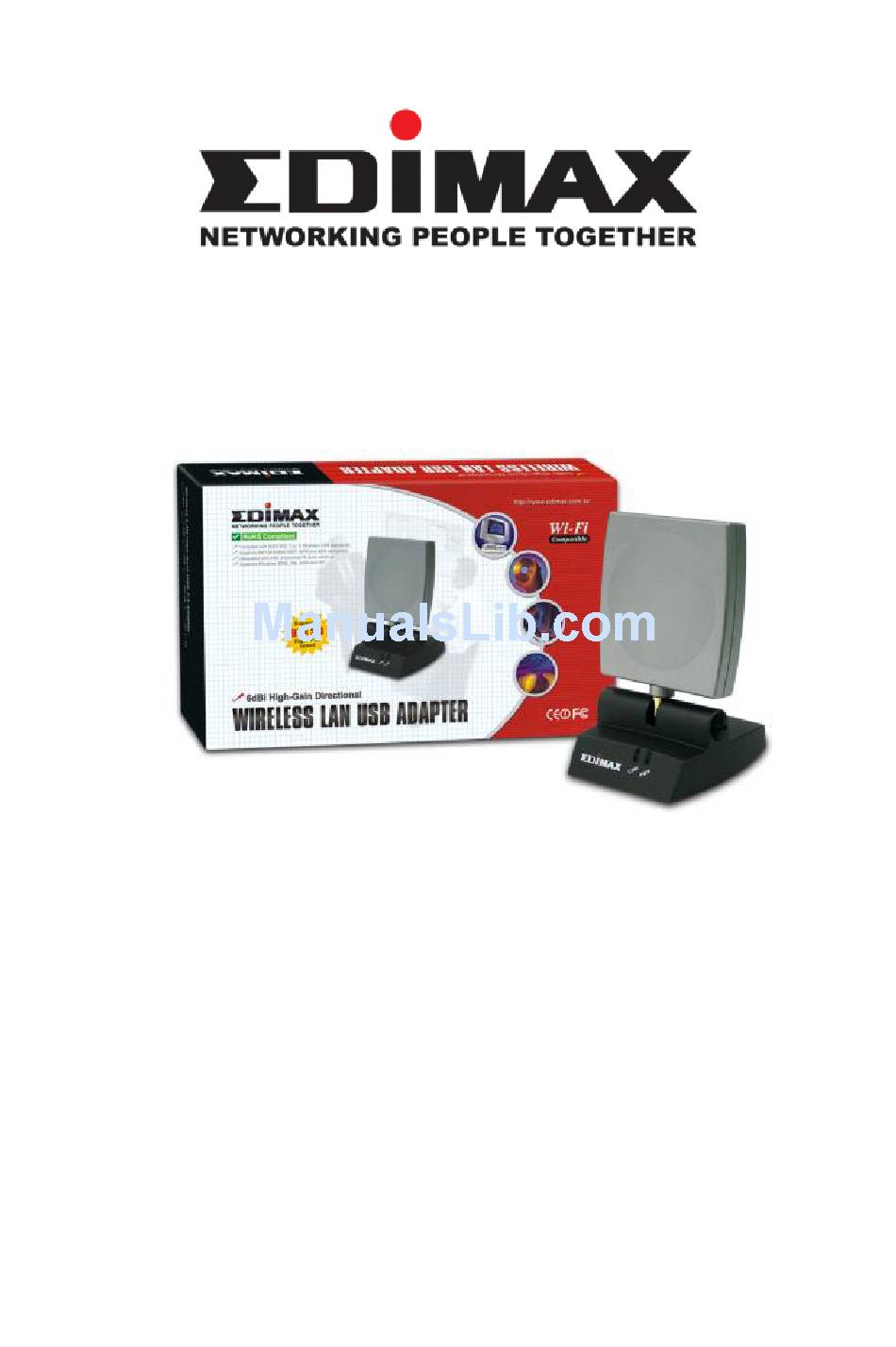

  • Page 1 802.11g Wireless LAN High-Gain USB 2.0 Adapter Version 1.0 January, 2006...
  • Page 2 Č Č ý Anglického průvodce rychlou instalací naleznete ý na přiloženém CD s ovladači Finden Sie bitte das englische QIG beiliegend in der Treiber CD (German) ñ ñ Incluido en el CD el QIG en Ingles. ç Veuillez trouver l’anglais QIG ci-joint dans le CD ç...
  • Page 3 A. Install the Configuration Utility Insert the Installation CD to your CD-ROM drive, the setup programs will appear. 1. Click the “EW-7317UHg” then execute the “Product Utility”. the setup programs will be start Please do not install the USB adapter into your computer before installing the software program from the CD.
  • Page 4 2. Execute the “setup” program then click “Next” to continue 3. If you want to install the software program in another location, click “Browser” and select an alternative destination. Then, click “Next” to continue...
  • Page 5 4. Click “Continue Anyway” to finish the installation. B. Install the USB Adapter 1. Plug the USB Adapter into the USB port of your computer.
  • Page 6 2. The “Found New Hardware Wizard” is displayed, select “Install the software automatically (Recommended)” and click “Next”. 3. Click “Continue Anyway” and the system will start to install the USB adapter.
  • Page 7 4. Click “Finish” to complete the installation. C. Using the Configuration Utility To setup the USB adapter, double-click the icon in the system tray. For Windows XP, there is a “Windows Zero Configuration Tool” by default for you to setup wireless clients. If you want to use the Utility of the USB adapter, please follow one of the ways as below.
  • Page 8 2. Click “Yes” to use the utility of the USB adapter 3. Double-click the “Windows Zero Configuration Tool” icon 4. Click “Advance”.
  • Page 9 5. Uncheck “Use Windows to configure my wireless network settings” and click “OK”. D. Wireless Connection Status When you open the Configuration Utility, the system will scan all the channels to find all the access points/stations within the accessible range of your card and automatically connect to the wireless device with the highest signal strength.
  • Page 10 Available Network: Display the available networks and the signal strength information nearby. To connect to one of the network, double-click the network. Current Network Information: Display the information of the network which the adapter is connecting to. Link Status: Show the link status, signal strength and link quality of the network for you to adjust the best location for wireless connection.
