System Description
Track Guidance System
for Inductive Guidance of Outdoor Vehicles
Revision 04 (English)
Date: 26.04.2016
Götting KG, Celler Str. 5, D-31275 Lehrte - Röddensen (Germany), Tel.: +49 (0) 51 36 / 80 96 -0,
Fax: +49 (0) 51 36 / 80 96 -80, eMail: techdoc@goetting.de, Internet: www.goetting.de
HG G-21934
Developed by: W.M.
Author:
HG G-21934
RAD / K.W.
Advertisement
Table of Contents
Related Manuals for Gotting HG G-21934
Summary of Contents for Gotting HG G-21934

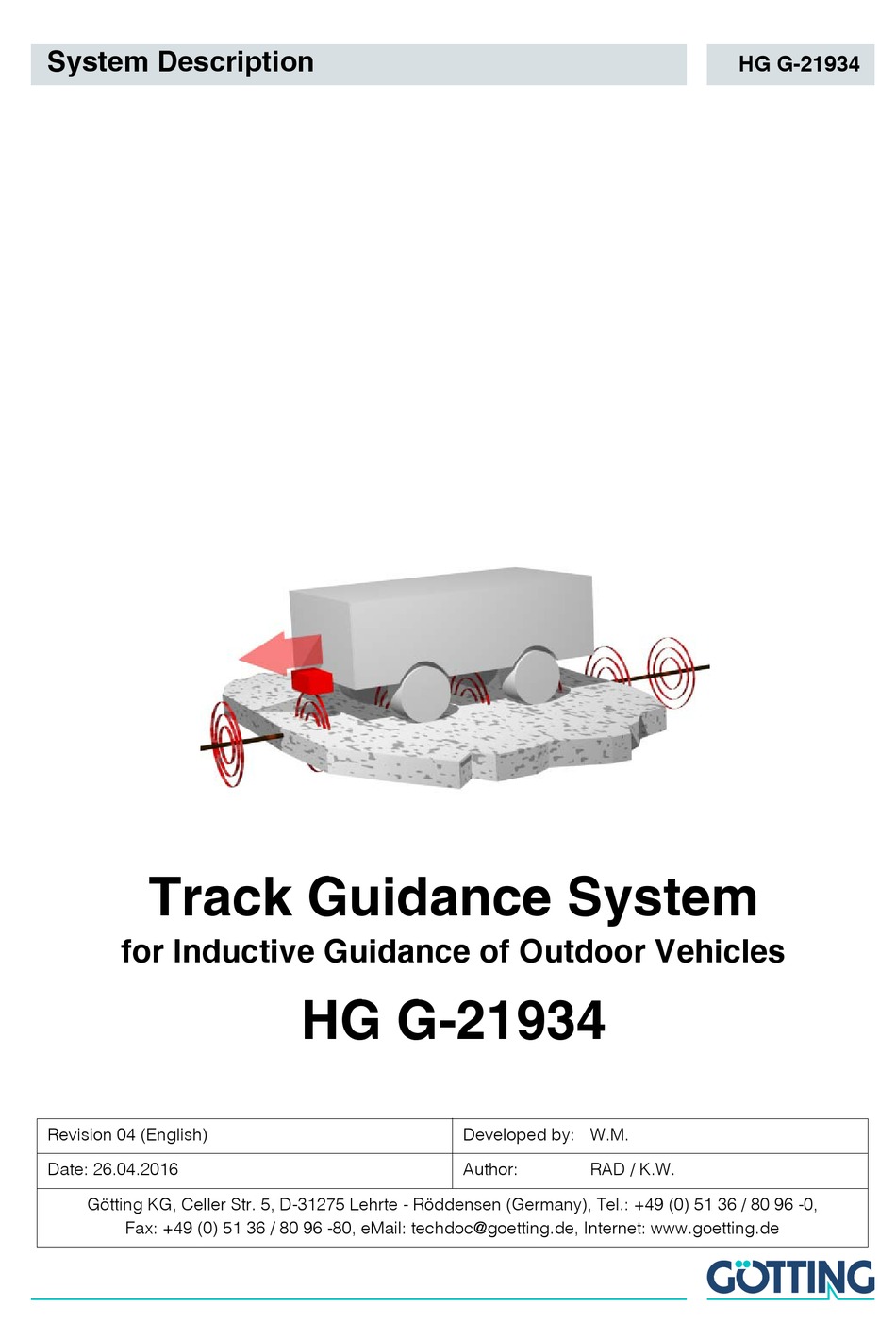

- Page 1 System Description HG G-21934 Track Guidance System for Inductive Guidance of Outdoor Vehicles HG G-21934 Revision 04 (English) Developed by: W.M.
-
Page 2: Table Of Contents
Contents HG G-21934 Contents Introduction ...............4 System Components ............... 4 Functional Description ............4 Components and Operation ..........5 Components in the Ground ............. 5 The Installation Components ........... 6 2.2.1 Loop Adaptor HG 94210 ..............6 2.2.2 Track Guidance Generator HG 57400 ..........7 2.2.2.1... - Page 3 Contents HG G-21934 Appendix ................. 19 Course taken by Sum and Difference Voltage of a crossed coil ..19 Course taken by Sum and Difference Voltage of a Compensated Cros- sed Coil .................... 19 Handbook Conventions............ 21 Copyright and Terms of Liability ........22 Copyright................
-
Page 4: Introduction
Introduction HG G-21934 Introduction The herein described system is especially suited for vehicles working in an outdoor environment. The electronic unit within the antenna casing is fully submerged in a seal- ing compound. All important adjustments are carried out via sealed potentiometers. -
Page 5: Components And Operation
Components and Operation HG G-21934 Components and Operation 2.1 Components in the Ground The accuracy of the system is effected by large metallic objects on the ground metallic reinforcements within a close area of the guide wire. Inductive loops have a large influence on the system's accuracy, (such as those caused by steel mating). -
Page 6: The Installation Components
Components and Operation HG G-21934 2.2 The Installation Components 2.2.1 Loop Adaptor HG 94210 The loop adaptor is contained within an aluminium casing, size 120 x 122 x 91 mm. It is fitted with two PG plugs, one for the RG 213 coax cable from the generator and the other for both ends of the loop conductor 2,5 mm². -
Page 7: Track Guidance Generator Hg 57400
Components and Operation HG G-21934 2.2.2 Track Guidance Generator HG 57400 2.2.2.1 Frequency Setting Position of the Position of the Frequency/Hz Frequency/Hz HEX switch HEX switch 5050 7000 5100 7500 5150 7800 5200 8000 5700 8500 6000 9000 6300 9500... -
Page 8: Front Plate Elements
Components and Operation HG G-21934 2.2.2.3 Front Plate Elements Front plate HG 57400 Figure 1 shows that power supply is on O.K. correct load impedance Z<Zmin short- circuit or load impedance too low Z>Zmax cable break or load impedance too high... -
Page 9: Components On The Vehicle (Antenna Hg 19534)
Components and Operation HG G-21934 2.3 Components on the Vehicle (Antenna HG 19534) The antenna and the electronics are built into a casing, size 120 x 122 x 91 mm. The reading side is the case's top (lid). The 12+1 pin M3 plug connector points in direction of travel. -
Page 10: Connection Plan Of The 12+1 Pin Socket
Components and Operation HG G-21934 2.3.1 Connection Plan of the 12+1 Pin Socket The connection plan for the system used is: Pin # Function Pin # Function +24 V Do not connect. „Guide wire detected“ 1 *) 3 *) 2 *) Do not connect. -
Page 11: Error Influence
Components and Operation HG G-21934 From this we see, that the rate of climb of the difference voltage course is dependant upon the installation height of the antenna, the size of the maxima are also proportional to the current rate used. - Page 12 Components and Operation HG G-21934 More often in large installations there are also neighbouring loops in operation. As the generators are not phase rigidity interconnected, they make themselves noticed as suspensions within the field. To avoid this it is possible to set the fre- quencies with ±50 Hz steps.
-
Page 13: Mounting
Mounting HG G-21934 Mounting 3.1 Mounting Instructions for Guide Wire Guide Wire Layout Figure 3 By a layout as shown in the diagram no adaptor resister is required. • The guide wire should be set in the ground at a depth of 30 to 40 mm. -
Page 14: Mounting The Track Guidance Antenna Hg 19534
Mounting HG G-21934 The coax cable RG 213 to the loop adaptor is connected to the generator as follows: Shielding to loop start Core to loop end long (see also Table 4 on page 8). 3.4 Mounting the Track Guidance Antenna HG 19534... -
Page 15: Set-Up
Set-Up HG G-21934 Set-Up 4.1 Setting the track Guidance Generator Connect all necessary connections to the generators, check power supply before turning the generators on. Set required frequency as shown in the plan at Figure 3 on page 13, so that neighbour- ing loops have a frequency difference of 100 Hz. -
Page 16: Fault Finding
Fault Finding HG G-21934 Fault Finding In the following table you will find a list of possible faults. To every fault is a system de- scription and in the third column a description of how to locate and/ or remove the fault. -
Page 17: Technical Data
Technical Data HG G-21934 Technical Data 6.1 Loop adaptor HG G-94210 Loop Adaptor Casing ROSE 01.12 12 09 Alu Temp. range -20 to +50 C, max. 95 % moderate humidity Mech. stress load 5 g 11 ms / 2 g 10 to 55 Hz... -
Page 18: Antenna Hg G-19534
Technical Data HG G-21934 6.3 Antenna HG G-19534 Track Guidance Antenna Casing ROSE 02.121209 Polyester + GFK Power supply 24 V ±10 %, approx. 100 mA Temp. range -20 to +50 C, max. 95 % moderate humidity Mech. stress load... -
Page 19: Appendix
Appendix HG G-21934 Appendix Course taken by Sum and Difference Voltage of a crossed coil Induced Voltages in Sum and Difference Antenna Figure 6 Course taken by Sum and Difference Voltage of a Com- pensated Crossed Coil Course of the Sum, Difference Voltage and Right Angular Distance with... - Page 20 Appendix HG G-21934 Course of the Sum, Difference Voltage and Right Angular Distance with Figure 8 Height Compensation (H = 250 mm) Course of the Sum, Difference Voltage and Right Angular Distance with Figure 9 Height Compensation (H = 300 mm)
-
Page 21: Handbook Conventions
Handbook Conventions HG G-21934 Handbook Conventions At the time this manual was printed, the following symbols and marks were used in all Götting KG documentations: For security advices, the following symbols stand for different degrees of danger and importance:... -
Page 22: Copyright And Terms Of Liability
Copyright and Terms of Liability HG G-21934 Copyright and Terms of Liability 9.1 Copyright This manual is protected by copyright. All rights reserved. Violations are subject to pe- nal legislation of the Copyright. 9.2 Exclusion of Liability Any information given is to be understood as system description only, but is not to be taken as guaranteed features. -
Page 23: List Of Pictures
List of Pictures HG G-21934 10 List of Pictures Figure 1 Front plate HG 57400................ 8 Figure 2 Sketch showing dimensions of the antenna HG 19534 ....9 Figure 3 Guide Wire Layout................13 Figure 4 Mounting Possibilities for the Track Guidance Antenna (Mounting Bracket not included in Delivery Package)........ -
Page 24: List Of Tables
List of Tables HG G-21934 11 List of Tables Table 1 Connection Plan for the Loop Adaptor ..........6 Table 2 Frequency Setting ................7 Table 3 Load Impedance Ranges of the Generator ........8 Table 4 Connection plan generator ............... 8 Table 5 Connection Plan of the 1+1 Pin Socket .......... -
Page 25: Index
Index HG G-21934 12 Index accuracy 5 loop adaptor 6 adaptor resister 13 connection plan 6 approximation 11 mounting 13 technical data 17 cabinet 13 casing 9 metallic objects 5 Company names 22 mounting 13 components ground 5 outdoor environment 4... - Page 26 Index HG G-21934 wave resistance 11 Revision 04 (English), Date: 26.04.2016...
