Summary of Contents for Forever Redwood ARCHED GARDEN ARBOR

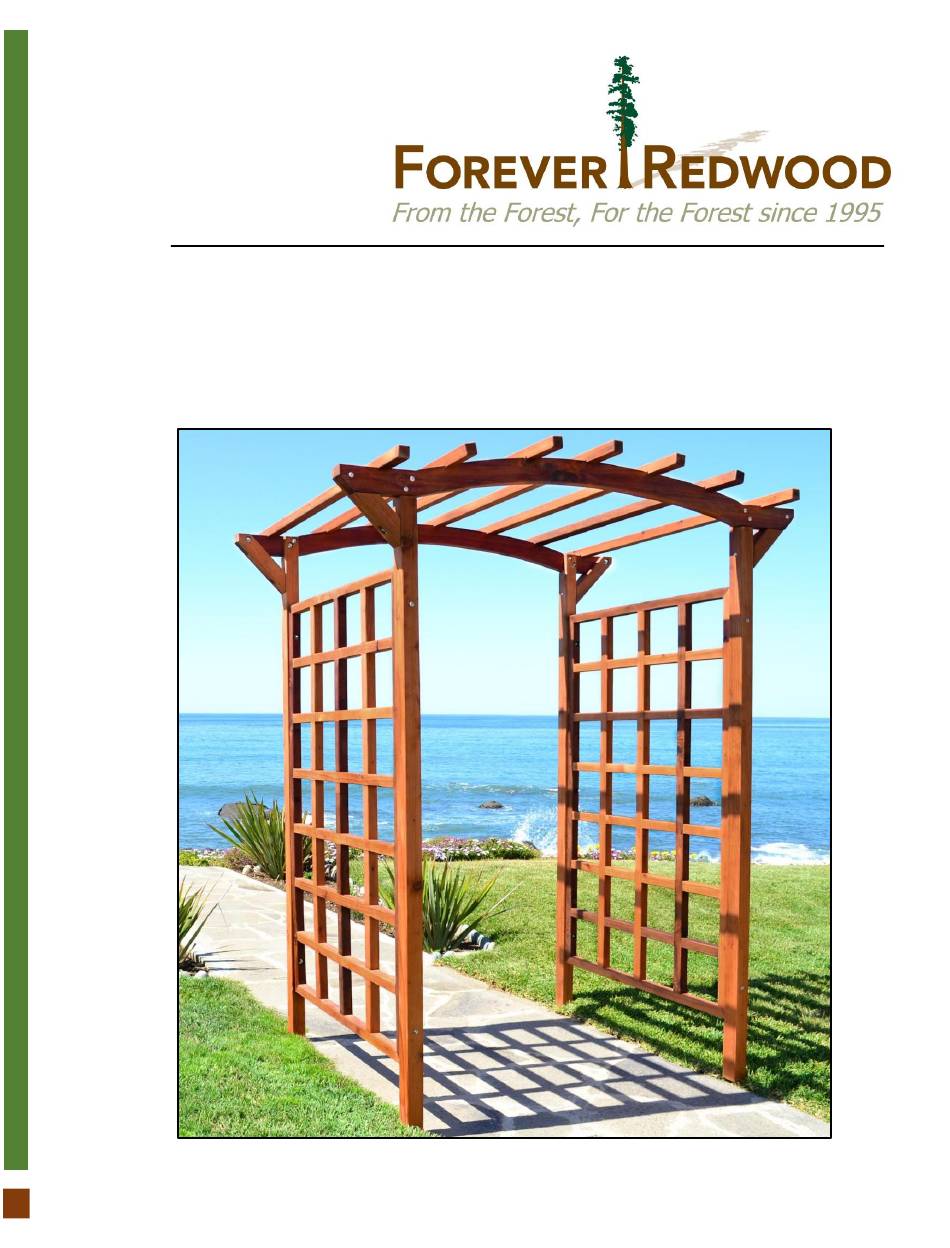

- Page 1 866.332.2403 (TOLL FREE); 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE ARCHED GARDEN ARBOR...
- Page 2 P| 1 ARCHED GARDEN ARBOR www.ForeverRedwood.com...
- Page 3 P| 2 ARCHED GARDEN ARBOR www.ForeverRedwood.com...
- Page 4 P| 3 ARCHED GARDEN ARBOR www.ForeverRedwood.com...
- Page 5 Then add a washer and nut and lightly tighten. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 5/16´´ X 3 ½ ´´ Bolts P| 4 ARCHED GARDEN ARBOR www.ForeverRedwood.com...
- Page 6 Step 4: Attach the trellis wall panels (4) to the posts with 5/16” x 5 ½” bolts (E) washers & nuts. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 5/16´´ X 5½´´ Bolts P| 5 ARCHED GARDEN ARBOR www.ForeverRedwood.com...
- Page 7 Step 5: Attach the Slats (5) to the supports with 3” deck Screws (F). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 8´´ X 3´´ Deck screws Step 6: Finally, use 3” deck Screws (F) to attach the boots (6) to the posts. 8´´ X 3´´ Deck screws P| 6 ARCHED GARDEN ARBOR www.ForeverRedwood.com...
- Page 8 This completes the Arched Garden Arbor assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you.
