LCL-11A
Serial adapter for PIMA
alarm systems

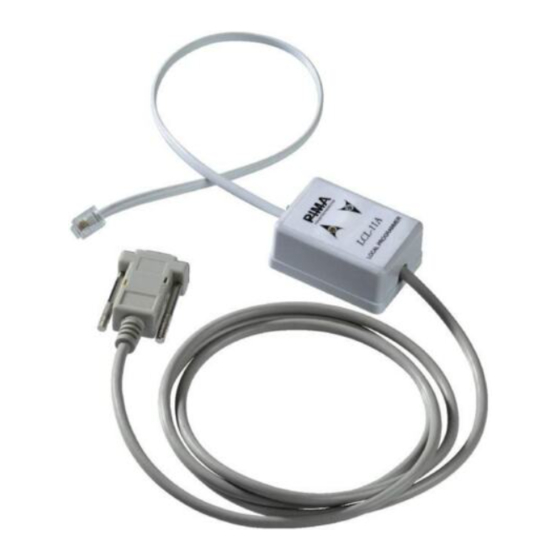

The LCL-11A is a serial adapter that enables to connect a PC/laptop installed with PIMA
COMAX upload/download application, to PIMA alarm systems. It is also used to connect
the alarm systems to Home Automation systems.
The LCL-11A has RS-232 serial connector on one end, and RJ-11 on the other; the serial
connector is connected to a PC/laptop COM port or, via Serial-to-USB adapter, to a USB
port; the RJ-11 is connected to an RJ-11 socket in any PIMA LCD keypad (RXN 400/410).

Out of the box

 LCL-11A serial adapter (P/N 3411054)
 Serial-to-USB adapter (P/N 3411060)
 RJ-11 (4/6 pin connectors) cable (P/N 3411048 )

Connecting the adapter

1. Connect the LCL-11A to an LCD keypad using the RJ-11 cable: the 6 pin connector
connects to the LCL-11A box; the 4 pin connector connects to the keypad (the
keypad's rear cover must be removed).
2. Connect the LCL-11A to a PC/laptop, either directly to a COM port using the RS-232
connector, or to a USB port using the Serial-to-USB adaptor.
Serial-to-USB adaptor
Serial (RS-232)
connector
RJ-11 cable
LCL-11A

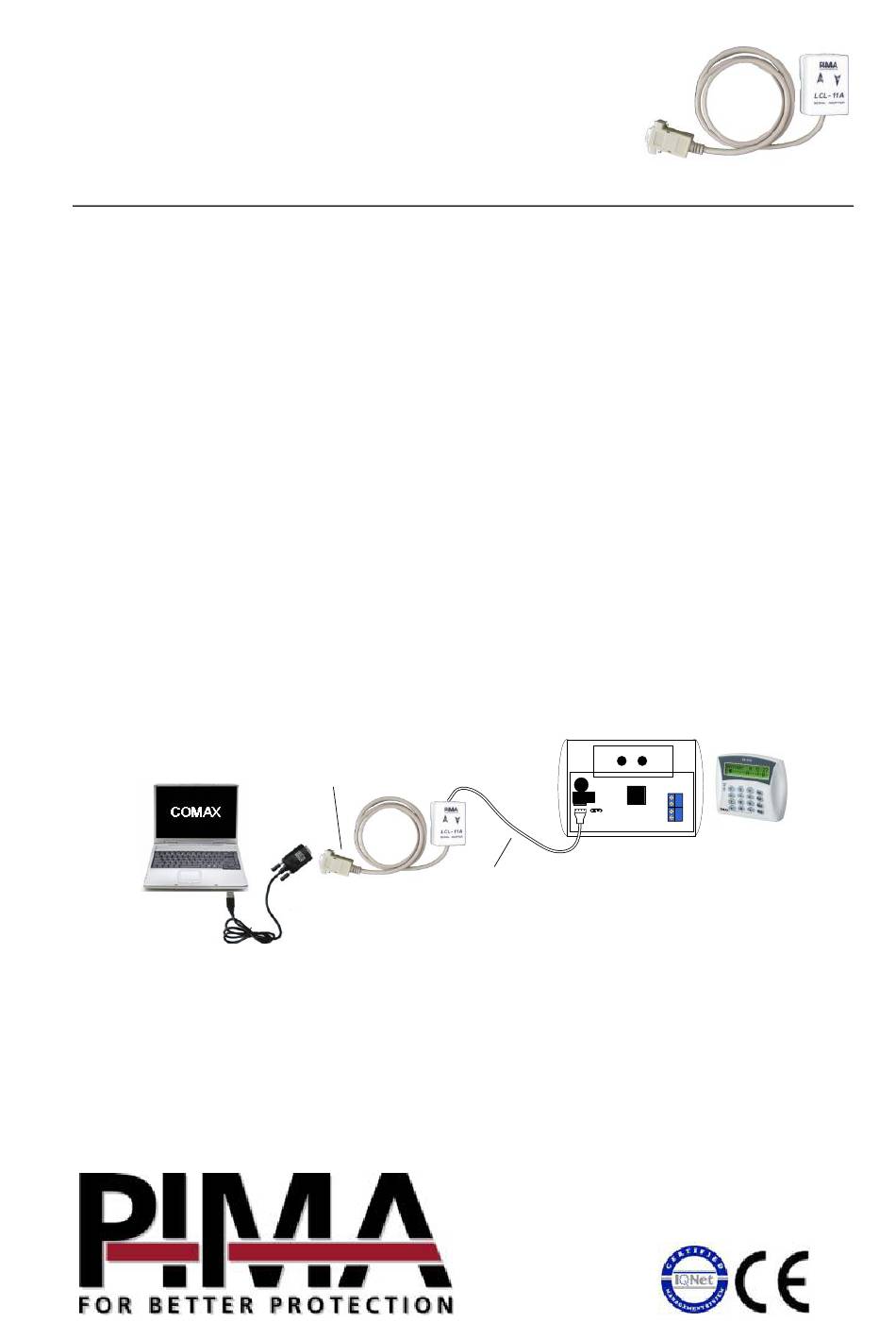

COMAX connection diagram
4
(IN)
3
(OUT)
JP1
PROGRAMMING
1 2
(+)
1
(-)
LCD keypad
