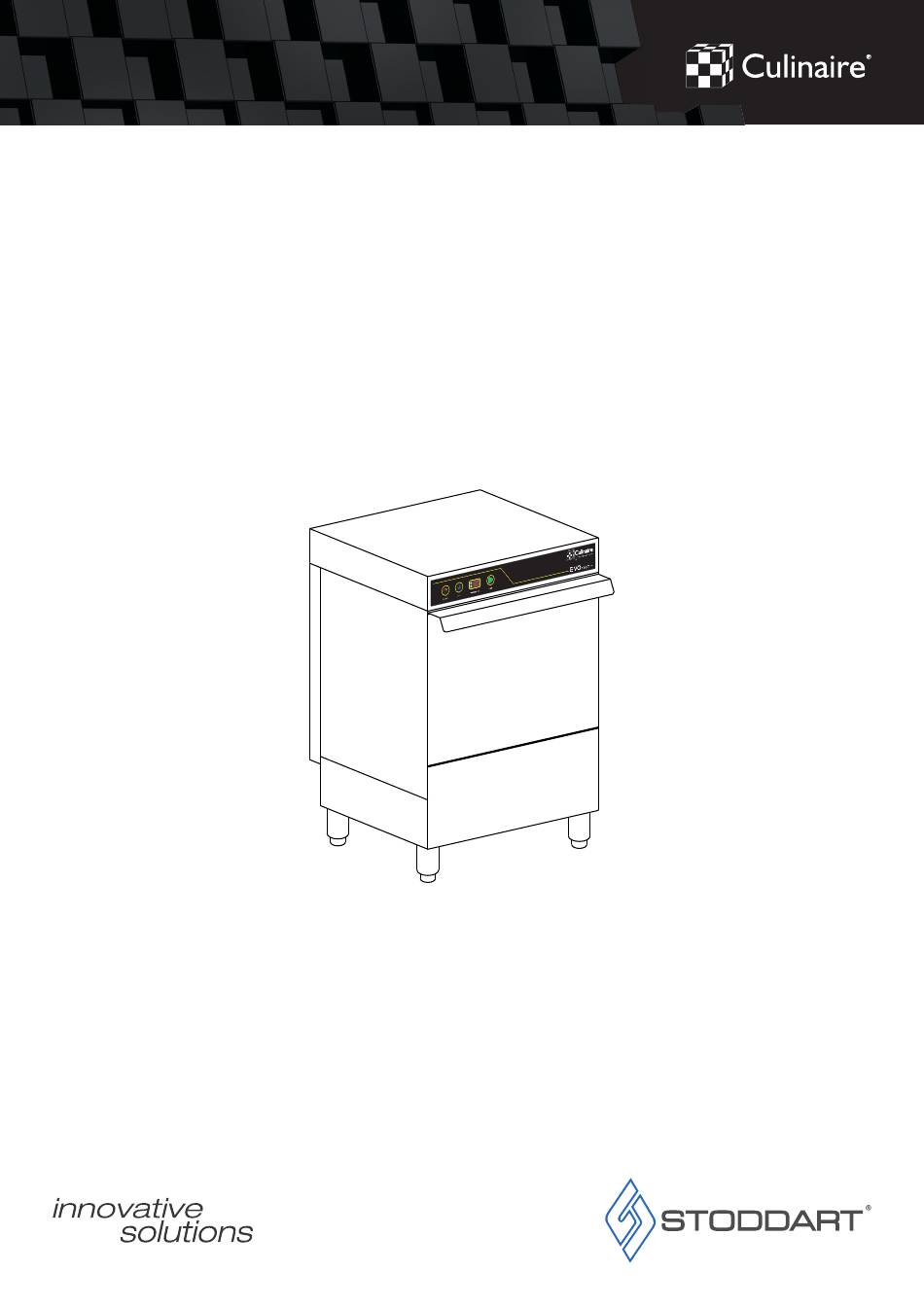

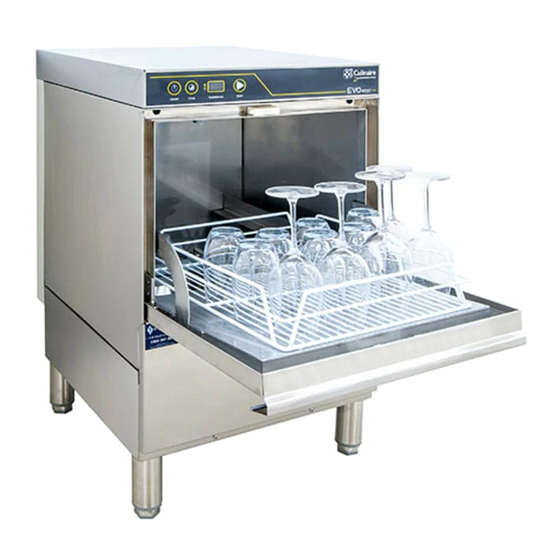

- Page 1 SPECIFICATION, INSTALLATION AND OPERATION MANUAL READ ALL INSTRUCTIONS BEFORE USE UNDER BENCH GLASS WASHER EVO40ST A guide on the use, care and maintenance of your quality Culinaire product Revision: 02 - 22/03/2021 - A...
- Page 2 Page Intentionally Left Blank Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 1...
- Page 3 Initial Start-up & Operation � � � � � � � � � � � � � � � � � � 11 Operation Washing Cycles Automatic Draining Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 2...
-
Page 4: Your New Culinaire Product
Culinaire product in accordance with these instructions, will provide many years of reliable service� Stoddart is a wholly Australian owned company, which manufactures and/or distributes a comprehensive range of food service equipment for kitchens, food preparation and presentation� Stoddart products are manufactured and/or engineered in Australia to provide excellent results whilst offering value-for-money, ease-of-use and reliability�... -
Page 5: Warranty And Registration
Warranty Period All Stoddart manufactured and distributed products are covered by Stoddart’s standard Australia and New Zealand Product Warranty (minimum 12 month on-site parts and labour, terms and conditions apply)� Further to this standard warranty, certain products have access to an extended warranty�... -
Page 6: Product Overview
Installation Product Overview Control Panel Door Adjustable Feet Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 5... - Page 7 Please consult national and local standards to ensure that your unit is positioned in accordance with any existing requirement Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 6...
-
Page 8: Electrical Connections
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualifi ed persons in order to avoid a hazard� Please contact Stoddart for parts and we will advise how to do this in order to avoid any electrical hazard •... -
Page 9: Plumbing Connections
Connect the drain hose (supplied) to a suitable drainage point� Typically, this will be the dishwasher connection spigot on a P or S Trap 1� Water Supply, Detergent Hose (clear), Rinse Aid Hose (blue) 2� Power Connection 3� Waste Outlet Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 8... -
Page 10: Detergent Connection
To reduce the amount of rinse aid, screw the needle valve anticlockwise • To increase the amount of rinse aid, screw the needle valve clockwise Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 9... -
Page 11: Technical Specifications
Voltage 220-240V, 50Hz Power (kW) 2.85kW Connection 1 Phase, Neutral, Earth TOP VIEW DRAIN HEIGHT FRONT VIEW SIDE VIEW Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 10... -
Page 12: Initial Start-Up & Operation
Wait until all the water is completely drained out from the tank� The unit will turn OFF automatically after completing drain process Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 11... -
Page 13: Cleaning And Maintenance
fi ne particles of hot surfaces can cause burns and food, deeming the surface not FOOD SAFE serious injury Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 12... - Page 14 The filter trap is located in the front right corner of the chamber� 1� Water Flow Plug 2� Outer Filter Trap 3� Inner Filter Trap Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 13...
-
Page 15: Troubleshooting
• If any faults/issues occur with the unit, follow the below troubleshooting procedures • If the troubleshooting procedures do not correct the problem, contact the Stoddart Service Department Problem Remedy Verify inlet main water supply is correctly connected, open and free from any obstructions... - Page 16 Australia Service / Spare Parts Sales Tel: 1300 307 289 Tel: 1300 79 1954 Email: service@stoddart.com.au Email: sales@stoddart.com.au Email: spares@stoddart.com.au Service Request www.stoddart.com.au Australian Business Number: 16009690251 New Zealand Service / Spare Parts Sales / Spare Parts Tel: 0800 935 714 Tel: 0800 79 1954 Email: service@stoddart.co.nz...
