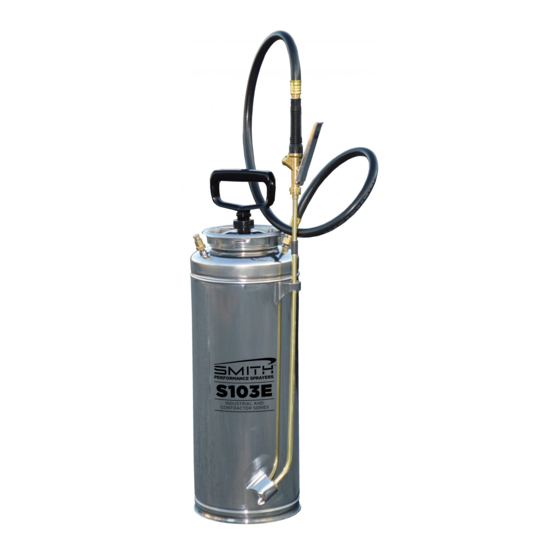

Smith Performance Sprayers S103E Quick Start Manual

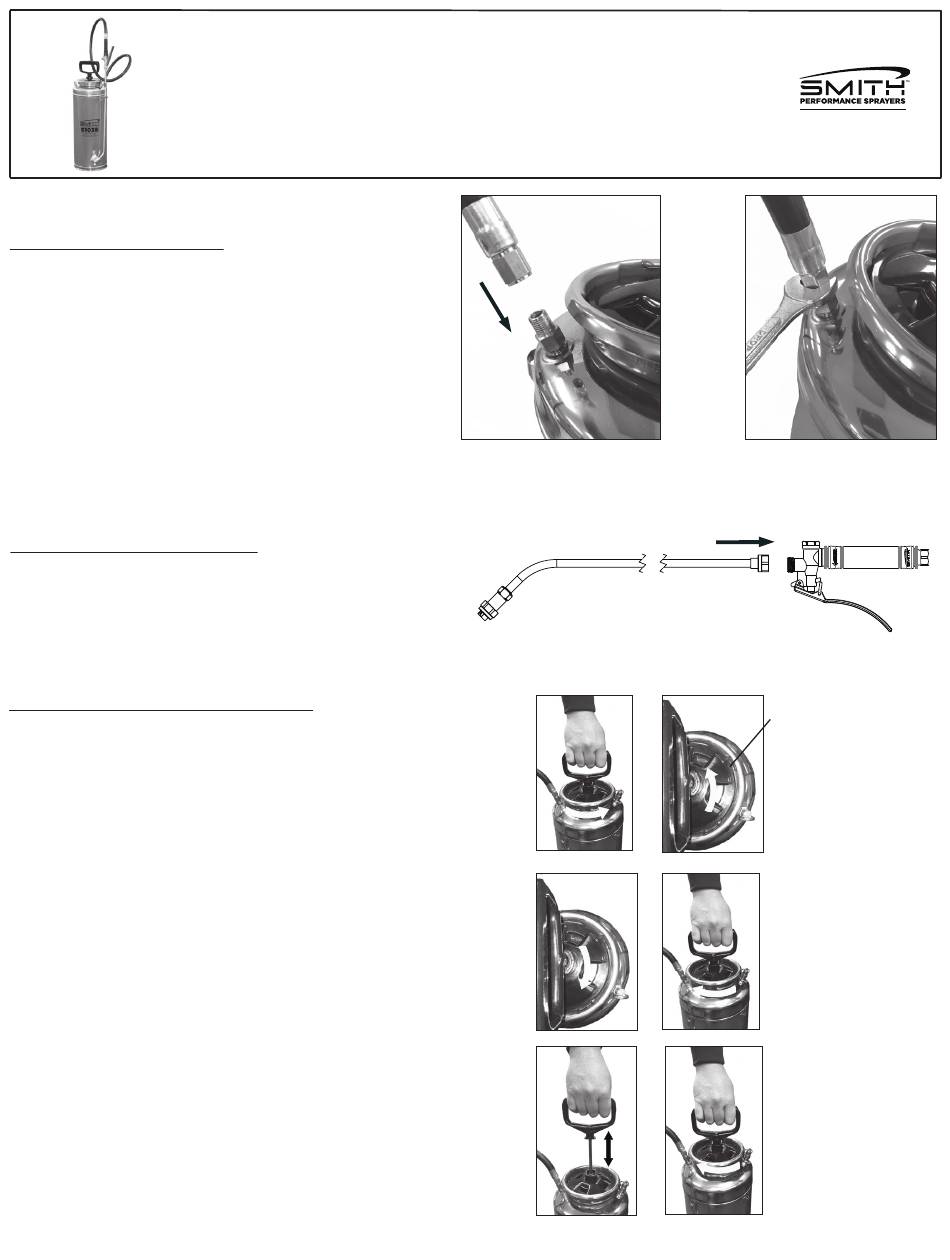

SETTING UP YOUR INDUSTRIAL CONCRETE S103E SPRAYER

1. Assemble Hose To Tank

IMPORTANT: Do not attempt to heat or alter hose
or hose nut.
1. Align hose and scew on to tank. (See Figure A).
2. Tighten with a 5/8" wrench. (See Figure B).

2. Assemble Wand to Shut-off

Screw on Wand Assembly to Shut-off using a 13/16"
wrench. (See Figure C)

3. Pump Unlocking and Pressurizing

TO UNLOCK PUMP: Turn handle counterclockwise until 4-prong
clamp is loose, then rotate clamp counterclockwise aligning
the tabs with the slots in the neck of the tank and remove the
pump.
TO LOCK PUMP: Align clamp tabs with the slots in the neck of
the tank and lower the pump assembly, rotate the 4-tab clamp
clockwise to the stop position and rotate the handle clockwise
to tighten, seal and lock the tank cover.
TO PRESSURIZE: Push down on the handle to depress coil spring
and turn handle 1/4 turn counterclockwise to unlock handle.
Pressurize the sprayer by pumping the handle in a smooth up
and down motion. Push down on the handle to depress coil
spring and turn handle 1/4 turn clockwise, then allow handle to
raise into lock position.
QUICK START GUIDE
190448
Figure A
WAND ASSEMBLY
Figure B
SHUT-OFF
Figure C
Pump Clamp Tab
