1. Assemble Hose To Tank
IMPORTANT: Do not attempt to heat or alter
hose, hose nut, or barb prior to assembly.
. Align hose barb tabs, push hose barb into tank
1
until it stops (See Figure A).
2. Slide hose nut into place and turn clockwise to
tighten. (See Figure B).
NOTE: Do not use tools to tighten hose nut.
2. Fasten Hose to XB Shut-Off :
182507
Hose Assembly
Use 9/16" wrench to
tighten.
3. Changing Nozzle:
OPTIONAL NOZZLE
Please refer to manual for options
of nozzles for your sprayer.
When placing diff erent nozzles on end of wand. Make certain the Soft seat is always

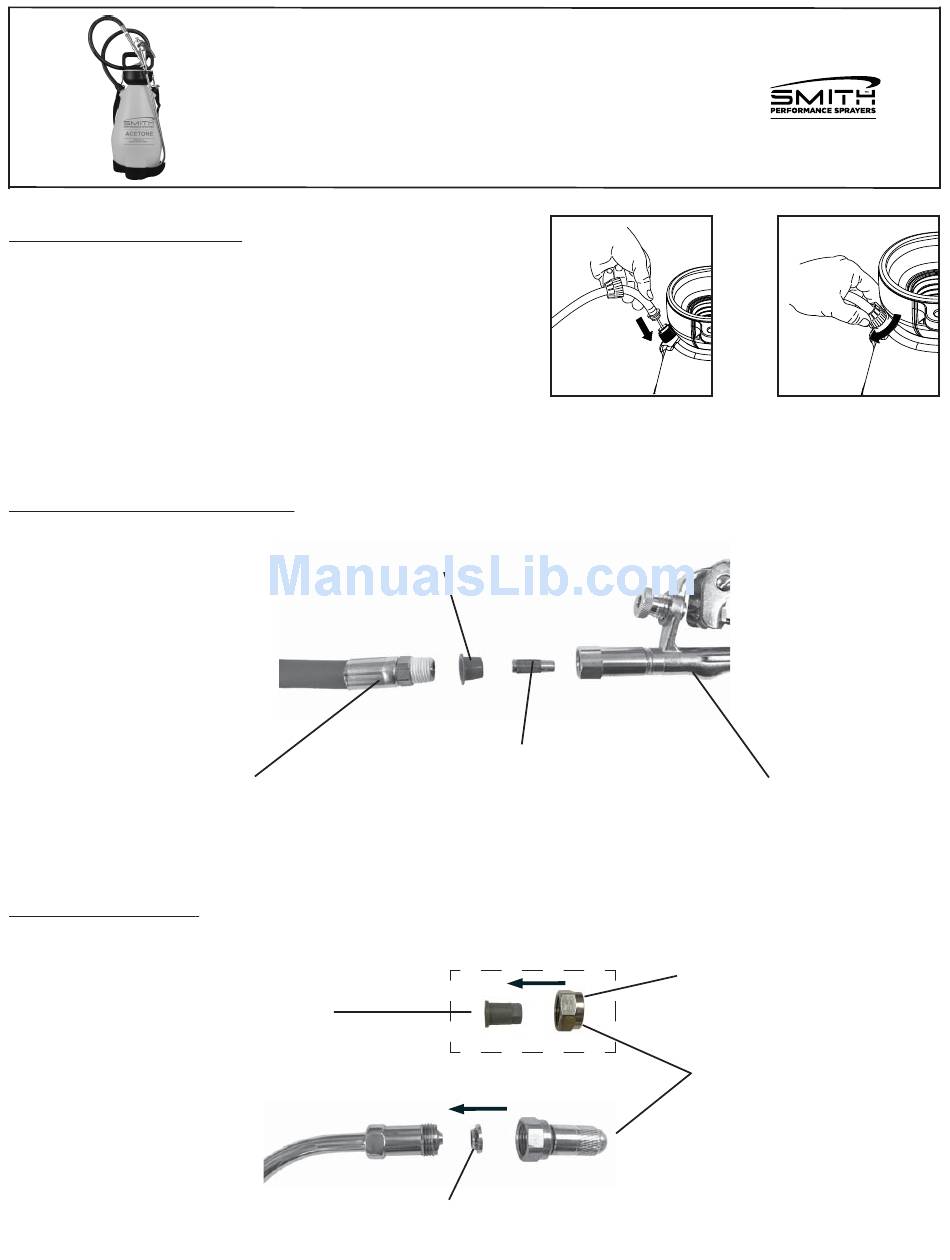

QUICK START GUIDE
SETTING UP YOUR ACETONE SPRAYER
Screw on XB Shut-Off to end of Hose Assembly (See Below)
Remove
shipping plug
Remove nut and place nozzle on end of wand and tighted with a 13/16" wrench . (See Below)
used and gasket is facing correctly. The small end facing the Extension.
190450
CAUTION:
Make sure screen is inside of
wand before fastening hose.
Figure A
XB Shut-Off
Nut shipped with shut-off
Use 13/16" wrench to remove
and tighten.
Figure B
182663
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Smith Performance Sprayers 190450
Summary of Contents for Smith Performance Sprayers 190450
- Page 1 QUICK START GUIDE SETTING UP YOUR ACETONE SPRAYER 190450 1. Assemble Hose To Tank IMPORTANT: Do not attempt to heat or alter hose, hose nut, or barb prior to assembly. . Align hose barb tabs, push hose barb into tank until it stops (See Figure A).
- Page 2 PARTS INCLUDED WITH YOUR ACETONE SPRAYER 190450 182507 HOSE ASSEMBLY 182663 XB Shut-Off COMPRESSION SPRAYER Use and Care Manual Lifetime Limited Warranty On Tank and Frame, Garantia limitada de por vida ensamblaje de Garantle limitée á vie assemblage de réservoir 1 year on parts and accessories.
