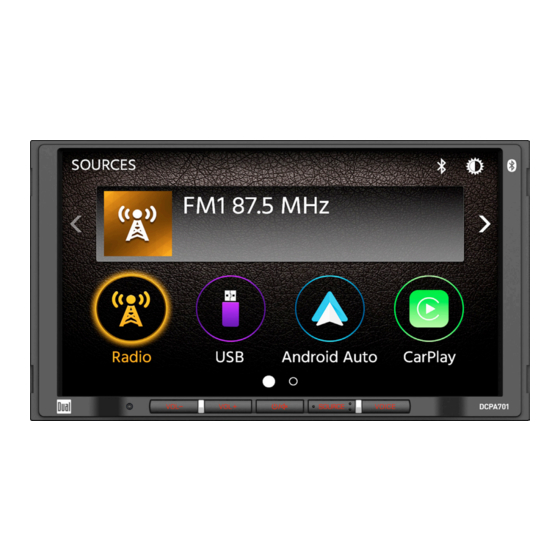

Media receiver with android auto and carplay featuring a 7" digital tft display

Advertisement

DCPA701
INSTALLATION/OWNER'S MANUAL
Media Receiver with Android Auto™ and CarPlay™
featuring a
7" digital TFT Display

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DCPA701 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dual DCPA701

  • Page 1 DCPA701 INSTALLATION/OWNER’S MANUAL Media Receiver with Android Auto™ and CarPlay™ featuring a 7" digital TFT Display...
  • Page 2 • Use only the provided hardware and wire harness. • If you experience problems during installation, consult your nearest DUAL deale . • If the unit malfunctions, reset the unit as described. If the problem still persists consult your nearest DUAL dealer or call tech assistance @ 1-866-382-5476.
  • Page 3: Table Of Contents

    DCPA701 Table of Contents Page Warning Statement ..........
  • Page 4: Warning Statement

    DCPA701 WARNING Upon installation of this monitor/media player (“unit”) into a vehicle, the driver of the vehicle must not operate this unit by watching videos or playing video games while driving. Failure to follow this instruction could lead to driver distraction which could result in serious injury or death to the vehicle’s occupants or persons outside the vehicle and/or...
  • Page 5: Fcc Compliance

    DCPA701 FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 6: Preparation/Mounting

    DCPA701 Preparation Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
  • Page 7: Wiring Diagram

    DCPA701 Wiring Diagram - Inputs/Outputs CarPlay and Android Auto 20PIN 18PIN Note: When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause damage. The unit uses (1) 15 amp ATC mini style fuse located on the power connector.
  • Page 8: Control Locations

    DCPA701 Control Locations The radio display features the following functions and displays: RESET VOL- VOL+ POWER/MUTE SOURCE VOICE ACTIVATION BUTTON...
  • Page 9: General Operation

    DCPA701 General Operation Power On/Off Momentarily press to turn the unit on. Press and hold to turn the unit off. Volume Press "VOL+" or "VOL-" to increase or decrease the volume level. Mute Momentarily press MUTE to silence the audio. Momentarily press MUTE again to return to the previously selected volume.
  • Page 10 DCPA701 General Operation To resolve abnormal operation or if the unit is inoperable, Press the RESET Reset button located behind the front panel directly under USB port. The unit will reset the main processor to the default settings, Note: Use the tip of a pen to access the reset button. To restore the factory default software settings.
  • Page 11: Audio Operation

    DCPA701 Audio Operation From the Main Menu screen, Press the Equalizer icon on the main menu Equalizer Menu screen to adjust Fader and Balance controls, Equalizer (8-Band Tone Control and 8 Presets EQ Settings). Time Alignment Menu Surround Presets Time Delay Setting...
  • Page 12: Am/Fm Tuner Operation

    DCPA701 AM/FM Tuner Operation From the main menu, touch Radio icon on the screen to select AM/ Radio Operation FM tuner mode. Main Menu Press icon to return to Main Menu screen. Current Mode Indicator Display status of various tuning functions including Auto.
  • Page 13: Usb Operation

    DCPA701 USB Operation From the main menu, touch the USB icon on the main screen. Press icon to return to Main Menu screen. Main Menu Displays source currently playing. Current Mode Indicator Press the icon to adjust Equalizer setting. Press icon to search a music file.
  • Page 14: Media Compatibility

    DCPA701 Media Compatibility File Type FAT 12 File System FAT 16/FAT 32  .mp3/.MP3/.Mp3/.mP3/.flac/ogg  File Extension .rmp/.m4a MPEG 1  MPEG MPEG 2  Format MPEG 2.5  MPEG 1 32/44.1/48kHz Sampling MPEG 2 12/16/22.05/24kHz Frequency MPEG 2.5 8/11.025/12kHz...
  • Page 15 DCPA701 Media Compatibility Media Compatibility The following types of files are not compatible: • MP3 PRO format, MP3 playlists • RMP format • AAC, protected AAC, M4A format Playback Order MP3 playback sequence begins in the root folder of the USB device. Any empty folders or folders that do not include MP3 files are skipped.
  • Page 16: Bluetooth Operation

    Complete the pairing sequence from your Bluetooth device. Refer to the owner's manual for your device for more details. The device name is "DCPA701". The unit can be in any mode of operation when pairing is performed. On certain phones, pairing may need to be done more than once.
  • Page 17 DCPA701 Bluetooth Operation Devices Press the DEVICES to show the pairing device list. To connect to a previously connected device. press the current device name. Any previously connected devices that are in rang will be listed by their device name. Press the desired device name to disconnect from the current device and connect to the new device.
  • Page 18: Apple Carplay

    DCPA701 Apple CarPlay Operation Apple CarPlay™ is a smart interface for iPhone, allowing you to voice-control (via Siri) music, navigation, phone and messaging apps - significantly reducing driver distraction. Phone - Use Siri to make calls, return missed calls, listen to voicemail messages, and view the caller ID on the receiver’s screen.
  • Page 19 DCPA701 Apple CarPlay Operation When the CarPlay menu is displayed, the home button in the lower left corner work just like the home button on your iPhone. Press and hold it to summon Siri and begin your voice commands. At any time during CarPlay operation, you can press this button momentarily to return to the main CarPlay menu screen.
  • Page 20: Android Auto

    DCPA701 Android Auto™ Operation Android Auto™ brings the most useful apps to your phone screen or your compatible car display, in a format that makes it easy for you to keep your main focus on driving. You can control things like navigation and maps, calls and text messages, and music.
  • Page 21 DCPA701 Android Auto™ Operation Using Android Auto™ The Android Auto™ home screen displays personalized information, like time to your destination, reminders, recent calls incoming messages, the song you're listening to, and Google Now cards. When the Android Auto™ menu is displayed, you can say "OK Google" or select the microphone in the upper right corner to talk to Google.
  • Page 22: Auxiliary Inputs/Rear Camera Operation

    DCPA701 Rear RCA Input A/V IN Connect an optional audio/video source into the RCA (rear) input. Adjust volume on the external audio source as needed (if connected to the headphone output of the device). Rear Camera Operation - (Optional) Using Rear Camera Connect an optional rear camera to the Camera Input (Black RCA connector).
  • Page 23: Swc Input Operation

    The built-in SWC Interface is compatible with PAC steering wheel control modules. The PAC SWI-RC is recommended. A third-party adapter must be used in order for the DCPA701 to be compatible with any steering wheel controls. The following controls are available for most vehicles.
  • Page 24: Troubleshooting

    Please keep your original sales receipt and be prepared to provide this receipt in the event you require service, as your original receipt is considered the best proof of purchase and indicates the date you purchased your Dual product. Dealer Name...
  • Page 25: Specifications

    DCPA701 Specifications FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 10dBf 50dB quieting sensitivity: 20dBf Stereo separation @ 1kHz: 38dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: 24uV Frequency response: 30Hz-2.3kHz Front USB Compatibility: High Speed USB 2.0...
  • Page 26: Warranty

    4. For more information and for the location of the original retail purchaser for products purchased from nearest authorized service center please contact an authorized Dual dealer and used in the U.S.A. us by one of the following methods: What is covered? This warranty covers all defects •...
  • Page 27 Dual Electronics Corp. Toll Free: 1-866-382-5476 Monday-Friday, 9AM-5PM EST www.dualav.com ©2021 Dual Electronics Corp. All rights reserved. NSC0421-V01...
