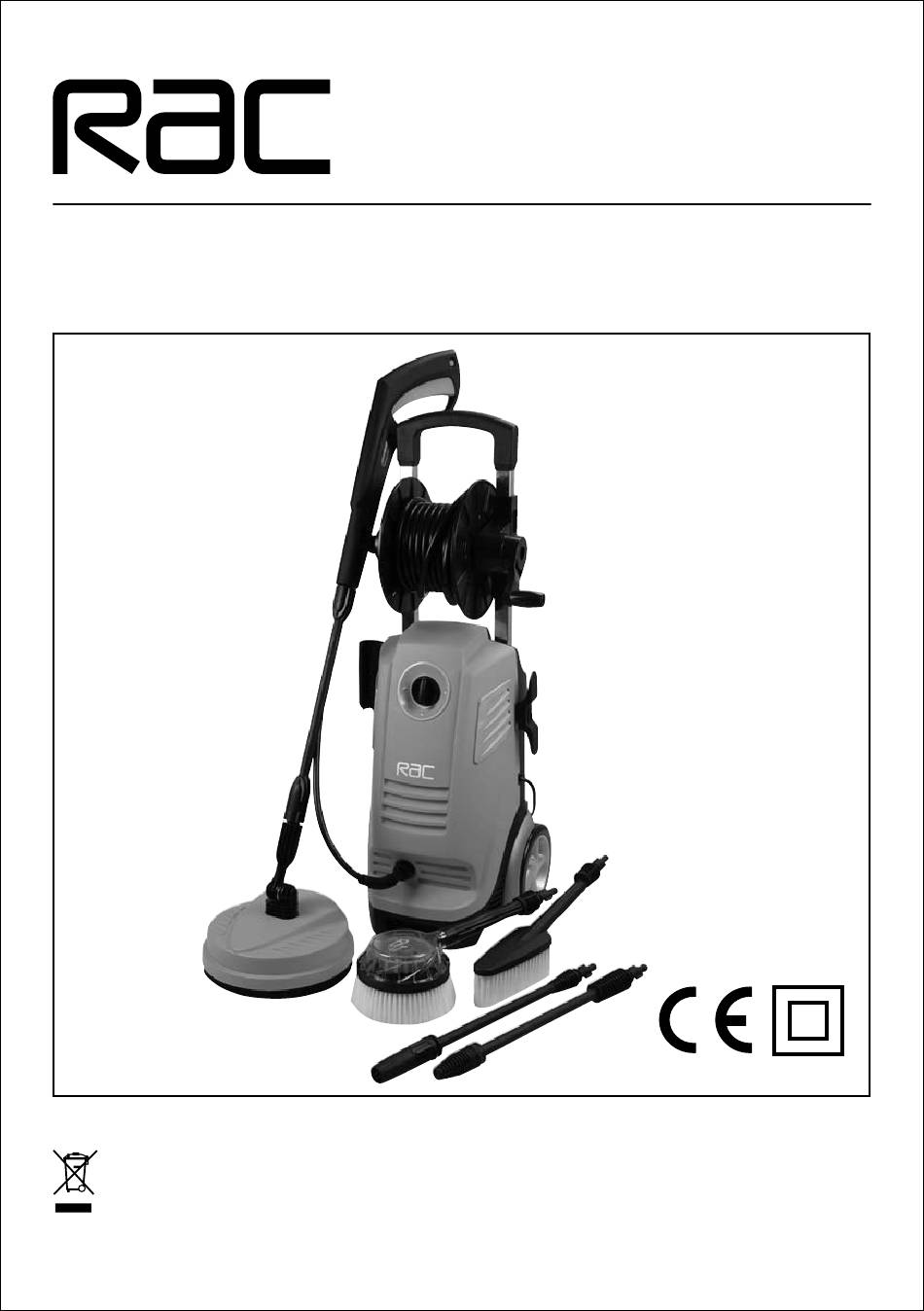

- Page 1 2000W Pressure Washer RACHP2000 Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
- Page 2 SAFETY AND WARNING INFORMATION General Safety Rules WARNING: Read the instructions fully before using the product for the first time. Failure to follow the instructions may result in fire, electric shock and or serious injury. We recommend the user wears safety equipment during use. We recommend the product be used with a RCD (Residual Current Device).
- Page 3 COMPONENTS Component List 1. On/Off switch 12. Hose reel handle 2. Water supply inlet 13. Main handle assembly 3. High pressure outlet 14. High pressure connection hose 4. Cleaning needle 15. Hose reel connection point 5. Quick fit male connector 16.
- Page 4 ASSEMBLY Before carrying out any assembly or disassembly of the unit please ensure that the unit is not connected to the electrical supply. Assembling your Machine Fit the mains cord hook (11) to the side of the main body, as shown in Fig 1. Fit the lance holder (7) to the main body, as shown in Fig 2.
- Page 5 ASSEMBLY - cont Push the high pressure connection hose (14) into Fig 7 the high pressure outlet (3) and then screw on the outer sleeve to fix in position (Fig 6). Similarly, fit the opposite end to the hose reel connection point (15). Connect the high pressure hose (on the hose reel (9)) to the trigger gun (8), as shown in Fig 7.
- Page 6 OPERATING INSTRUCTIONS Note: Helpful Hints Before connecting to the mains power supply please ensure that the ON / OFF switch is in the Before starting cleaning remove any objects which OFF position (fig 10) and the water supply is could create a hazard. Ensure that all doors and connected and is turned on.
- Page 7 Pre-operation ADJUSTING FAN PATTERN The angle of spray coming out of the lance may be adjusted on some lances by rotating the nozzle. This will vary the spray pattern from approximately a 0° narrow high impact stream to a 60° wide fan Fig 14 spray.
- Page 8 HOW TO AVOID DAMAGING SURFACES CAUTION: Since a turbo nozzle uses a Damage to cleaning surfaces occurs narrow high impact stream, only use it in because the impact force of the water applications where the cleaning surface exceeds the durability of the surface. Never cannot be damaged by a narrow high use a narrow high impact stream or a turbo/ impact spray.
- Page 9 Low/High Pressure Adjustable Lance High Pressure Setting: Please make sure the trigger is released and no water is coming out, then turn the rear part of the spray nozzle anti-clockwise (Fig 17) to set to high pressure. Low pressure Setting: Please make sure the trigger is released and no water is coming out, then turn the rear part of the spray nozzle clockwise (Fig 18) to set to low pressure.
- Page 10 DETERGENTS Operation The use of detergents can dramatically reduce The following cleaning procedure will help you cleaning time and assist in the removal of difficult organize your cleaning task and ensure that stains. you achieve the most beneficial results in the Some detergents have been customized for shortest amount of time.
- Page 11 TIPS FOR EXTENDING THE LIFE OF YOUR PRESSURE WASHER Never operate the unit without water. This pressure washer is not designed to pump hot water. Never connect it to the hot water supply – this will significantly reduce the life of the pump. Only use detergents specifically designed for pressure washers.
- Page 12 Troubleshooting chart Symptom Possible cause (s) Corrective Action(s) Pressure washer does Unit is pressurized Squeeze trigger on gun not start Poor plug connection or faulty Check plug, socket outlet socket Remove extension cord Extension cord too long or Check that main supply voltage is undersized adequate Main voltage supply too low...
- Page 14 Helpline at the number above for advice. This product is not guaranteed for HIRE purposes. Produced under license for Halco Products Ltd Booths Hall, Booths Park, Chelford Road, Knutsford, Cheshire WA16 8QZ England RAC-HP2000 - Issue 1 - R.W. 12-08-09...
