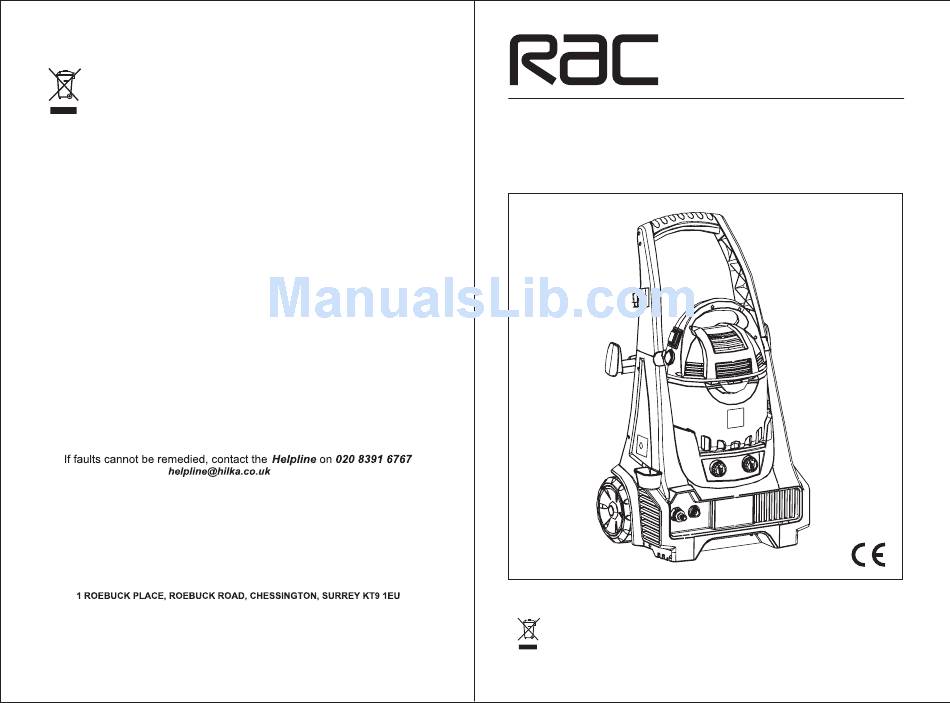

Rac -HP101 Assembly Manual

2in1 pressure washer with wet & dry vac

Hide thumbs Also See for RAC-HP101:

Enlarged version

This product bears the selective sorting symbol for waste electrical and electronic equipment

(WEEE).

This means that this product must be handled pursuant to European Directive 2002/96/EC

in order to be recycled or dismantled to minimize its impact on the environment.

For further information, please contact your local or regional authorities.

Electronic products not intended in the selective sorting process are potentially dangerous

for the environment and human health due to the presence of hazardous substances.

GUARANTEE

This product is guaranteed for domestic use for a period of 12 months against faulty manufacture or materials.

This guarantee does not affect the statutory rights of the consumer. In the event of any problem occurring

please contact our Helpline at the number above for advice. This product is not guaranteed for HIRE purposes.

Manufactured under license for:

HILKA PRO IMPORTS

RAC-HP101

2in1 Pressure Washer with Wet & Dry Vac

Assembly Manual

Environmental Protection

Waste electrical products should not be disposed of with household waste.

Please recycle where facilities exist. Check with your local authority or retailer

for recycling advice.

Table of Contents

Need help?

Do you have a question about the RAC-HP101 and is the answer not in the manual?

Page 1 RAC-HP101 2in1 Pressure Washer with Wet & Dry Vac Assembly Manual This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimize its impact on the environment.
Page 2: Assembly Instructions
Assembly Instructions Shelf Assembly Handle assembly Shelf 4 X Screws Handle Screws X 2 left & right hand Side Post handle posts Locate the handle between the left & right hand handle posts and fix with 4 x screws provided. Place the shelf between the side posts and fix using 2 X screws provided...
Page 3 Handle Assembly to Base Locate the handle assembly over the side posts and fix with 4 x screws provided. Handle Assembly 4 X screws Side Posts...
Page 4 Upper & Lower gun holder Vacuum Cleaner Location Upper Gun Holder Push upper gun holder into the handel post as shown Fix the vacuum cleaner onto the base platform Lower gun Holder using the location points Location recess Locate & push down to lock into place Location points Base platform...
Page 5 Completed Assembly...
