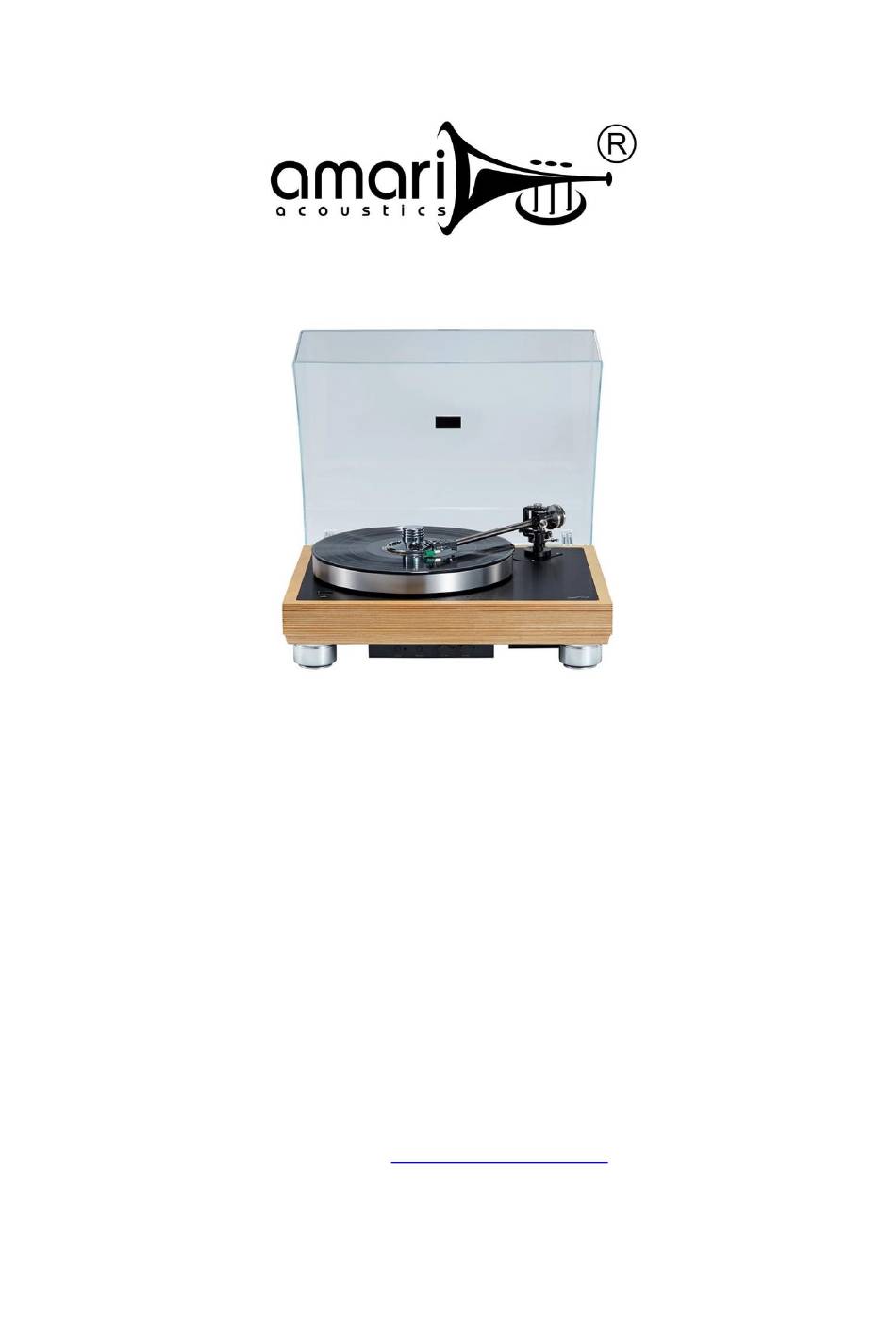

- Page 1 LP-18s Manual AMARI Audio equipment co.,LTD www.amari.cc Email:amari@vip.163.com...
-
Page 2: Packing List
Preface Thank you very much for purchasing Armani vinyl record player products. Please read this manual carefully before use. Save all packaging materials. The player can only be moved or transported using the original packing. Not using the original packing with increased risk of damage during transportation. Do not open the motor cover. - Page 3 LP-18s Record Player Additional tonearm counterweight suitable for cartridge heavier than 6 grams.
-
Page 4: Installation Procedure
LP-18s Record Player Installation Procedure 1. Place the turntable base on a horizontal table or platform, use a level ruler to check and adjust the turntable feet such that the base is level. After adjusting, lock the locking collar to maintain the level. - Page 5 LP-18s Record Player 3. Put the belt on the motor wheel and aluminum inner platter. 4. Put the aluminum alloy outer platter on top of the inner platter and ensure the hole of the outer platter is align with the shaft.
- Page 6 LP-18s Record Player 5. Attach the tonearm counterweight to the rear axle end of the phono arm, and adjust the height of the end of the tonearm by turning the VTA adjustment screw, so the tonearm is parallel to the surface of the record. Lock the tonearm in place by tightening the base collar screw.
- Page 7 LP-18s Record Player Components 1. Counterweight – for tracking force adjustment 2. VTA adjustment screw 3. Anti-skate adjustment screw 4. Cartridge 5. Real time RPM display 6. Real time RPM display on/off 7. Turntable On/Off switch (beneath the plinth) 8. Phono amplifier (beneath the plinth) 9.
- Page 8 LP-18s Record Player 1. Support foot lock collar 2. Motor start/stop switch 3. Switch between 33.3/45rpm (The corresponding green LED will turn on) 4. Speed adjustment for 33.3 rpm 5. Speed adjustment for 45 rpm 1. Phono amplifier power input (AC17V*) 2.
- Page 9 LP-18s Record Player Adjustment and playback 1. Connect the turntable motor power supply (DC24V) and the phono amplifier power supply (AC18V). Connect the audio output of the tonearm to the input of the phono amplifier. The pickup selector switch to the MM type (for standard AT-95E cartridge), and the output of the phono amplifier to the inputs of pre-amplifier or integrated amplifier.
- Page 10 LP-18s Record Player About LP-18s The plinth (1) 60mm thick multi-layer wood plinth which absorbs vibration. (2) The bearing, motor, tonearm and feet are all fixed on 60mm thick multi layer wood plinth. The top of the plinth uses 5052 aluminum plate for cosmetic purpose.
- Page 11 Speed Adjustment 33 1/3, 45 rpm speed controlled by electronic speed controller, and speed can be fine-tuned respectively. Speed Monitoring Accurate real-time infrared speed monitoring. Feet (1) Three feet design for full adjustability and leveling capability. (2) The air suspension capsule feet has excellent shock absorption. MM/MC Phono Amplifier Switchable MM and MC phono amplifier.
- Page 12 (6) Tonearm effective length: 239.3mm (7) AT-95E tracking force: 1.5g-2.5g (8) Phono Amplifier Input Impedance: MC 200 Ohms, MM 47K Ohms...
