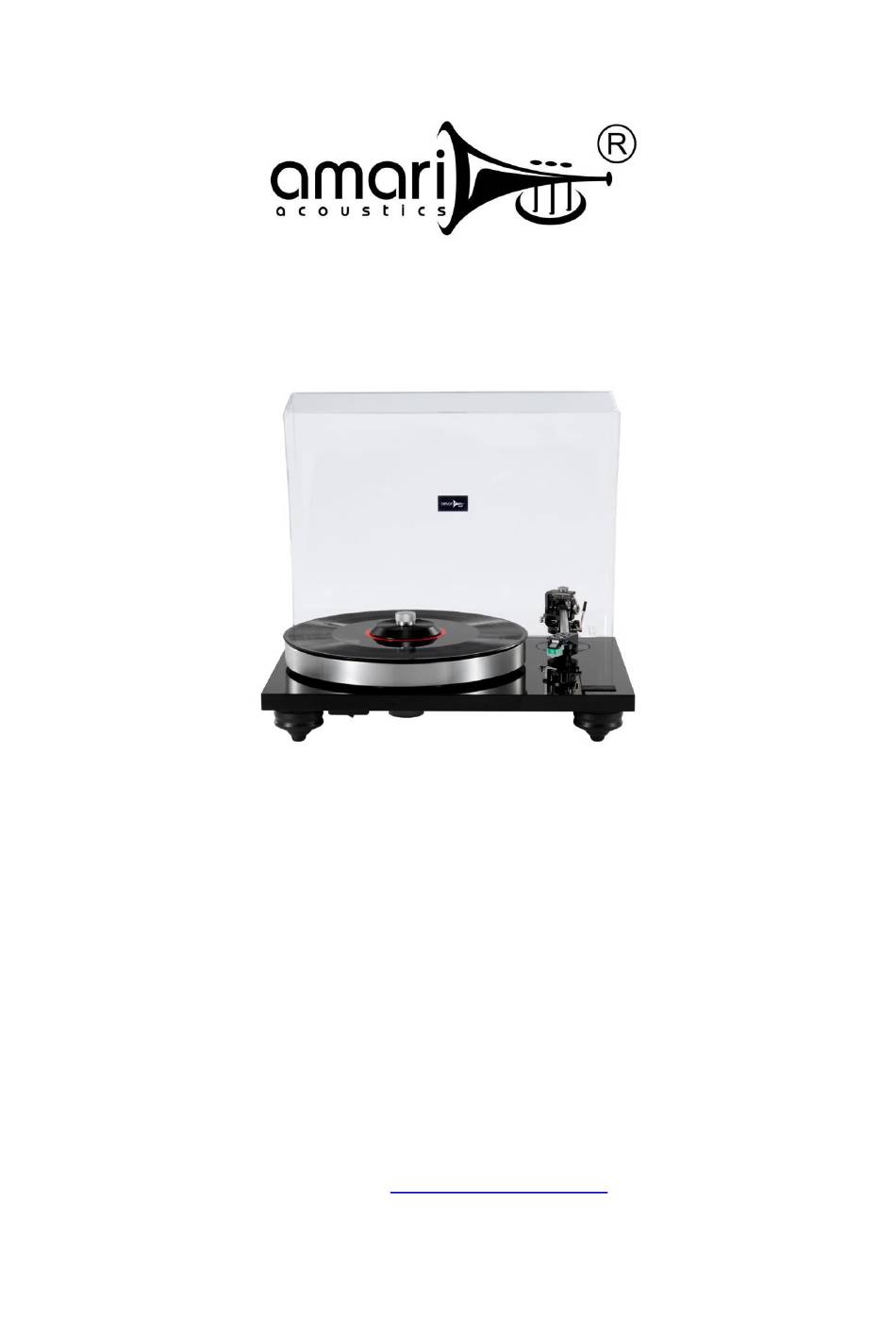

- Page 1 LP-007s Manual AMARI Audio equipment co.,LTD www.amari.cc Email:amari@vip.163.com...
-
Page 2: Packing List
Preface Thank you very much for purchasing Armani vinyl record player products. Please read this manual carefully before use. Save all packaging materials. The player can only be moved or transported using the original packing. Not using the original packing with increased risk of damage during transportation. Do not open the motor cover. - Page 3 LP-007s Record Player Additional tonearm counterweight suitable for cartridge heavier than 6 grams.
-
Page 4: Installation Procedure
LP-007s Record Player Installation Procedure 1. Place the turntable base on a horizontal table or platform, use a level ruler to check and adjust the turntable feet such that the base is level. After adjusting, lock it with a nut to maintain the level. - Page 5 LP-007s Record Player 3. Put the belt on the motor wheel and aluminum inner platter. 4. Put the aluminum alloy outer platter on top of the inner platter and ensure the hole of the outer platter is align with the shaft.
- Page 6 LP-007s Record Player 5. Attach the tonearm counterweight to the rear axle end of the phono arm, and adjust the height of the end of the tonearm by turning the VTA adjustment screw, so the tonearm is parallel to the surface of the record. Lock the tonearm in place by tightening the base collar screw.
- Page 7 LP-007s Record Player Components 1. Counterweight – for tracking force adjustement 2. VTA adjustment screw 3. Anti-skate adjustment screw 4. Cartridge 5. On/Off switch (beneath the plinth) 6. Phono amplifier (beneath the plinth) 7. Motor power supply connector (back of plinth) 8.
- Page 8 LP-007s Record Player 1. Support foot lock nut 2. Motor start/stop switch 1. Phono amplifier power input (DC24V) 2. Phono amplifier output 3. MM/MC switch 4. Phono amplifier input 5. Phono amplifier ground...
- Page 9 LP-007s Record Player Adjustment and playback 1. Connect the turntable motor power supply (AC12V) and the phono amplifier power supply (DC24 V). Connect the audio output of the tonearm to the input of the phono amplifier. The pickup selector switch to the MM type (for standard AT-95E cartridge), and the output of the phono amplifier to the inputs of pre-amplifier or integrated amplifier.
- Page 10 LP-007s Record Player About LP-007s The plinth (1) 20mm thick black acrylic plinth which reduces the center of gravity of the disc and absorbs vibration.. (2) The bearing, motor, tonearm and feet are all fixed on 20mm thick acrylic. Magnetic levitated bearing system (1) Use the Neodymium Iron Boron magnet to float the bearing shaft.
- Page 11 Feet (1) Four feet design for full adjustability and leveling capability. (2) The air suspension capsule feet has excellent shock absorption. MM/MC Phono Amplifier Switchable MM and MC phono amplifier. Tonearm and Cartridge Single point 9 inches tonearm and Audio Technica original AT-95E MM cartridge fitted as standard Cover One piece mounded transparent acrylic cover.
