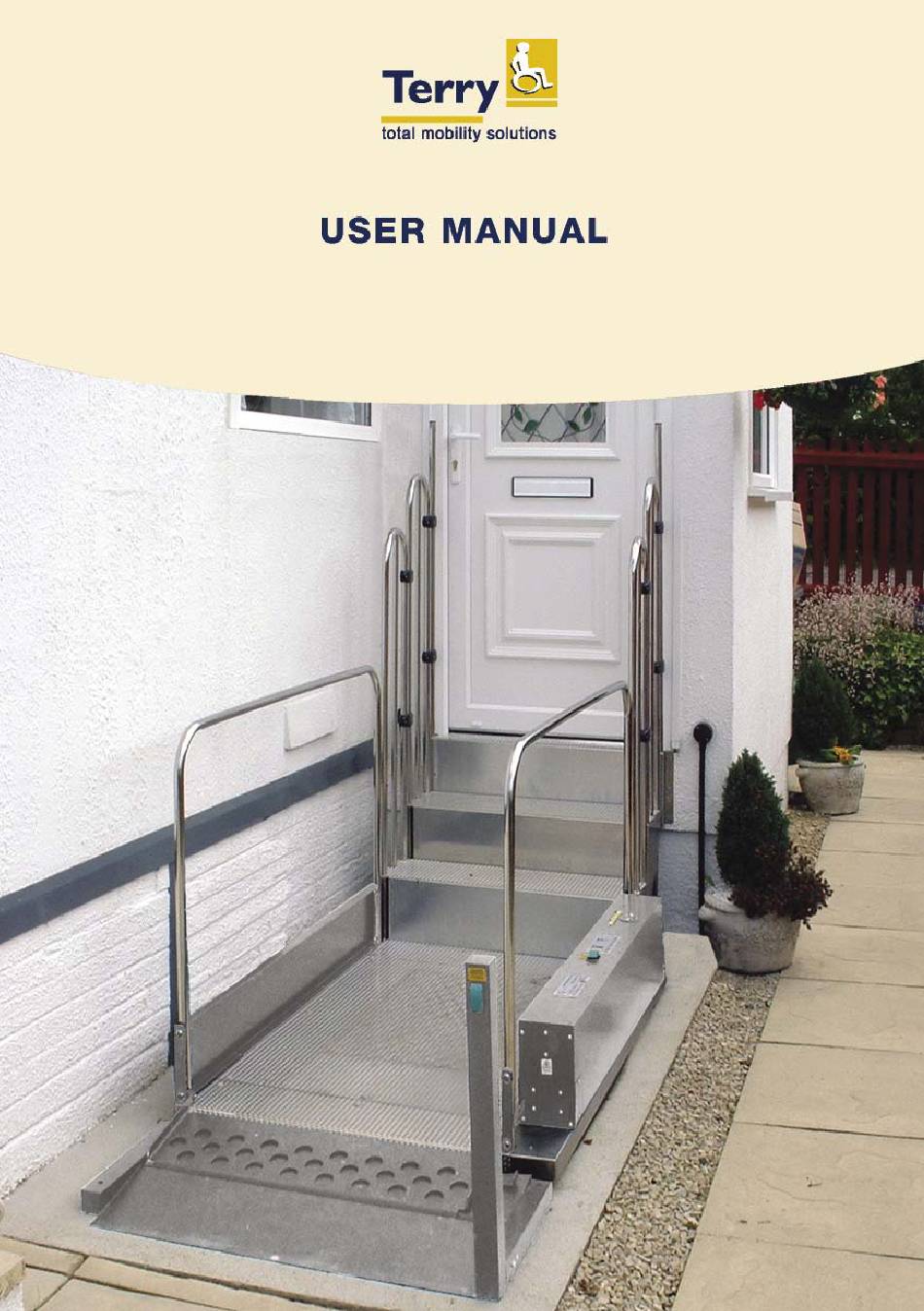

- Page 1 TSL1000 Platform Lift Original instructions...
-
Page 3: Table Of Contents
CONTENTS Introduction Description General Do’s and Don’ts Controls Operating the Lift Emergency procedures Emergency gate lock override Maintenance & Servicing Fault finding Safety feature checks Service history record Declaration of conformity Lift specification... -
Page 4: Introduction
Thank you for choosing the Terry TSL1000 lift, designed and manufactured in the U.K. using the latest technology from Terry Group Ltd. We want you to get the most out of your TSL1000 Lift and to help in this aim, we have produced this small booklet on operation and maintenance of the equipment which we trust you will find helpful. - Page 5 Control Post Platform controls Power pack Ground ramp Standard model Side Entry Model It is most important that before operating the lift you read these instructions fully and are familiar with the controls and operating procedure. Our policy is one of continous product development and the Company reserves the right to change specification without notice.
-
Page 6: General Do's And Don'ts
GENERAL DO’S AND DON’TS • Always leave the power supply to the lift switched on, even when you go away. The lift control circuits are fed by a battery, which must be kept constantly charging. • Never allow children to play on or around the lift. •... -
Page 7: Controls
CONTROLS Location • Lower level control switch(standard installation)-mounted on control post. • Lower level control switch (pit installation / side entry) mounted on the building structure at the lower level. • Platform control switch-mounted on lift platform power pack cover (mounted on handrail if side entry). •... -
Page 8: Operating The Lift
OPERATING THE LIFT If the radio control enabler option is fitted press the key fob to activate the control stations. The lift can be called by maintaining pressure on the call button and waiting for it to stop at the appropriate level. Move on to the platform and apply the wheelchair brakes. -
Page 9: Emergency Procedures
EMERGENCY PROCEDURES a) Isolation of the batteries on the lift is achieved by removing a fuse. This is located at the ramp end of the power pack box on the platform, behind a round blanking plug. Remove the plug to gain access to the fuse, which can simply be pulled out to isolate the batteries. -
Page 10: Emergency Gate Lock Override
Upper level gate (if fitted) MAINTENANCE & SERVICING Provided the operating instructions are observed the lift will give many years of trouble free service. Terry Group Ltd. can quote for servicing on request. Dependent on frequency of use, this lifting platform should be serviced at least every 6 months. -
Page 11: Fault Finding
FAULT FINDING The table below should help solve any problems, which may be stopping your lift from operating correctly. If, however, your lift still does not operate correctly after referring to this table please do not hesitate to call the number on the back of this booklet for further advice. -
Page 12: Safety Feature Checks
SAFETY FEATURE CHECKS As a precautionary measure it is advised that you check the safety features built into the lift on a weekly basis. Carry out the ckecks as discribed below: - • Platform safe edge - With the lift at the upper level call the lift down and once it is moving obstruct the platform safe edge, the lift should stop. -
Page 13: Service History Record
SERVICE HISTORY RECORD An entry should be added to the following table every time the lift is serviced. Date Engineer Company Comments... -
Page 14: Declaration Of Conformity
DECLARATION OF CONFORMITY Lift Type: STEPLIFT 1000 This lift was manufactured by TERRY GROUP Ltd., who declare that this lift fulfils all the relevant provisions of the following Directives: 2004/108/EEC EMC Specifications 2006/42/EC Machinery Directive This lift also fulfils all the relevant provisions of the following... -
Page 15: Lift Specification
LIFT SPECIFICATION Address of manufacturer: Terry Group Ltd. Unit 1 Longridge Trading Estate Knutsford, Cheshire, England WA16 8PR Lift serial No. Year of manufacture Maximum load 250Kg (39 stone) Maximum travel 1 metres Power supply 240V AC ~ 50/60 Hz... - Page 16 This Steplift 1000 has been supplied by: 10199b...
