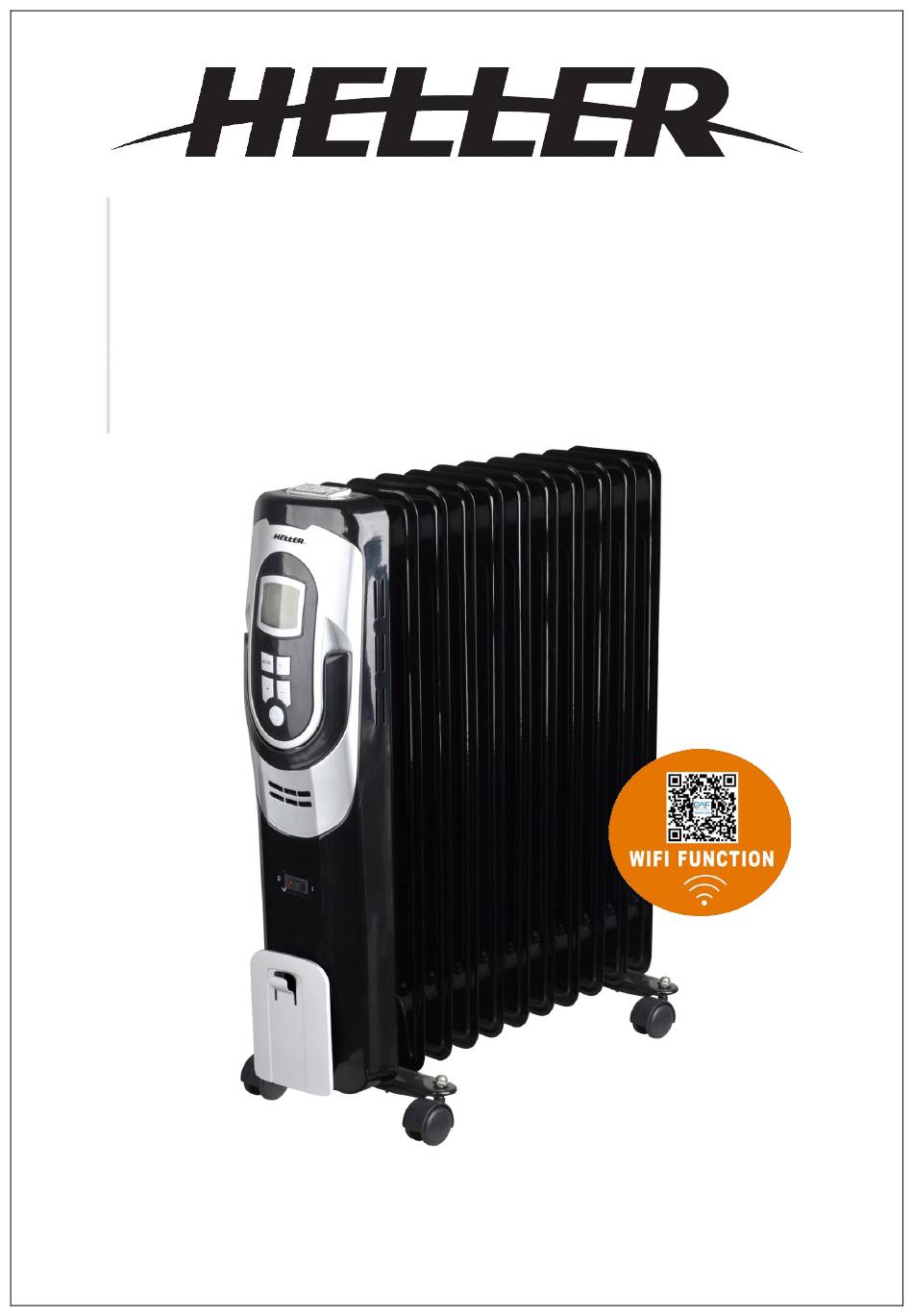

- Page 1 Instruction Manual Oil Heater Model: HCFWF11 Read the instruction manual carefully before use and retain these instructions for reference...
-
Page 2: Important Safeguards
IMPORTANT Read and follow the instructions in this user manual even if you feel you are familiar with the appliance and find a place to keep it handy for future reference. For your convenience record the complete model number (located on the appliance identification plate) and the date you received the product, together with your purchase receipt and attach to the warranty and service information. - Page 3 Always disconnect the plug form the wall socket when the radiator is not in use. • • Do not position the radiator immediately below a socket outlet. • Do not leave the heater running unattended. Do not use the appliance other than its intended use. •...
-
Page 4: Specifications
SPECIFICATIONS Model HCFWF11 Product Description Oil Heater 11FIN with WIFI Voltage 220-240V~ Frequency 50/60Hz Power 2000W-2400W INSTALLATION & LOCATION The appliance requires no installation; it should be used solely as a portable appliance. NOTE: Portable appliances are not suitable for use in a bathroom. The Appliance should be placed with a minimum distance of 1 meter away from flammable objects (e.g. -
Page 5: Operation
OPERATION This heater is equipped with Electronic Digital Controls that provide the ability to set the temperature to the exact degree desired. To operate, simply follow these instructions. NOTE: The temperature display will not reflect the accurate room temperature until the heater has been operating for at least 20 minutes. - Page 6 2. Then press the “MODE” button, the heater enters heating status. The screen blinks at 1second interval. • Press the “+” or “-” button to set the desired temperature, from 13 to30℃. For example, press “+” one time to set temperature to be 25℃. •...
- Page 7 4. Then press “MODE” again, the heater enters into “SET TIMER (AUTO-ON)” status. To press “+” or “-” button to set the heater operation time between 1 and 24 hours. This function will activate once the timer icon stops blinking. The heater will automatically turn-on when time runs out.
- Page 8 WIFI CONNECTION Download the” GAFSmartLife” App from your app store or scan the QR code in in the back of the Instruction Manual. After registering, please do as the following steps: 1. Open app and press “+” to add device or use the add device button. 2.
- Page 9 Step 3 Step 4 Step 5 Step 6 This will then transfer the settings to the heater. Once the connection process has completed, go back to The Home Screen.
-
Page 10: The Home Screen
THE HOME SCREEN The Home screen will be the following showing in the APP after connecting to the WIFI successfully. The device screen is the main control screen for the heater, providing access to the controls to amend the functions and settings. - Page 11 SCENE Scene allows for a one touch button to be added to the Home Screen. The button can be used to change several settings in one go and can change all the settings within the unit. Several scenes can easily be setup, allowing the user to easily change between several preset configurations.
- Page 12 Step 3 Step 4 Important: Once all the functions required have been added, press the Save button in the top right corner to finalize and save your new Scene. It will then be saved to the home screen.
-
Page 13: Profile Tab
AUTOMATION Automation allows an automatic action to be set up for the device. This can be triggered by the Time, and a range of other influences, depending what other GAF Smart Life enabled devices you have on the network. The following is an example for your reference: The following is function example for reference, and this will be different depending what other GAF Smart Life enabled devices you have on the network. -
Page 14: Message Centre
HOME MANAGEMENT Home Management proves options for managing your GAF Smart Life account, giving options such as adding a home, adding and removing rooms, and sharing devices with family. MESSAGE CENTRE View notifications from devices if alarms are set up (dependent on device). TROUBLESHOOTING •... -
Page 15: Cleaning And Maintenance
CLEANING & MAINTENANCE The heater requires regular cleaning to ensure trouble free operation: • Unplug the heater from the mains supply before cleaning. Ensure that the heater has been allowed to cool before cleaning. • Use a damp cloth (not wet) to wipe the exterior of the heater to remove dust and dirt. •...
