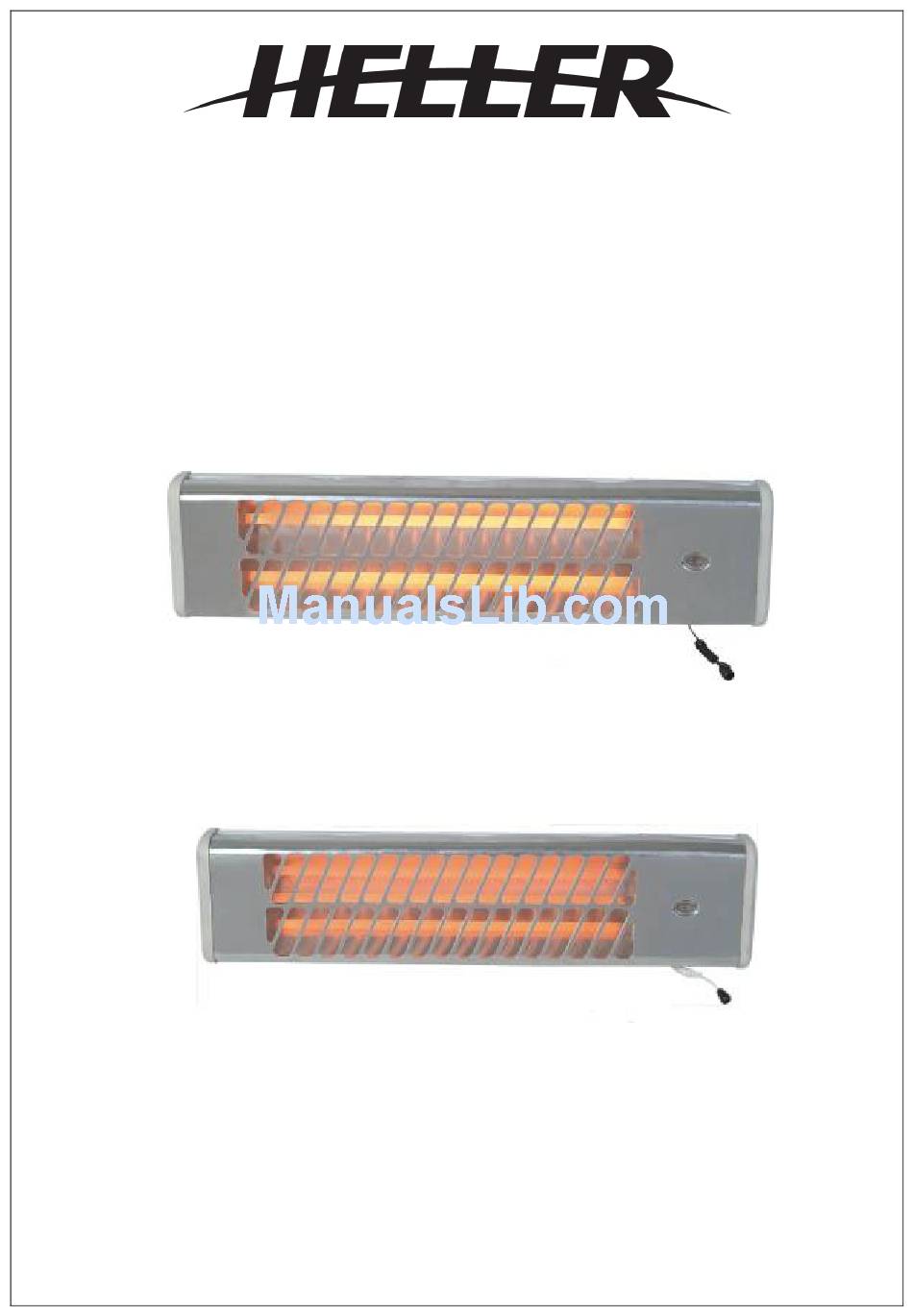

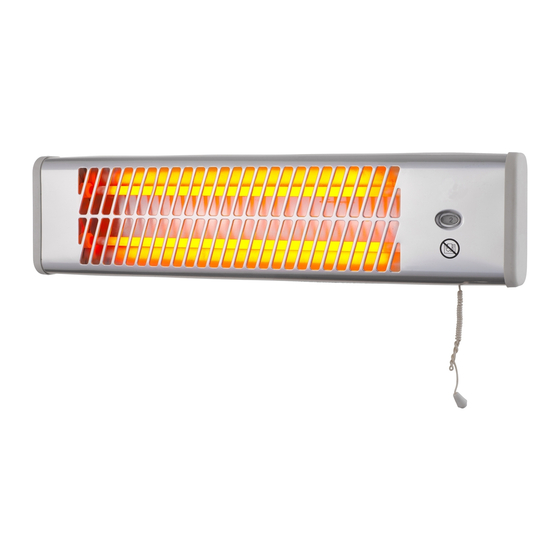

- Page 1 RADIANT STRIP HEATERS User Manual Model Numbers: HSH1200 & HSH1500 HSH1200 1200W Strip Heater – Wall mounted HSH1500 1500W Strip Heater – Wall mounted READ AND SAVE THESE INSTRUCTIONS...
- Page 2 BEFORE FIRST USE Please read and follow the instructions in this user manual even if you feel you are familiar with the product, and find a place to keep it handy for future reference. For your convenience, record the complete model number (located on the product identification plate) and the date you received the product together with your purchase receipt, and attach to the warranty and service information.
- Page 3 • Avoid installation behind a door. • Your radiant strip heater is designed for horizontal wall mounting only, and must not be mounted on the ceiling or floor. • It is strongly recommended that the installation is carried out by a qualified electrician. •...
- Page 4 FEATURES WALL MOUNTING The heater should only be used wall mounted and in proper working condition. CHOOSING THE RIGHT LOCATON: Do not place the heater just below a plug. The heater must be installed at least 1.8 metre above the floor. The heater must be installed at least 0.3 metre away from the ceiling and 0.5 metres away from adjacent wall.
- Page 5 DRILLING HOLES & MOUNTING Loosen and remove the screw on top and bottom of the wall mount (See Figure 3A & 3B). Take out the wall mount cover from above of the heater. (See Figure 3B). When the proper location is chosen, unfold the paper drilling measured by product. Place the paper drilling measure according to the height requirement from the floor;...
- Page 6 Unwind all the power cord, and remove all packaged material. Then connect the heater to a power source of the same voltage, frequency and rating as indicated on the product rating plate before switch on. Pull the pull cord switch down to position: HSH1200 To switch off the heater 600W Heat setting...
- Page 7 SPECIFICATIONS Description Voltage Frequency Wattage 1200W STRIP HEATER - WALL MOUNTED Model HSH1200 220-240V~ 50Hz 1200W 1500W STRIP HEATER - WALL MOUNTED Model HSH1500 220-240V~ 50Hz 1500W CORRECT DISPOSAL OF THIS PRODUCT Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU.
