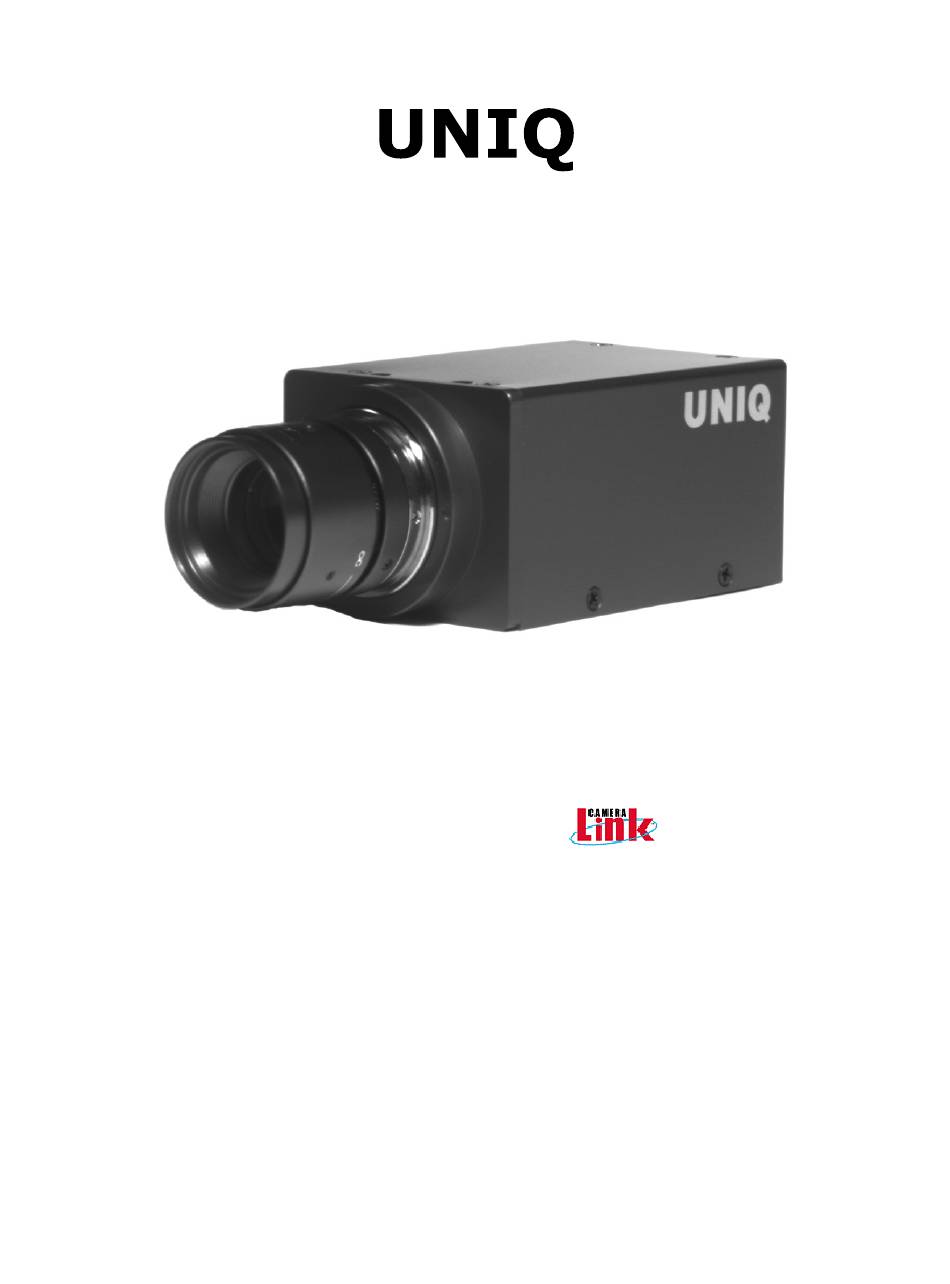

  • Page 1 USS-900CL Digital CCD Camera User's Manual 091-0904 V.1.2 08-09-17...

  • Page 2: Table Of Contents

    Table of Contents Warning ......................... 2 Precautions ......................2 Limited Warranty ....................2 1. Introduction ....................... 3 2. Camera Setup .....................5 3. Camera Functions ....................5 4. RS-232C Communication Control ......…........9 5. Digital Interface Timing ..................10 6. Camera Functional Timing ................. 11 7.

  • Page 3: Warning

    WARRANTY WILL BE VOIDED. PRECAUTIONS Do dot attempt to disassemble, modify, or repair the camera. Contact UNIQ for help. Do not point the camera at bright objects, such as the sun, for a long period. It may cause CCD blooming and permanent damages.

  • Page 4: Introduction

    1. Introduction 1.1 General Description The USS-900CL is a 10-bit digital CCD camera using progressive scan sensor. This compact and lightweight camera offers very high gain video. It’s compatible with Camera Link (CL) frame grabbers in the market. 1.2 Features ·...
  • Page 5 1.5 Camera Specifications Model USS-900CL CCD Sensor 1/2” Hyper HAD progressive scan interline-transfer CCD Chip Size 7.60 mm x 6.20 mm Effective Pixels (H x V) 1392 x 1040 (approx. 5:4 aspect ratio) Unit Cell Size (H x V) 4.65 mm x 4.65 mm...

  • Page 6: Camera Setup

    A basic camera and frame grabber system setup, as shown in Figure 1 below, requires a USS-900CL camera, a standard C-mount lens, a PS-12C power supply or equivalent, a PC system and a VGA monitor, a frame grabber, and an external trigger device if necessary.
  • Page 7 3.2 Mode Switches Selection Designation: NS-Functional select DS-Shutter speed select NR- RS-232C communication Enable RI- Rear plate control Enable NP- AGC PS- MGC Figure 3. Mode switches NM-Normal mode AM-Asynchronous mode Timing details of the mode switches are shown in section 6. 3.3 Shutter Speed Dial Switch Shutter speed dial switch is located on the rear panel and there are 16 different positions.
  • Page 8 3.4 Momentary Switch (UP/Down Switch) Position Functional Select (NS) Up/Down Switch Normal Gain Adjustment Move up or down to adjust gain Reference Adjustment Move up or down to adjust reference Factory Page Move up or down to recall factory page User Page 1 Up: Recall;...
  • Page 9 3.6 26-Pin Camera Link Connector PIN NO. CAMERA LINK UNIQ CAMERA FUNCTION SYMBOL SYMBOL 1, 14 INNER SHIELD SHIELD Inner shielding 2, 15 X0-, X0+ DATA0-, DATA0+ Video, LEN and FEN data output 3, 16 X1-, X1+ DATA1-, DATA1+ Video, LEN and FEN data output...

  • Page 10: Rs-232C Communication Control

    4. RS-232C Communication Control UNIQ does not provide its own software program for RS232C communication, contact frame grabber vendor or UNIQ for further details. Command Command Name Notes Error “?” Error will appear on screen if incorrect command is entered Recall user page Must have a number after “ru”...

  • Page 11: Digital Interface Timing

    5. Digital Interface Timing 5.1 Pixel Clock 5.2 Line Enable 5.3 Frame Enable Delay between asynchronous capture and discharge is 1H to 2H. Note: 1. Pixel clock = 25MHz 2. 1 N = 40 nsec 3. H = 1588 N...

  • Page 12: Camera Functional Timing

    6. Camera Functional Timing 6.1 Free Run (shutter speed position 0, 15 fps) 6.2 Free Run (shutter speed position from 1 to F) 6.3 Asynchronous Capture (shutter speed position 0) 6.4 Asynchronous Capture (shutter speed position from 1 to E) 6.5 Asynchronous Capture with Pulse Width Control (shutter speed: F)
  • Page 13 6.7 Integration (via 12-pin Hirose connector ONLY) The USS-900CL camera can be integrated up to 2 seconds without severe noise or dark current effect. To start integration, pin #11 (same as pin #27 of 40-pin digital connector) of the 12-pin connector must be connected to GND or 0V.

  • Page 14: Camera Accessories

    Contact UNIQ for vendor list. 7.2 Lens C-mount lens is the standard lens for USS-900CL camera. There are a variety of C-mount lenses in the market that works with USS-900CL camera. Make sure the quality and specification of the lens match the camera's application.
