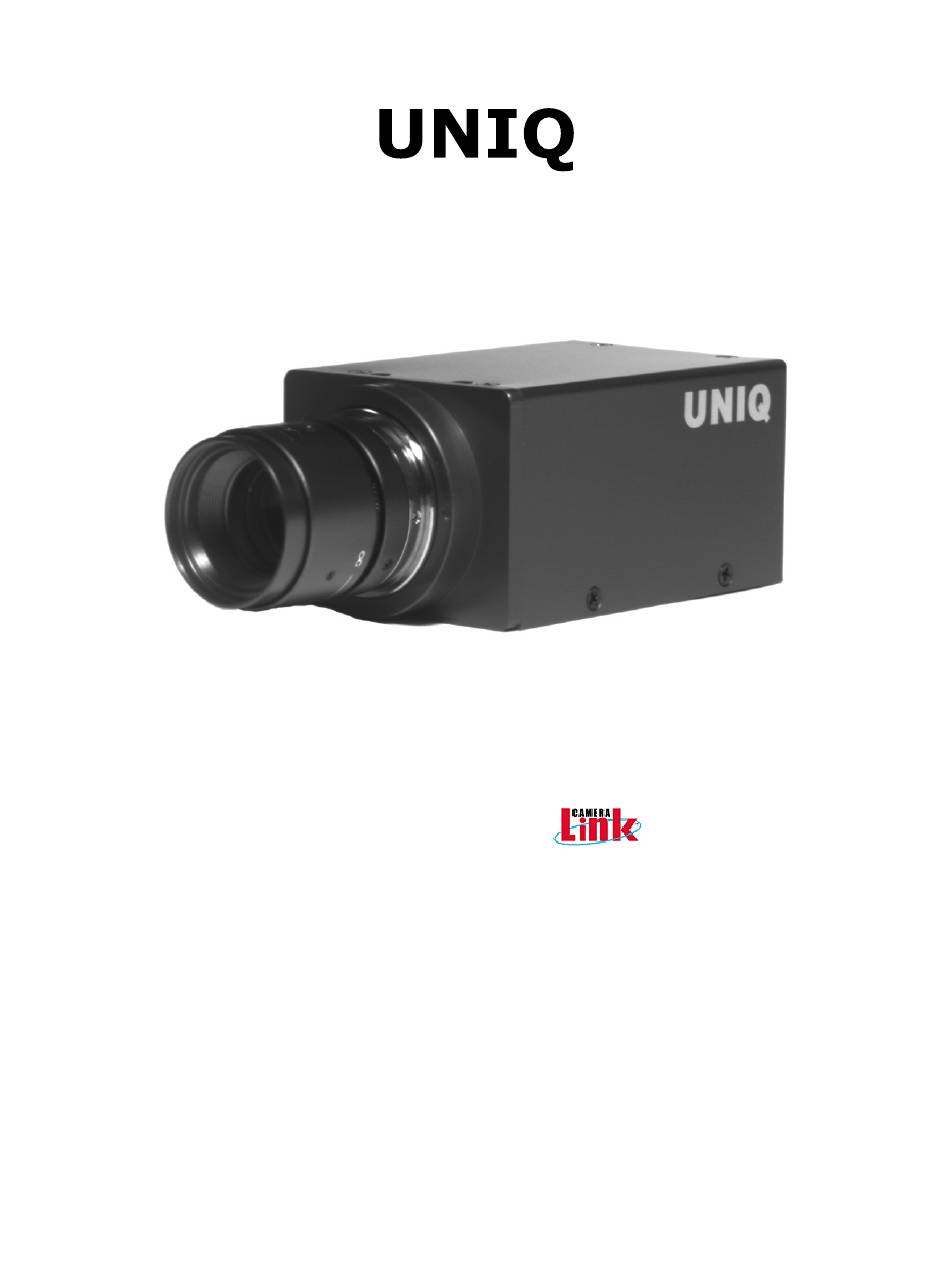

UC-800CL
Color CCD Camera
User's Manual
091-0801 V.1.4
08-09-17

Advertisement

Table of Contents
loading

Related Manuals for Uniq UC-800CL

Summary of Contents for Uniq UC-800CL

  • Page 1 UC-800CL Color CCD Camera User's Manual 091-0801 V.1.4 08-09-17...

  • Page 2: Table Of Contents

    Table of Contents Warning ......................... 2 Precautions ......................2 Limited Warranty ....................2 1. Introduction ....................... 3 2. Camera Setup .....................5 3. Camera Functions ....................5 4. RS-232C Communication Control ......…........9 5. Digital Interface Timing ..................10 6. Camera Functional Timing ................. 11 7.

  • Page 3: Warning

    WARRANTY WILL BE VOIDED. PRECAUTIONS Do dot attempt to disassemble, modify, or repair the camera. Contact UNIQ for help. Do not point the camera at bright objects, such as the sun, for a long period. It may cause CCD blooming and permanent damages.

  • Page 4: Introduction

    1. Introduction 1.1 General Description The UC-800CL is a color digital CCD camera using progressive scanning interline-transfer technology with R, G, B primary color mosaic filters (Bayer arrangement). A frame grabber collects raw data and displays color images by software conversion. With the asynchronous capture control, high speed moving objects can be captured precisely.
  • Page 5 1.5 Camera Specifications Model UC-800CL CCD Sensor 1/3” Hyper HAD progressive scan interline-transfer CCD Chip Size 5.80 mm x 4.92 mm Effective Pixels (H x V) 1024 x 776 Unit Cell Size (H x V) 4.65 mm x 4.65 mm...

  • Page 6: Camera Setup

    2. Camera Setup A basic camera and frame grabber system setup, as shown in Figure 1 below, requires a UC-800CL camera, a standard C-mount lens, a PS-12C power supply or equivalent, a PC system and a VGA monitor, a frame grabber, and an external trigger device if necessary.
  • Page 7 3.2 Mode Switches Selection Designation: NS-Functional select DS-Shutter speed select NR- RS-232C communication Enable RI- Rear switch control Enable NP- Reserved for custom options PS- Reserved for custom options Figure 3. Mode switches NM-Normal mode AM-Asynchronous mode Timing details of the mode switches are shown in section 6. 3.3 Shutter Speed Dial Switch Shutter speed dial switch is located on the rear panel and there are 16 different positions.
  • Page 8 36 dB. Adjusting the gain potentiometer located on rear panel will change the gain value. Automatic gain control (AGC): AGC is not available and it is not recommended to use. Contact UNIQ for further details. Figure 6. Gain potentiometer...
  • Page 9 3.6 26-Pin Camera Link Connector PIN NO. CAMERA LINK UNIQ CAMERA FUNCTION SYMBOL SYMBOL 1, 14 INNER SHIELD SHIELD Inner shielding 2, 15 X0-, X0+ DATA0-, DATA0+ Video, LEN and FEN data output 3, 16 X1-, X1+ DATA1-, DATA1+ Video, LEN and FEN data output...

  • Page 10: Rs-232C Communication Control

    4. RS-232C Communication Control UNIQ does not provide its own software program for RS232C communication, contact frame grabber vendor or UNIQ for further details. Command Command Name Notes Error “?” Error will appear on screen if incorrect command is entered Recall user page Must have a number after “ru”...

  • Page 11: Digital Interface Timing

    5. Digital Interface Timing 5.1 Pixel Clock 5.2 Line Enable 5.3 Frame Enable Note: 1. 1 N = 25.00 nsec 2. 1 H = 1131 N...

  • Page 12: Camera Functional Timing

    6. Camera Functional Timing 6.1 Free Run (shutter speed position 0, 45 fps) 6.2 Free Run (shutter speed position from 1 to F) 6.3 Asynchronous Capture (shutter speed position 0) 6.4 Asynchronous Capture (shutter speed position from 1 to E) 6.5 Asynchronous Capture with Pulse Width Control (shutter speed: F)
  • Page 13 6.6 External Synchronization and Gen-lock (via Camera Link interface ONLY) The UC-800CLcamera automatically locks to the external sync source. The external sync source must match the camera HD and VD specification, which are 35.33 KHz and 45.00 Hz respectively. Both external HD and VD are TTL level signals. a) HD 2.5V to 5V 0V or GND...

  • Page 14: Camera Accessories

    Hirose 12-pin connector for power source. The matting cable plug connector can be purchased through distributors or UNIQ and the Hirose part number is HR10A10P12S. UNIQ provides power supplies and power cables as "one stop shopping" for customers. Alternatively, the power supplies and power cables can be purchased through power supply and cable vendors.
