- Page 1 BUILT- IN COOKING APPLIANCES User Manual MODELS CVE612, CVE614, CVE662, CVEP614...
-
Page 2: Table Of Contents
Simpson manufacturer’s warranty provided with your product. Products must be used, installed and operated in accordance with this manual. You may not be able to claim on the Chef and Simpson manufacturer’s warranty in the event that your product fault is due to failure to adhere this manual. -
Page 3: General Safety
GENERAL SAFETY • Do not push down on the open oven door. TIPS & INFORMATION • In order to avoid overheating, the appliance must not Important – check for any damage or marks be installed behind a decorative door. If you find the appliance is damaged or marked, you must •... -
Page 4: Description Of Your Appliance

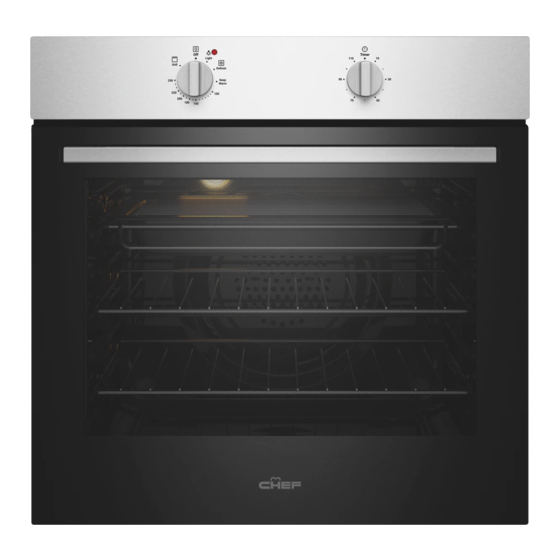

DESCRIPTION OF YOUR APPLIANCE CVE612 UNDERBENCH OVEN MULTIFUNCTION 3 Oven temperature selector Timer CVE614 UNDERBENCH OVEN MULTIFUNCTION 7 Oven function selector 3 button progammable clock Oven/Grill temperature selector CVE662 SEPARATE GRILL WALL OVEN MULTIFUNCTION Oven temperature selector Separate Grill Timer... -
Page 5: Installation
INSTALLATION WARNING WARNING USE AN AUTHORISED PERSON IMPORTANT: This appliance must be properly earthed. As stated in the local municipal building codes and other • Do not lift the appliance by the door handles. relevant statutory regulations: • Prepare the cupboard opening to match your appliance •... -
Page 6: Underbench Oven
560 (min) Refer to cooktop installation instructions for required clearance between cooktop and oven. CVE612 models come with 10A power cord for ‘Plug & Play’. 10A powerpoint is needed. NOTE: If a powerpoint is fitted it must be accessible with the appliance installed. -
Page 7: Separate Grill Wall Oven & Pizza Oven
SEPARATE GRILL WALL OVEN & PIZZA OVEN CAUTION NOTE: Dimension “D”. A requirement for all separate grill wall ovens and all Duo ovens – for proper ventilation there must be a gap at the bottom rear of the cabinet. This must be a full width opening 20mm deep. -
Page 8: Pyrolytic Underbench Oven
INSTALLATION (CONT.) PYROLYTIC UNDERBENCH OVEN-FLUSH FIT ONLY Your underbench oven looks best when the control panel is directly under the benchtop. An upper infill panel may have to be added if the cooktop placed over the oven is too deep. Refer to cooktop installation instructions for required clearance between cooktop and oven. -
Page 9: Before Operating Your Appliance For The First Time
BEFORE OPERATING YOUR APPLIANCE FOR THE FIRST TIME SETTING THE TIME 5 button programmable clock (where applicable) • After the appliance has been electrically connected, 3 button programmable clock (where applicable) “12” and the “Set Clock” symbol “ “ will flash. After electrically connecting the appliance, you must set the •... -
Page 10: Installing Your Oven Accessories
BEFORE OPERATING YOUR APPLIANCE FOR THE FIRST TIME (CONT.) INSTALLING YOUR OVEN ACCESSORIES 2. Main oven wire side racks (where applicable) The type of oven accessories you receive is dependant on The side racks attach to each side of your oven. There is the model you have purchased. -
Page 11: Shelves And Trays (Cve614 & Cvep614)
Shelves and trays (CVE614 and CVEP614) IMPORTANT The shelves are designed so that they have maximum travel but cannot be accidentally pulled right out. The trays are designed the same way and fit straight into the side racks. To fit a shelf or tray to side racks: •... -
Page 12: Operating The Programmable Clock
OPERATING THE PROGRAMMABLE CLOCK 3 BUTTON PROGRAMMABLE CLOCK Setting the cooking duration Your oven is equipped with a 3 button timer that has the • Select the desired oven function and temperature. following features: • The oven indicator light will glow and the heating source •... -
Page 13: Button Programmable Clock
Setting the delayed start cooking time 5 BUTTON PROGRAMMABLE CLOCK (CVEP614) • Set the cook time and end time as described in the previous sections. • Once both the cook time and end time have been set, the cook time and the end time ‘indicators’ will stop flashing and the current time of day will be displayed. - Page 14 OPERATING THE PROGRAMMABLE CLOCK (CONT.) 5 BUTTON PROGRAMMABLE CLOCK (CONT) Setting the cooking end time 1. Select the desired oven function and cooking temperature. Setting the oven function 2. Press CLOCK button until the END TIME symbol 1. Turn the oven FUNCTION selector clockwise to select appears flashing.
- Page 15 7. To stop the signal, press any button on the clock. Switching the clock display ON and OFF When the oven is off, the clock display can be switched on 8. To cancel the minute minder, press the button and the and off.
-
Page 16: Using Your Oven
It will cook at a lower temperature and be faster than baking. Please note that some variation in browning is normal. NOTE: For models CVE612 and CVE662, to set up this function, simply choose cooking temperature on control panel, easy. -
Page 17: Cooling/Venting Fan
COOLING/VENTING FAN Your built-in appliance is fitted with a cooling fan. It will operate whenever you are using your oven or grill and will blow warm air across the top of the oven door. In some appliances the cooling fan may continue to operate after the appliance is turned off. -
Page 18: Operating Your Oven Temperature Selector
USING YOUR OVEN (CONT.) OPERATING YOUR OVEN TEMPERATURE SELECTOR PRE-HEATING YOUR APPLIANCE A thermostat controls the temperature in your appliance. Pre-heating your appliance is recommended in cooking and The temperature can be selected within the specified range. grilling functions. For best results when baking you must To set the temperature, turn the temperature selector in a preheat your oven for 30 minutes. -
Page 19: Cooking Guide
COOKING GUIDE COOKING GUIDE Oven shelf location • Select the correct shelf location for food being cooked. (CVE614 & CVEP614 models only) • Make sure dishes will fit into the oven before you switch it on. Your oven has seven positions for shelves. These are •... -
Page 20: Choosing The Best Oven Settings
COOKING GUIDE (CONT.) CHOOSING THE BEST OVEN SETTINGS The following table is intended as a guide and experience may show some variation in cooking times necessary to meet individual requirements. For best baking results preheat the oven for 30 minutes. FOOD NON FAN MODE FAN MODE OVEN... -
Page 21: Roasting Meat
ROASTING MEAT ROASTING POULTRY AND FISH 1. Place the meat in the oven and set the temperature 1. Place the poultry or fish in an oven set at a moderate between 180°C and 200°C. (It is recommended to wrap temperature of 180°C. your meats in an oven roasting bag or foil to prevent fats 2. -
Page 22: Grilling Guide
GRILLING GUIDE GRILLING HINTS GUIDE TO BETTER GRILLING No definite times can be given for grilling because this WARNING depends on your own tastes and the size of the food. These times should only be used as a guide and remember to turn Note: Always clean the grill/oven dish after every use. -
Page 23: Dealing With Cooking Problems
DEALING WITH COOKING PROBLEMS PROBLEM CAUSES REMEDY Uneven cooking Incorrect shelf position Select shelf that puts food in centre of oven Oven tray too large Try other trays or dishes Trays not in centre Put trays in centre Air flow in oven uneven Rotate food during cooking Grill tray affecting thermostat Remove grill tray from oven on bake modes... -
Page 24: Get To Know Your Oven
GET TO KNOW YOUR OVEN GET TO KNOW YOUR NEW OVEN WITH THIS Method: ‘SIMPLE TEST CAKE’ 1. Butter base and sides of two, 20cm straight-sided round Although we strive for a perfect performing oven, it’s or square cake pans. Then line the base with grease proof possible that there will be some variation in colour when or baking paper. -
Page 25: Cleaning Your Appliance
CLEANING YOUR APPLIANCE GLASS TIPS & INFORMATION • Glass surfaces on doors are best cleaned immediately after soiling. Important: • A damp cloth may help remove baked on food deposits. • Always make sure that the oven is electrically isolated before cleaning. - Page 26 CLEANING YOUR APPLIANCE (CONT.) Removing the wire side racks (where applicable) Removing and replacing the oven back light and side light (where fitted) • Grasp the middle wire at the front. • Turn oven back light glass anticlockwise to remove it for •...
- Page 27 RELEASING THE GRILL ELEMENT Rotating latch models • Rotate latch 180º. Retaining wire models We have designed the upper element with a hanger clip The element will drop down freely. to help you reach your oven roof for cleaning. PIZZA STONE •...
-
Page 28: Cleaning Your Oven Door
CLEANING YOUR OVEN DOOR • Grasp the oven door with a hand each side of the door and remove it from the oven by pulling it towards you. WARNING Do not lift the door by the handle. Rough handling will cause glass to break. - Page 29 Removing door glass panels (2 layer and 3 layer doors) Re-assembling bottom trim • Push down to “snap” each side of bottom trim back into WARNING door columns. Rough handling, especially around the edges can cause the glass to break. •...
- Page 30 CLEANING YOUR OVEN DOOR (CONT.) Re-assembling top door trim Fitting the oven door • Hold the top door trim at each side and position it to the • Take hold of the oven door with a hand on each side and inside edge of the glass.
-
Page 31: Cleaning Your Oven Door (Pyrolytic Models)
CLEANING YOUR OVEN DOOR (PYROLYTIC MODELS) CLEANING THE 4 LAYER DOOR (PYROLYTIC MODELS) CAUTION Do not lift the door by the handle. Rough handling will cause glass to break. Removing the oven door IMPORTANT Your oven is equipped with a door that can be disassembled in order to clean all the panes of glass. - Page 32 CLEANING YOUR OVEN DOOR (PYROLYTIC MODELS) (CONT.) Removing the door glass panels Chamfer to be located in this corner CAUTION Rough handling, especially around the edges can cause the glass to break. • Lift the black bordered glass panel out of the guide and place on something soft and flat to prevent scratches.
- Page 33 • Insert the black bordered glass panel into the upper Fitting the oven door position, ensuring the painted surface is facing the • Take hold of the oven door with a hand on each side and downside as per the diagram below.. with the door at an angle of 30˚, position the recesses at the bottom of the door onto the hinge arms of the oven.
-
Page 34: Pyrolytic Cleaning
PYROLYTIC CLEANING Pyrolytic Cleaning of the Oven Cavity (Pyrolytic models only) IMPORTANT During the pyrolytic cleaning function, it is advisable not to The oven has a pyrolytic self-cleaning function. It cleans by use a cooktop if it is fitted above the oven. This could cause burning off the spatters and accumulated dirt and grease overheating and damage to both appliances. -
Page 35: Solving Problems
SOLVING PROBLEMS Faults NOTE: We may charge for service even in the warranty period if your problem is due to the causes listed below. If there is a problem with the oven and/or grill, please: • Check the points listed below before calling for service. Data Plate It may be possible to avoid a call by fixing the problem When you need information, service or replacement parts please:... -
Page 36: Notes
NOTES 36 NOTES Built-in Cooking... - Page 37 NOTES Built-in Cooking NOTES 37...
- Page 38 NOTES 38 NOTES Built-in Cooking...
-
Page 39: Warranty
(c) ‘ASC’ means Electrolux’s authorised serviced centres; the Appliance; (d) ‘Chef’ is the brand controlled by Electrolux Home Products Pty Ltd In addition, Electrolux is not liable under this warranty if: of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004 762 341... - Page 40 LIKE TO KNOW MORE? Contact us if you need more help Australia phone: ............... 13 13 49 email: ........ customercare@electrolux.com.au website: .......... chefappliances.com.au WE ARE PART OF THE ELECTROLUX FAMILY. TO ADD A TOUCH OF PROFESSIONAL INSPIRATION TO YOUR HOME, VISIT ELECTROLUX.COM ©...
