Thank you for purchasing this Novopro product.
Unpacking and safety: Please unpack your new product carefully. Your product should reach you in perfect condition, so please check
that no damage has occurred during transit. If any damage is found or there are any missing pieces from the packing list, please contact
the retailer you purchased it from immediately. Do not attempt to assemble it unless you have everything listed below.

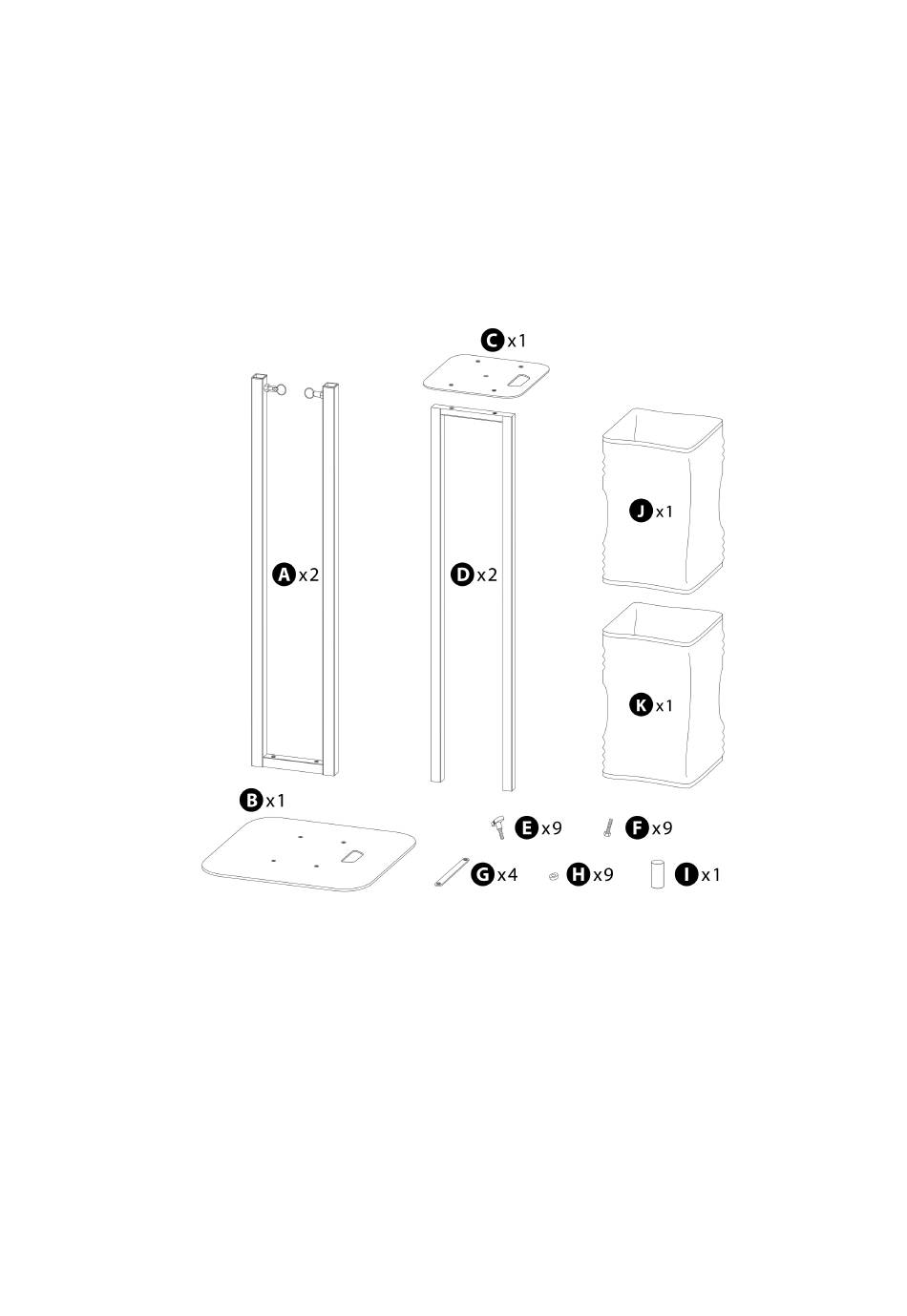

Packing list

A: 2 x base support legs with height adjustment mechanisms | B: 1 x base plate with integral cut out handle
C: 1 x top plate with integral cut out handle | D: 2 x top support legs | E: 9 x M8 hand-tightening bolts
F: 8 x M8 standard bolts | G: 4 x cross brace supports (when using at extended heights) | H: 9 x M8 x 2mm washers
I: 1 x 35mm pole mount speaker adaptor | J: PS1XXL white scrim | K: PS1XXL black scrim | L: Plastic collar inserts (not shown)
2 x EVA foam pads for top plate (not shown) | Hook-and-loop fastener cable ties for securing cables (not shown)
1 x bag for base & top support legs (not shown) | 1 x bag for top plate and baseplate (not shown)
NOTE: part D is supplied already pre-fitted inside part A with a plastic collar insert L. Separating these parts may damage the plastic
collar inserts and they should never normally need to be separated.
Assembly (see diagrams on the following two pages for easy guidance).

Step 1 (diagram A)

Ensure that you have everything listed above then begin by attaching the two top support legs (D) to the top plate (C). Do this by screwing
four of the M8 hand-tightening bolts (E) through two of the cross brace supports (G) and through the top support legs (D) and finally into
the top plate (C). Hand-tighten only, never over-tighten as you may damage the thread. Please note: the PS1XXL can be configured and
assembled by using either the M8 hand tightening bolts (E) or by using the M8 standard bolts (F) when dis-assembly is not required at the
end of your events.
Important: the unit comes with 4 x cross brace supports (G) which will reduce any lateral movement when using the PS1XXL at extended
heights. If you will not be using these cross brace supports, then please replace these with the M8 x 2mm washers (H) to ensure the bolts
do not protrude through the integrated nuts on the top and base plates (as shown on diagram E).

Step 2 (diagram B)

Next attach the two base support legs (A) to the base plate (B). Do this by screwing four of the M8 hand-tightening bolts (E) through two of
the cross brace supports (G) and through the base support legs (A) and finally into the base plate (B).
Step 3 (diagrams C)
Ensure that all four height adjustment mechanism locks are 'unlocked' by pulling the pins out from the locks and rotating the rings (see
diagram C). The top support legs (D) can now be set your desired height within the base support legs (A). Lock the height of the unit by
engaging the height adjustment pins into the appropriate holes on the side of the top support legs (D) and closing the locks by turning the
rings 90 degrees.
