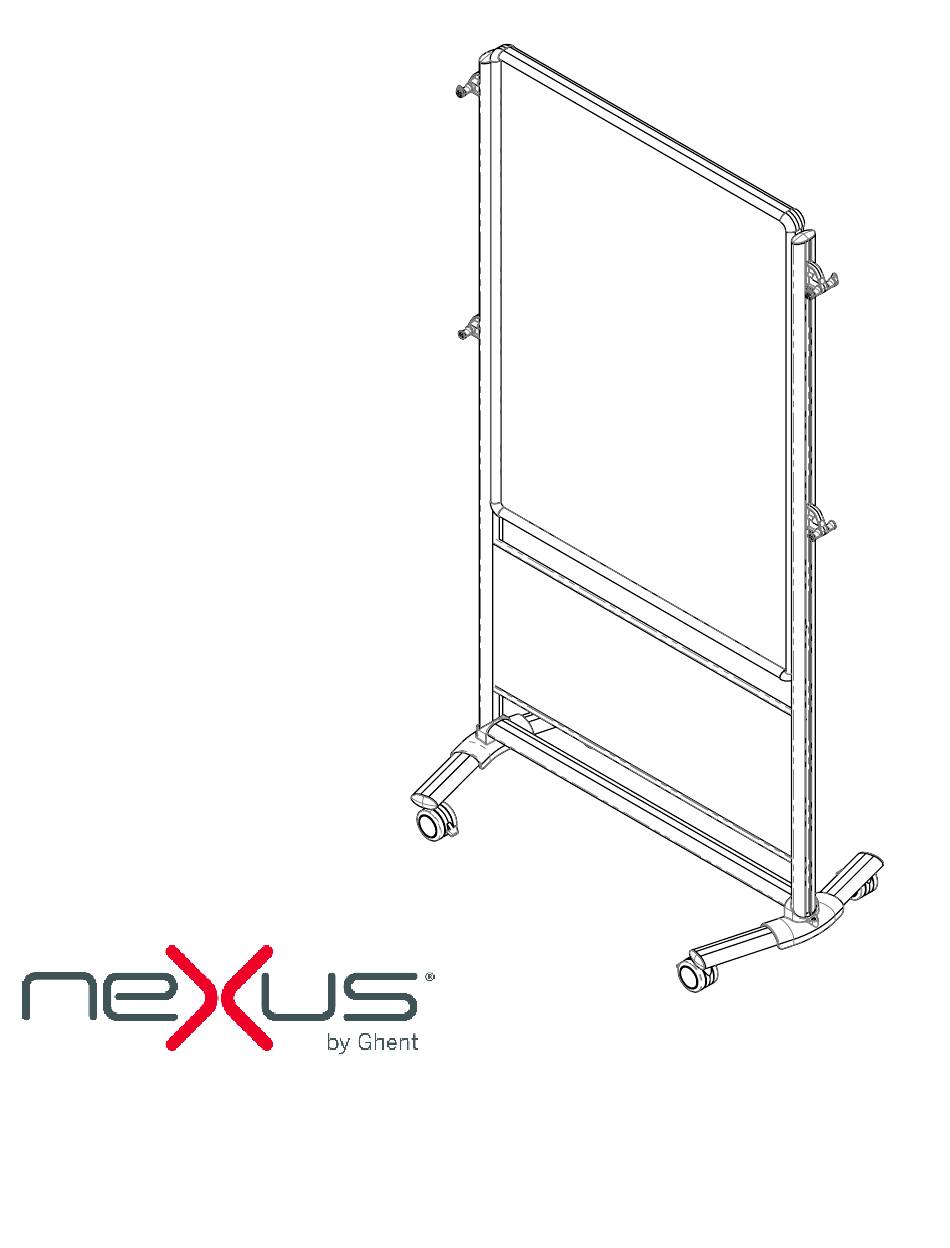

- Page 1 EASEL AND IDEAWALL ASSEMBLY INSTRUCTIONS Models NEX203ME-FR, NEX206MW-FR IS-NEX20XMX 2/18...
- Page 2 Before discarding the packaging, inventory the components and fasteners. (Some may be taped to the foam packaging.) FASTENERS AND HARDWARE (HOOK) TABLET HANGER TABLET HANGER MARKER/ERASER (WITH HOOKS) HOLDER 2 EA. 2 EA. 1 EA. #10 X 2 1/2" PAN HEAD #10 X 1 1/2"...
- Page 3 EASEL AND IDEAWALL COMPONENTS TABLET HANGER (WITH HOOKS) 2 EA. SIDE POST 2 EA. MARKERBOARD 1 EA. TABLET HANGER 2 EA. ACCENT PANEL RAIL 2 EA. ACCENT PANEL 1 EA. CROSS RAIL 1 EA. FOOT ASSEMBLY 2 EA. www.nexusbyghent.com - Lebanon, OH - 800-543-0550...
- Page 4 Insert the accent REFERENCE: panel into the accent SCREW HOLE panel rails. #10 X 2 1/2" PAN HEAD MACHINE SCREW (4 PLACES) USE #2 DRIVER BIT Loosely attach the markerboard and the accent panel, with rails, to the side posts as shown. TABLET HANGER BRACKET (WITH HOOKS)
- Page 5 Attach the foot assemblies to the cross rail, as shown. INSTALL WITH CHANNEL SIDE FACING DOWN ASSEMBLE THE FEET ASSEMBLY ON A FLAT SURFACE, SO THAT THE CASTERS STAY LEVEL. #12 X 1" PAN HEAD MACHINE SCREW (4 PLACES) USE #3 DRIVER BIT WITH A BIT ENTENSION Attach the feet assembly to...
