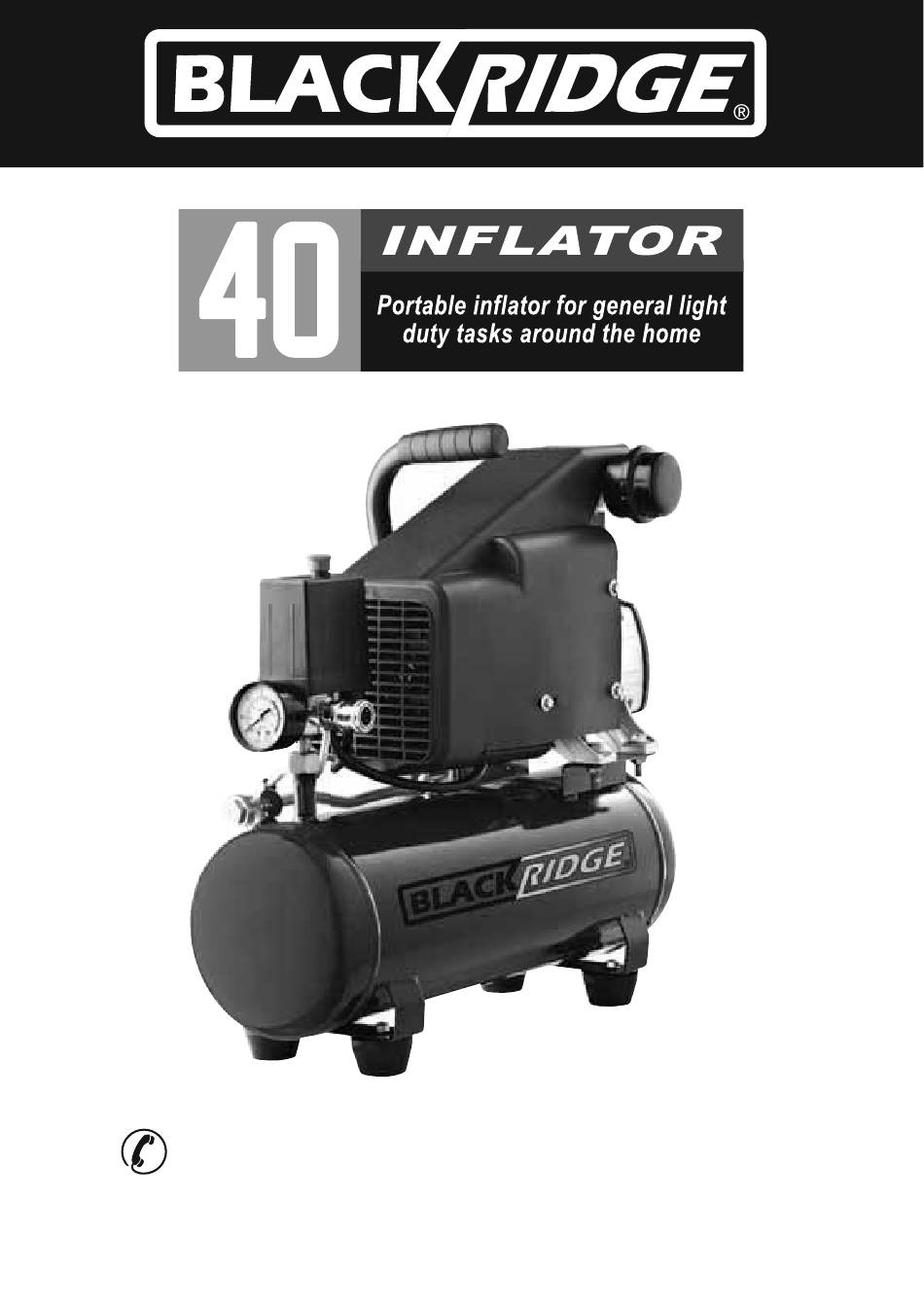

Black Ridge BRI40 Manual
  1. Manuals
  2. Brands
  3. Black Ridge Manuals
  4. Power Tool
  5. BRI40
  6. Manual

Black Ridge BRI40 Manual

Portable inflator
Hide thumbs

Advertisement

Table of Contents

For service, spare parts or product information,
please contact Smart Marketing Group Pty. Ltd.
AUST. 1300 660 457
N.Z. 0800 474 876
02808 08/11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BRI40 and is the answer not in the manual?

Questions and answers

Related Manuals for Black Ridge BRI40

Summary of Contents for Black Ridge BRI40

  • Page 1 For service, spare parts or product information, please contact Smart Marketing Group Pty. Ltd. AUST. 1300 660 457 N.Z. 0800 474 876 02808 08/11...

  • Page 2: Table Of Contents

    SUGGESTED APPLICATIONS CONTENTS You may use most light duty air tools with this Section Page inflator. Some examples of light duty tools are: • Ball Inflator Contents • Toy Inflator Suggested Applications • Tyre Inflator Introduction • Mini Airbrush • Stapler Guarantee 3 –...

  • Page 3: Introduction

    INTRODUCTION What is not covered. • Commercial use of inflator. Dear Customer, • Use of inflator in a commercial premises. Thank you for purchasing this inflator which has • Damage or deterioration due to transport. passed through our extensive quality assurance processes.
  • Page 4 COMPLETE WARRANTY STATEMENT – INFLATOR GROUP As soon as you have purchased the inflator, we Damage caused to attached equipment or third recommend that you check to make sure it is party accessories will not be covered under this intact and that you read the operating instructions warranty.

  • Page 5: General Safety Instructions

    LUBRICATION OF INFLATOR WORK ENVIRONMENT This inflator is OIL FREE. Therefore there is NO oil Do not expose your inflator to rain or use in damp used for lubrication. or wet conditions. Keep the work area well lit. ASSEMBLY GUARD AGAINST ELECTRIC SHOCK This inflator MUST be fully assembled by you prior to use.
  • Page 6 DO NOT ABUSE THE POWER DISCONNECT INFLATOR CORD Ensure that the inflator is disconnected from the mains supply when not in use, before servicing, Never yank or pull on the power cord to making adjustments or when changing any disconnect it from the mains supply socket. Never accessories.
  • Page 7 CHECK DAMAGED PARTS PERSONAL SAFETY Clothing Before using the inflator it should be carefully checked to determine that it will operate properly Do not wear loose clothing, jewellery or anything and perform its intended function. that could get caught in moving machinery. Check for the correct alignment of moving Hair parts ensuring that they do not bind.

  • Page 8: Electrical Information

    IMPORTANT ELECTRICAL DATA This inflator is fitted with a sealed electrical connection plug that is compatible with the mains power supply for Australia / New Zealand and meets the requirements of Australian Standards. This inflator must be connected to a supply voltage that is equal to that stated on the rating label. If the mains power connection plug or power cord becomes damaged it must be replaced with a complete assembly that is identical to the original, and this must be replaced by an authorised service centre.

  • Page 9: Components And Controls

    PIC. 1 COMPONENTS AND CONTROLS Pic. 1 Pressure switch On / Off button - red colour Handle Motor cover Pump Tank Rubber feet Tank drain tap Tank pressure gauge 10. Air filter - metal 11. ‘Nitto style’ outlet socket fitting 12.

  • Page 10: Operating Instructions

    OPERATING INSTRUCTIONS PIC. 2 Unpacking Carefully unpack your inflator. Dispose of all packing material in an environmentally responsible manner. Assembly Your inflator requires minor assembly before initial operation. Check that you have all required components required for assembly and initial use. Rubber Stopper To attach the rubber stoppers to the bracket located on the bottom of the tank;...
  • Page 11 STARTING AND STOPPING PIC. 4 YOUR INFLATOR Pic. 4 Lift button Push button NOTE: Always ensure that you plug your inflator up for on down for off into a standard 240V AC power point. Never use an extension cord as this can lead to a voltage drop which may cause power loss and over heating.
  • Page 12 USING THE INFLATOR TOOL CONFIGURATION The configuration of tools and accessories can Before starting run through this simple list; be varied to suit your particular requirements. 1. Fully assembled. A basic recommended set up is shown in Pic. 5 2. Drain tap – open and drain tank (accessories not included).
  • Page 13 AIR OUTLET PIC. 6 Pic. 6 Note: This inflator has been supplied with no adjustable regulator and gauge. Different air tools require different operating Tank pressure pressures. Always check with the tool gauge manufacturer if unsure. This compressor only has 8Bar pressure. If you Nitto style require adjustable pressure you will need to buy a outlet...

  • Page 14: Maintenance

    AIR OUTLET PIC. 8 Pic. 8 This inflator is fitted with a ‘Nitto style’ air fitting. To use: 1. Slide the outer collar down. 2. Push in the male fitting (not included). 3. Release the collar. 4. Fully and completely push the male fitting (not included) into the female until it clicks.

  • Page 15: Trouble Shooting

    CLEANING REPAIRS ENSURE the inflator is NOT running whilst Repairs to your inflator should only be carried out cleaning. To keep the inflator clean, always by an authorised service agent. wipe down after use. Wear eye protection when Call BLACKRIDGE for your closest centre, Aust. cleaning.

  • Page 16: Technical Information

    TECHNICAL INFORMATION Specifications Inflator BRI40 Voltage 240V AC ~ 50Hz Motor 1 HP Wattage 750W Oil free No Load Speed 2800 RPM Free Air Delivery 40L per minute* Tank Size For any queries or assistance call Customer Service AUST. 1300 660 457 NZ 0800 474 876 Hours of operation: Monday to Friday 8.30am - 5.30pm AEST...
