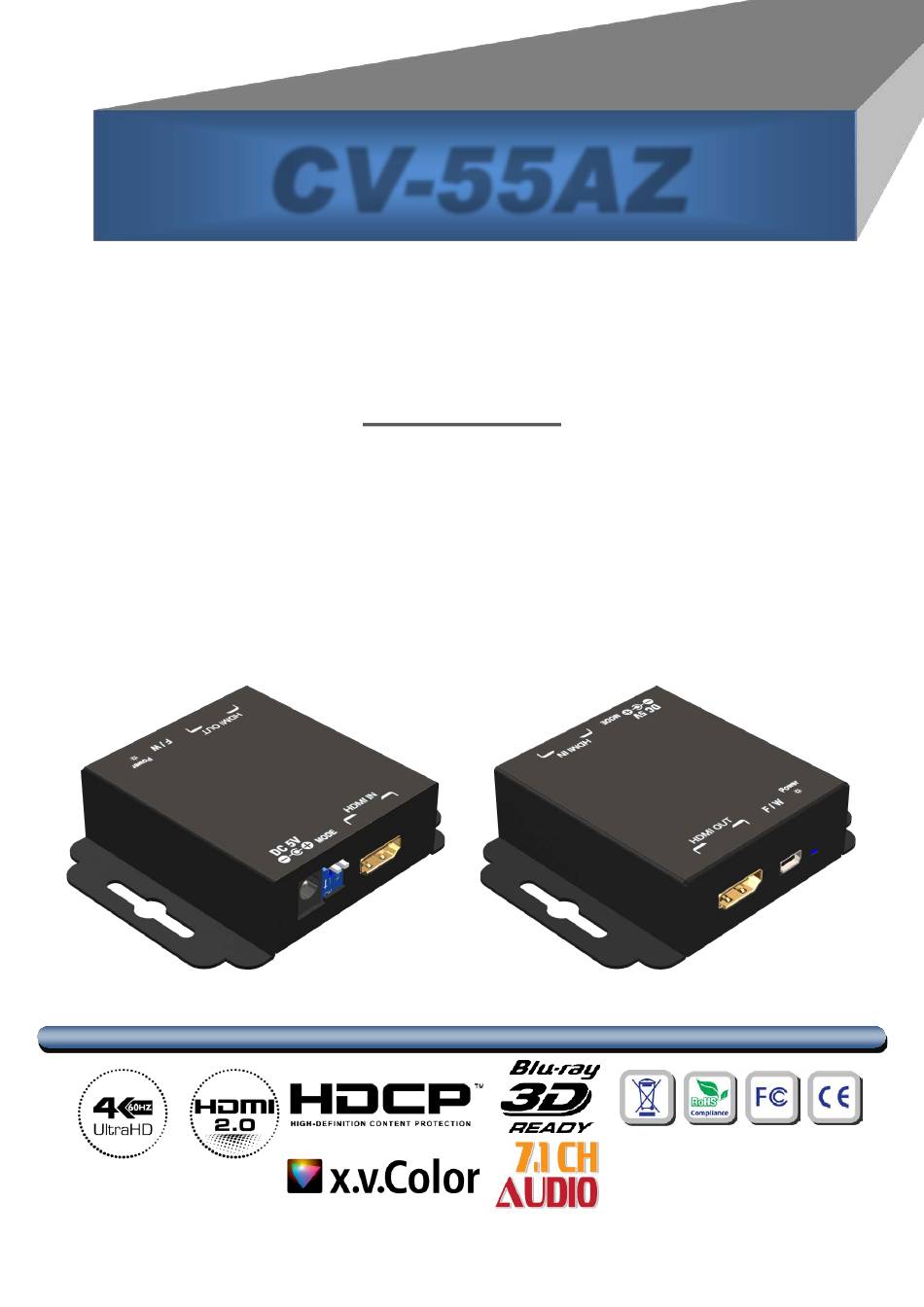

- Page 1 CV-55AZ HDMI 2.0a Repeater User Manual rev: 140505 Made in Taiwan...
- Page 2 However, like all electronic equipments, the CV-55AZ should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
- Page 3 INTRODUCTION The CV-55AZ HDMI Repeater boosts up your HDMI extension transmission over long cable and makes multiple layer cascading of HDMI products possible. The CV-55AZ amplifies and equalizes the HDMI signal to provide high quality audio and video. FEATURES ...
- Page 4 SPECIFICATIONS Model Name CV-55AZ Technical Role of usage HDMII to HDMI Repeater HDMI compliance HDMI 2.0a HDCP compliance Input Video bandwidth Single-link 594MHz [18Gbps] Video support HDR 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits) Audio support Bypass [1] Human body model — ±19kV [air-gap discharge] & ±12kV [contact discharge] ESD protection [2] Core chipset —...
- Page 5 PANEL DESCRIPTIONS Front Panel 5V DC power jack Dip Switch: PIN #1: ON [] FW update mode OFF [] Working mode PIN #2: Reserved HDMI IN: Connect to a HDMI source with a HDMI male-male cable here Rear Panel HDMI OUT: Connect to a HDMI display with a HDMI male-male cable here. Mini USB for FW update LED: Power indicator...
- Page 6 CONNECTION DIAGRAM...
- Page 7 SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the CV-55AZ features and specifications is subject to change without further notice.
