- Page 1 CV-5005Z-G HDMI 2.0a Retimer/Repeater with EDID Management User Manual rev: 200504 Made in Taiwan...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ........................ 1 FEATURES ......................... 1 PACKAGE CONTENTS ...................... 1 SPECIFICATIONS ......................2 PANEL DESCRIPTIONS ....................3 DIP SWITCH SETTING ...................... 4 CONNECTION DIAGRAM ....................5 OPERATION APPROACH ....................6 WARRANTY ........................9... -
Page 3: Introduction
HDMI products possible. The CV-5005Z-G amplifies and equalizes the HDMI signal to provide high quality audio and video. The power can be provided by HDMI source which follows HDMI spec to provide 5V. If the source cannot provide enough power, the external power can be added to extend HDMI2.0a signal. -
Page 4: Specifications
SPECIFICATIONS Model Name CV-5005Z-G Technical Role of usage HDMII to HDMI Retimer/Repeater HDMI compliance HDMI 2.0a HDCP compliance Input Video bandwidth Single-link 594MHz [18Gbps] Video support Up to HDR 4K2K@60 (4:2:0 10bits) / 4K2K@60 (4:4:4 8bits) Audio support Bypass ESD protection Human body model —... -
Page 5: Panel Descriptions

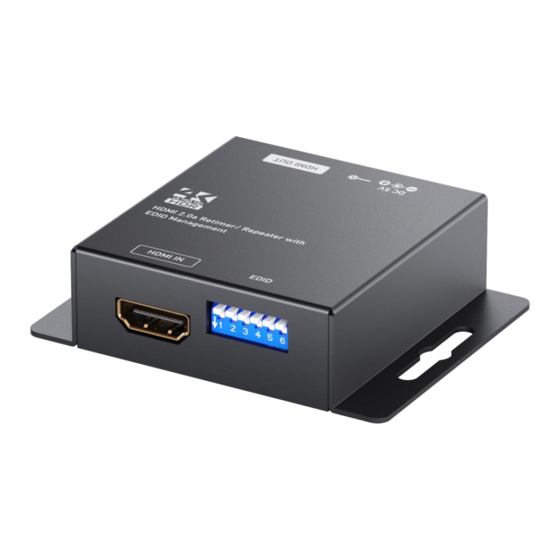

PANEL DESCRIPTIONS 1. Micro USB: Connect to a 5V DC power supply / FW update 2. LED: Power indicator 3. HDMI OUT: Connect to an HDMI display with an HDMI male-male cable here 4. HDMI IN: Connect to an HDMI source with an HDMI male-male cable here 5. -
Page 6: Dip Switch Setting
DIP SWITCH SETTING DIP Switch Position Description Mode Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Off [] Off [] Off [] Off [] Off [] EDID Bypass Off [] Off [] Off [] Off [] On [ ] Use learning EDID Off [] Off [] Off [] On [ ... -
Page 7: Connection Diagram
CONNECTION DIAGRAM... -
Page 8: Operation Approach
OPERATION APPROACH Noted: Only the user define mode(mode 17) requires this software. Getting Started: Your Computer’s System Requirements: The software supports Windows XP consistently. Both Windows7 and Windows 8 are supported after manually configuring the compatibility properties. Windows7 and Windows 8: Please configure the compatibility properties manually. Step1. - Page 9 : To make a quick analysis of EDID information you process, which users are capable of monitoring or modifying. Firmware update Update FW to the device Click to load the FW and update it to CV-5005Z-G device Click , then re-cycle power to start the FW update process...
- Page 10 Create HDMI EDID 1. Click to pop-up the HDMI EDID edition page, which users are capable of monitoring or modifying HDMI EDID here. 2. Click “Add” button after specifying your options. 3. Finally please click “Confirm” button to generate EDID and then you will see the success message.
-
Page 11: Warranty
WARRANTY The SELLER warrants the CV-5005Z-G HDMI 2.0a Retimer/Repeater with EDID Management to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surge.
