GoMax Electronics CV-5005ZG-PT User Manual

CONNECTION DIAGRAM

WARRANTY

The SELLER warrants the CV-5005ZG-PT HDMI
2.0a 4K EDID Management with Retimer /Repeater
& Pigtail Cable to be free from defects in the
material and workmanship for 1 year from the date
of purchase from the SELLER or an authorized
dealer. Should this product fail to be in good
working order within 1 year warranty period, The
SELLER, at its option, repair or replace the unit,
provided that the unit has not been subjected to
accident, disaster, abuse or any unauthorized
modifications including static discharge and power
surge. This warranty is offered by the SELLER for its
BUYER with direct transaction only. This warranty is
void if the warranty seal on the metal housing is
broken.
Unit that fails under conditions other than
those covered will be repaired at the current price
of parts and labor in effect at the time of repair.
Such repairs are warranted for 90 days from the day
of reshipment to the BUYER. If the unit is delivered
by mail, customers agree to insure the unit or
assume the risk of loss or damage in transit. Under
no circumstances will a unit be accepted without a
return authorization number.
The warranty is in lieu of all other warranties
expressed or implied, including without limitations,
any other implied warranty
merchantability for any particular purpose, all of
which are expressly disclaimed.
Proof of sale may be required in order to claim
warranty. Customers outside
responsible for shipping charges to and from the
SELLER. Cables and power adapters are limited to a
30 day warranty and must be free from any
markings, scratches, and neatly coiled.
The content of this manual has been carefully
checked and is believed to be accurate. However,
The SELLER assumes no responsibility for any
inaccuracies that may be contained in this manual.
The SELLER will NOT be liable for direct, indirect,
incidental, special, or consequential damages
resulting from any defect or omission in this
manual, even if advised of the possibility of such
damages. Also, the technical information contained
herein regarding the CV-5005ZG-PT features and
Specifications is subject to change without further
notice.
CV-5005ZG-PT
HDMI 2.0a 4K EDID Management with
Retimer/Repeater & Pigtail Cable
User Manual
or fitness or

INTRODUCTION

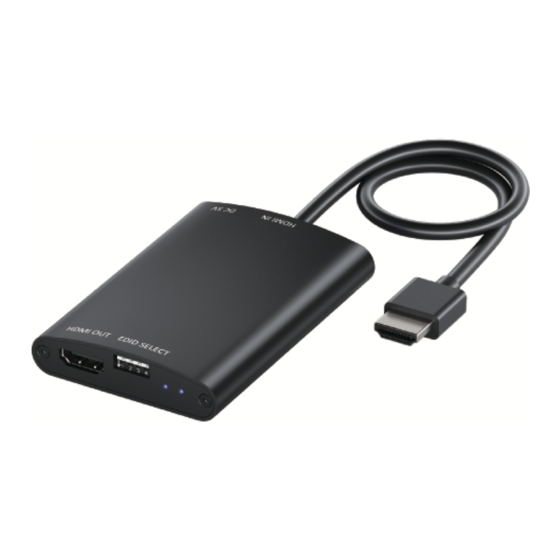

The CV-5005ZG-PT HDMI 2.0a 4K EDID
Management with Retimer /Repeater & Pigtail Cable
Taiwan are
boosts up your HDMI extension transmission over
long cable and makes multiple layers cascading of
HDMI products possible. With built-in EDID
management, the EDID information can be provided
to a connected HDMI source device. EDID includes
critical information about the capabilities of the
connected display, including audio & video format
support, HDMI feature support. This device can use
not only built-in defult EDIDs and pre-made EDIDs,
but also the EDIDs copied from other displays. The
CV-5005ZG-PT amplifies and equalizes the HDMI
signal to provide high quality audio and video. The
power can be provided by HDMI source which follows
HDMI spec to provide 5V. If the source cannot provide
enough power, the external power can be added to
extend HDMI2.0a signal.
rev: 200504
Made in Taiwan
