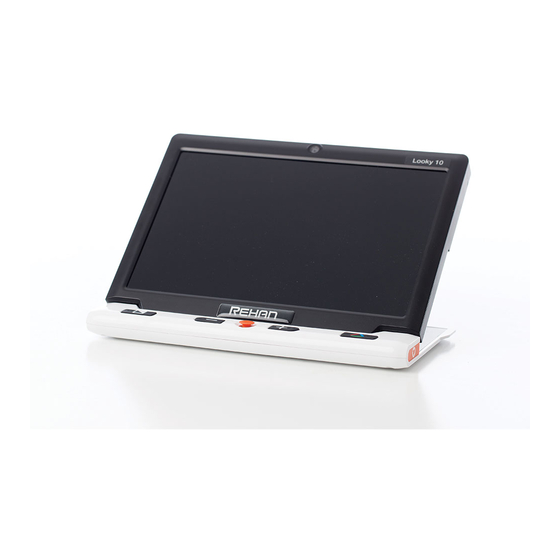

- Page 1 Looky 10 USER MANUAL...
-
Page 3: Table Of Contents
Table of contents 1 Precaution ........................4 2 Quick Start........................4 Overview ......................... 4 Compositions........................5 Accessories ........................6 Battery Charging ......................6 Power LED ........................6 Stand ..........................7 3 Operation ........................7 Power Button ........................7 Beep Type ........................7 Beep Control ........................ -
Page 4: Precaution
1 Precaution Before using Looky 10 for the first time, you must charge its battery. Refer to Battery Charging section for more details. Always operate the unit in a place where the temperature is between 10°and 35°C (50°and 95°F). Keep the unit away from wet areas, rain, and other sources of liquids. Do not submerge the unit. -
Page 5: Compositions
Compositions LCD-screen Front camera Enhanced Color Zoom out Joystick Zoom in True Color 4 5 6 Rear camera LED lights 10. Stand 11. Power button 12. Power port 13. HDMI port 14. Locate button 15. Freeze button 16. Camera switch 17. -
Page 6: Accessories
As long as the red light starts to flash, it is a signal to charge the battery. • You can also check the battery status by pressing the power button. Refer to the follo- wing instructions for more details. Looky 10... -
Page 7: Stand

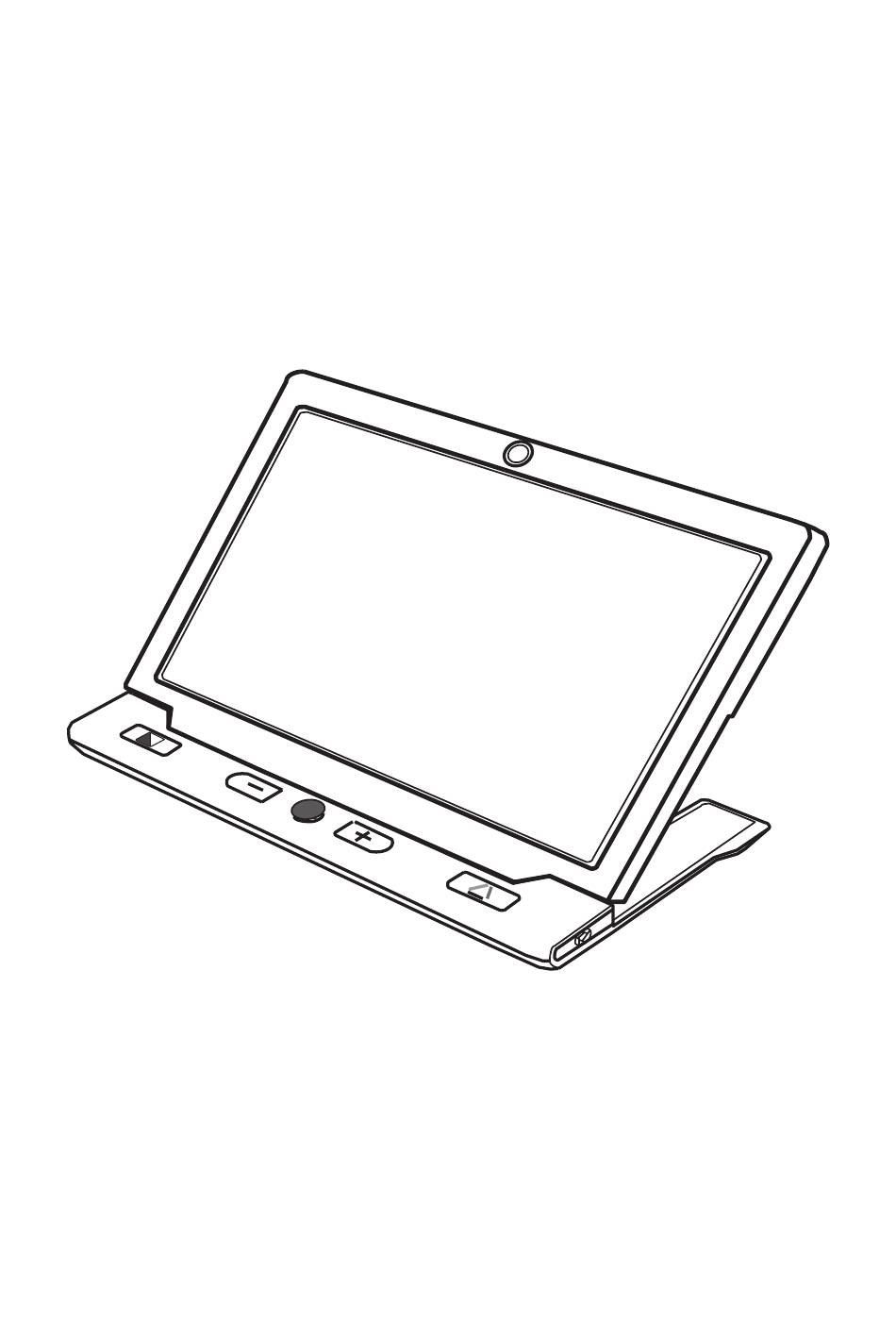

Stand With integrated fold-away writing stand at an ergonomic viewing angle, Looky 10 can satisfy users’ desire to read more and long time in a comfortable position. Also there’s enough space under the camera to work the pen. Unfold the stand as the following figure shows. -
Page 8: Camera Switch
17. White on red 4. Black on yellow 11. Violet on black 18. Red on black 5. White on blue 12. Black on violet 6. Blue on white 13. Blue on black 7. Yellow on blue 14. Black on blue Looky 10... -
Page 9: Brightness
Brightness Brightness of the screen can be adjusted in both Full-color mode and Enhanced-contrast mode. • Press and hold the Power button and press the Zoom In button to increase the bright- ness. Factory default value will be highlighted green. • Press and hold the Power button and press the and Zoom Out button to decrease the brightness. -
Page 10: Line & Mask
Memory The unit will memorize automatically the most recent settings such as color mode, magnification, beep when power is off normally and apply them when the unit is on next time. Looky 10... -
Page 11: Hdmi Output
HDMI Output Connect the unit to your external display device with HDMI cable for a better and larger viewing. Auto Power Saving If no operation and no move for over 3 minutes, the unit will turn off automatically. Press and hold the Power button and click the Enhanced Color button to turn on/off the Auto Power Saving function manually (factory default is on). -
Page 12: Troubleshooting
• Press power button to check the current status. • Restart the unit. • Hardware Reset. Smudges or blemishes on the screen • Adjust brightness. • Clean the LCD screen and camera. Please contact your local distributor if your problem is not solved. Looky 10... -
Page 13: Specifications
5 Specifications Display 10 inch wide LCD, HD screen Camera Auto Focus, HD Photograph Full colour (or high saturation) White on black White on blue Simplified “Enhanced Color Black on white Yellow on blue Combination List” Yellow on black White on black Black on green Black on white Violet on black... - Page 14 REHAN ELECTRONICS Aughrim Road Carnew County Wicklow Ireland www.rehanelectronics.ie...
