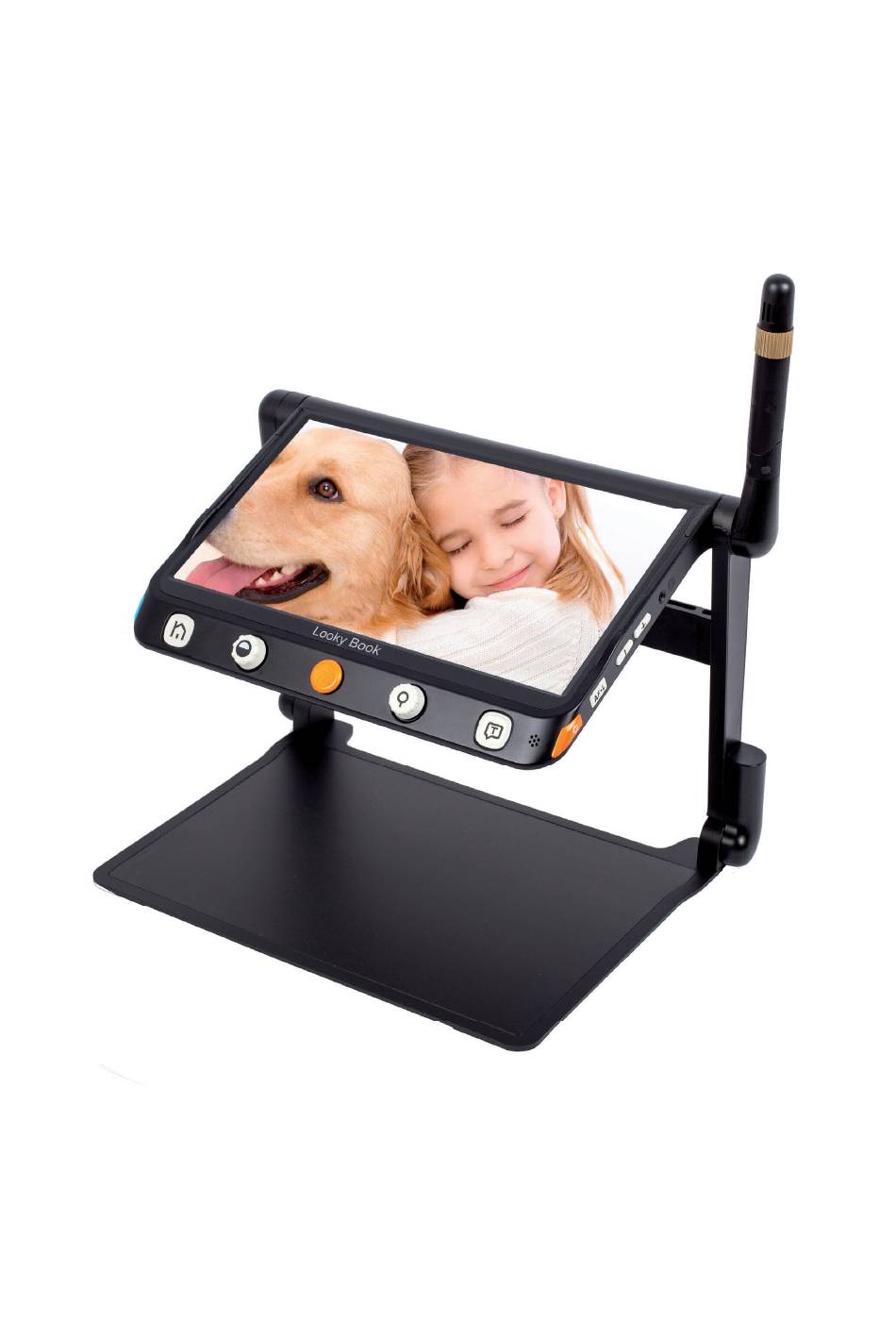

- Page 1 Looky Book USER MANUAL...
-
Page 3: Table Of Contents
Table of contents 1 Precaution ........................4 2 Quick Start........................4 Overview ......................... 4 Compositions ........................5 Accessories ........................6 Setting Up........................6 Distance Camera Setting up (Optional) ................7 Light Shield Setting up (Optional) .................. 7 Battery Charging......................7 Power LED ........................ -
Page 4: Precaution
1 Precaution Before using Looky Book for the first time, you must charge its battery. Refer to the Battery Charging section for more details. Always operate the unit in a place where the temperature is between 10° and 35°C (50°and 95°F). -
Page 5: Compositions
24 . Unlock Button 25 . LED Lights 26 . Main Camera 27 . Camera Stick 28 . Position Knob 29 . Distance Camera Note: Item 27, 28 and 29 are only available for the device with the built-in distance camera. Looky Book... -
Page 6: Accessories
2. Keep pressing the tray and unfold the arms to a suitable angle. 3. Unfold the display panel to a comfortable reading height. Looky Book... -
Page 7: Distance Camera Setting Up (Optional)
Peel off the sticker cover from the light shield and then adhesive the shield to the back side of the device as the pictur Battery Charging Connect the supplied power cable to the unit’s charging port, then connect the power adapter into an AC outlet to start charging. Looky Book... -
Page 8: Power Led
1. Turn the device upside down and let the back cover of panel face to you as the pictures show. 2. Press the Unlock Button on the back side and the battery will be released. Take the battery out and insert a new one. Looky Book... -
Page 9: Operation
3 Operation Looky Book has different configurations as touch screen, built-in distance camera and OCR function are optional to satisfy various requirements. According to the model that you purchased, please refer to the corresponding operation. Power Button • Press and hold the Power button ( ) for 3 seconds to turn on the unit. -
Page 10: Brightness
• Use the slide gesture or turn the Zoom button ( ) to change the contrast color of background and foreground. • No operation for 5 seconds or short press the Home/Exit button ( ) or Speech/Enter button ( ) or tap the inactive area to close. Looky Book... -
Page 11: Lighting
• Press Freeze button ( ) to lock/unlock the image. • For the locked image with increased magnification, you can use the pinch and zoom gesture or the Joystick ( ) to navigate around freely. Looky Book... -
Page 12: Image Storage
) to switch among different Reading Line & Mask modes. The Live-panning function is still available. When the reading line is available, long press the Locate button ( ) and rotate the Enhanced Color button ( ) can change the line color. Looky Book... -
Page 13: Location Function
) to to any direction and press down the Zoom button ( ) can re-center the box. • Short press the Zoom button ( ) again (or double tap inside the box), then the high- lighted context will zoom in to the previous higher zoom level automatically Looky Book... -
Page 14: Live Panning
Looky Book Lite/Mate: press the Switch button ( ) to quickly get into the picture gallery. Looky Book Pro: long press the Switch button ( ) in near view mode to get into full page reading. Long press the Switch button ( ) in other viewing modes to quickly back to the Near View mode. - Page 15 Viewing Mode toggling Looky Book Plus/Pro: press the Switch button ( ) to toggle between 2 viewing modes or 4 viewing modes (Split screen is only available on the Pro version). Near View Distance/Mirror View Horizontal Split Screen Vertical Split Screen Distance View and Mirror View toggling Rotate the Position Knob clockwise and make the distance face to you.
- Page 16 • Note: Find, Freeze, Line&Mask functions and so on are disabled in this function. • Tap the icon to disable the function (or long press the Zoom button ( ) for 2 seconds). Looky Book...
-
Page 17: Full Page Reading (Optional)
) to pop up the control bar. Tap the Rotation icon ( ) to change the direction. • Press the Speech/Enter button ( ) to reactivate the OCR function. Tap the Exit icon (or long press the Home/Exit Button ( )) to return to the last application. Looky Book... - Page 18 • Tap the Play icon (or press the Speech button ) to start reading the highlighted sections in sequence. • Tap the Pause icon (or press the Speech button ) to pause the reading. • When paused, tap multi sections that you are interested in. Looky Book...
-
Page 19: Open Application
SD card. • With Multi-seletion enabled, a couple of selected pictures/documents can be trans- ferred at once by tapping the Transfer icon (or press the Freeze button ) to pop up choose box. Looky Book... - Page 20 Trash icon (or press the Locate button ) will pop the choose box. Tap the Trash icon (or press the Speech/Enter button or ) to delete or tap the Exit icon (or press the Home/Exit button ) to cancel. Looky Book...
-
Page 21: Settings Menu
• Use the tap gesture (or rotate the Enhanced Color button ) to switch from the 3 setting pages. • Use the tap gesture to highlight and change the content of the item or get into the sub- page (or push the Joystick to highlight and press the Speech/Enter button to change). Looky Book... -
Page 22: Hdmi Output
The internal distance camera will be bypassed Hardware Reset When the unit is hung or can’t be turned off normally, press the Power and Voice Up Button and Voice Down Button at the same time to trigger the hardware reset. Looky Book... -
Page 23: Troubleshooting
• move your hand back and forth over the document you are viewing to trigger the focus • Tap on the screen for 2 seconds to trigger the focus manually Other problems • Restore to factory defaults in the menu • Hardware Reset Please contact your local distributor if the problem is not solved. Looky Book... -
Page 24: Specifications
4-5 hours continuous use (depending on Battery usage) 3 hours full charge time Power Adapter Input: 110-240V; Output: 12V/3A Dimensions <= 378*262*40mm (Device folded) Weight <= 2400g (Battery included) If you have any questions after reading this manual, please contact your supplier. Looky Book... - Page 26 REHAN ELECTRONICS Aughrim Road Carnew County Wicklow Ireland...
