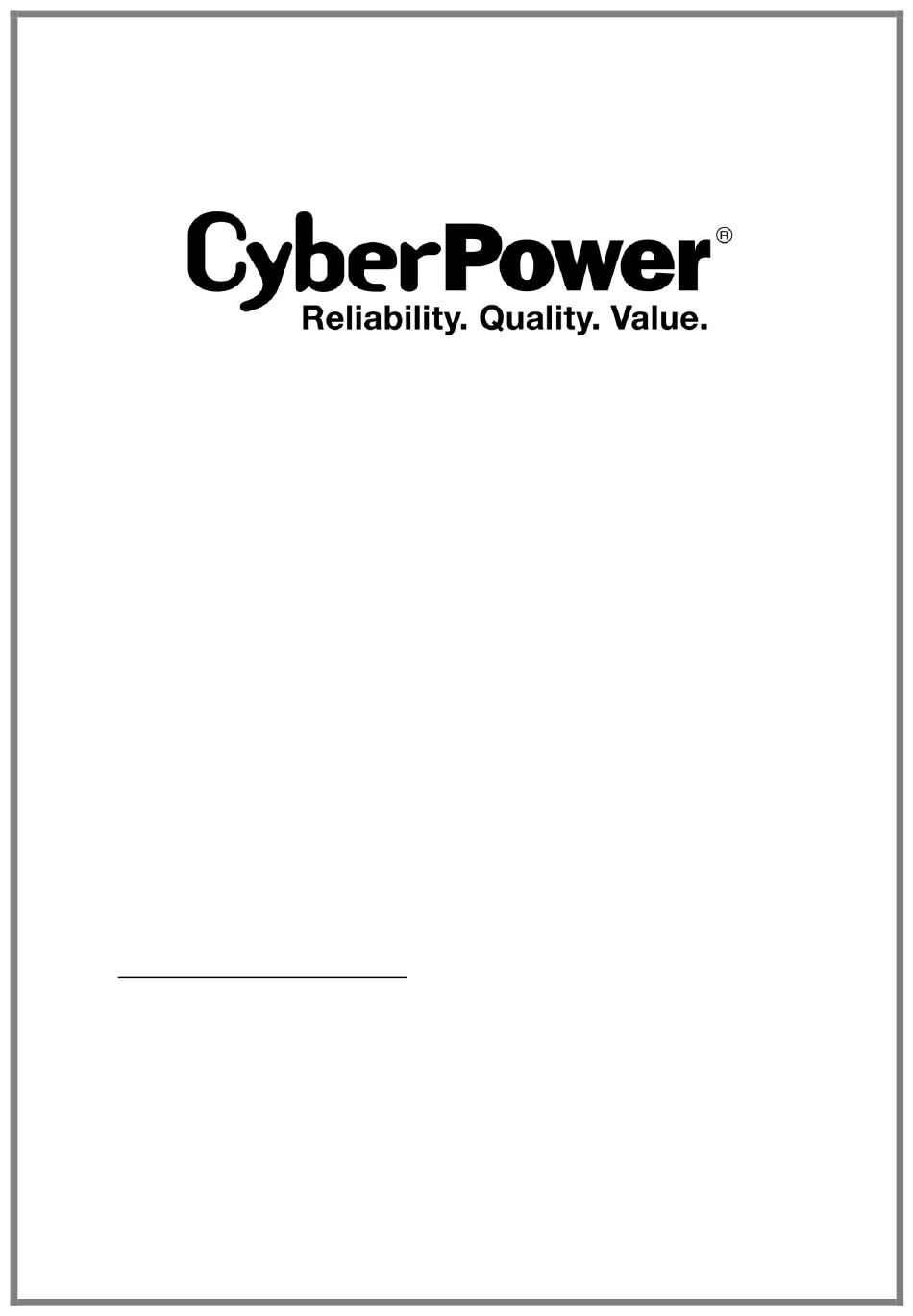

- Page 1 User’s Manual Step-Down Transformer OL6KRT2UTFHWIOTAA OL10KRT2UTFHWIOTAA OL6KRT2UTFHWIORTAA OL10KRT2UTFHWIORTAA CyberPower Systems (USA), Inc. 4241 12th Avenue East Suite 400 Shakopee, MN 55379 Phone: 877-297-6937 Fax: 952-403-0009 www.CPSww.com...
- Page 2 The CyberPower Step-Down and Isolation Transformers support installation with hardwire (OL6KRT2UTFHWIOTAA / OL10KRT2UTFHWIOTAA / OL6KRT2UTFHWIORTAA / OL10KRT2UTFHWIORTAA), and are designed for a variety of CyberPower UPS systems. When combined with the UPS, the Step-Down configuration converts voltage from 200-240V down to 100-120V. The Isolation configuration provides the UPS and connected equipment from any outside utility line fluctuations or interference.
-
Page 3: Hardware Installation
CAUTION! The Step-Down Transformer must be installed above the positioning the Step-Down Transformer in the rack. The 2U Step-Down power module. Transformer takes up position 1 through position 6. The 3U Step-Down Transformer takes up position 1 through position 9. Copyright © 2014 CyberPower Systems, Inc. -
Page 4: Vertical/Tower Installation
CAUTION! Do not work alone under hazardous conditions. CAUTION! In case of the risk of electric shock, do not remove the top cover. CAUTION! The battery can energize hazardous live parts inside even when the AC input power is disconnected. Copyright © 2014 CyberPower Systems, Inc. - Page 5 Loosen the four screws to separate the top and bottom covers. Step 2: Fix the bottom cover on the terminal block Tighten the two screws to fix the bottom cover on the terminal block. Copyright © 2014 CyberPower Systems, Inc.
- Page 6 Hardwire the input / output terminals as shown in the following terminal block identification and configuration table. Step 4: Fix the top cover on the bottom cover Tighten the four screws to fix the top cover on the bottom cover. Copyright © 2014 CyberPower Systems, Inc.
- Page 7 L1 → L2T 208Vac Input Voltage AC Output Connection Output Voltage L1 → N ← L2 120Vac → 0 ← 120Vac L1 → L2 = 240Vac L1 → L2 240Vac L1 → L2T 208Vac Copyright © 2014 CyberPower Systems, Inc.
-
Page 8: Power Cable Connection
HARDWIRING THE INPUT/ OUTPUT TERMINALS POWER CABLE CONNECTION OL6000RT3UTFTAA OL8000RT3UTFTAA / OL10000RT3UTFTAA OL6000RT3UPDUTFTAA OL8000RT3UPDUTF / OL10000RT3UPDUTFTAA Copyright © 2014 CyberPower Systems, Inc. -
Page 9: Basic Operation
Provides battery backup and surge protection. They ensure power is provided to connected equipment over a period of time during a power failure. 4. Output Circuit Breaker (120Vac) Provides output overload and fault protection. OL6KRT2UTFHWIOTAA / OL10KRT2UTFHWIOTAA / OL6KRT2UTFHWIORTAA / OL10KRT2UTFHWIORTAA OL6KRT2UTFHWIORTAA / OL10KRT2UTFHWIORTAA OL6KRT2UTFHWIOTAA / OL10KRT2UTFHWIOTAA... -
Page 10: Technical Specifications
CAUTION! Before connecting to the UPS, check that the input voltage into the UPS is within specifications. CyberPower Systems Inc. www.cpsww.com © Entire contents copyright 2014 CyberPower Systems Inc., All rights reserved. Reproduction in whole or in part ® ® without permission is prohibited. PowerPanel Business Edition and PowerPanel... -
Page 11: Product Registration
If the Product is defective in material or workmanship, CyberPower will repair or replace it at CyberPower's expense, or, if CyberPower is unable to or decides not to repair or replace the Product (if defective) within a reasonable time, CyberPower will refund to you the full purchase price you paid for the Product (purchase receipt showing price paid is required). - Page 12 (collectively, "High Risk Activities"). CyberPower expressly disclaims any express or implied warranty of fitness for High Risk Activities or with aquariums. CyberPower does not authorize use of any Product in any High Risk Activities or with Aquariums.
-
Page 13: Conformance Approvals
Cet appareil numerique de la class A respecte toutes les exigencies du Reglement sur le materiel brouilleur du Canada. This document is believed to be accurate, but CyberPower reserves the right to change or correct the contents and does not assume any responsibility for omissions or errors.
