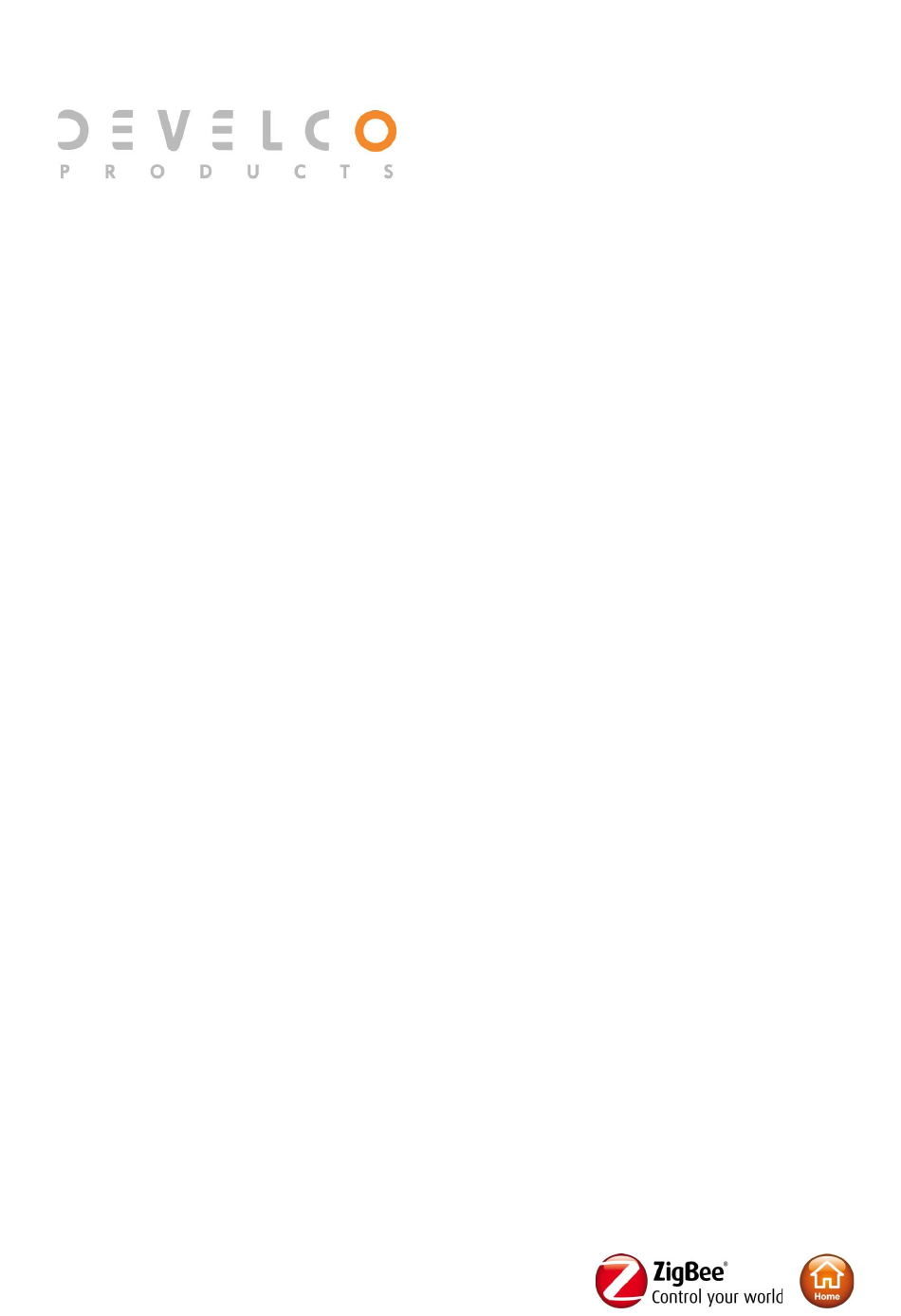

- Page 1 External Meter Interface – ZHEMI-101 Technical manual Revised 06.05.2020...
-
Page 2: Table Of Contents
External Meter Interface – ZHEMI-101 –Technical manual Content Cautionary notes ............................................5 Features ................................................ 6 External Meter Interface – ZHEMI-101 ................................. 6 Endpoints............................................... 7 ZigBee Device Object (ZDO) ......................................7 Develco Utility ............................................7 Metering Device – End Point 0x02, 0x40 and 0x41 ............................7 Clusters ................................................ - Page 3 External Meter Interface – ZHEMI-101 –Technical manual Action upon Push Button Release ..................................16 Action on Power On .........................................17 Join Device on a Network ......................................17 Toggle Identify Mode ........................................17 General network behaviour ......................................18 Installation ............................................18 Normal – Keep alive ........................................18 6.2.1...
- Page 4 Develco Products assumes no responsibility for any errors, which may appear in this manual. Furthermore, Develco Products reserves the right to alter the hardware, software, and/or specifications detailed herein at any time without notice, and Develco Products does not make any commitment to update the information contained herein.
-
Page 5: Cautionary Notes
Develco Products A/S reserves the right to make changes to any product to improve reliability without further notice. Develco Products A/S does not assume any liability arising out of the application or use of any product or circuit described herein; neither does it convey any license under patent rights or the rights of third parties. -
Page 6: Features
External Meter Interface – ZHEMI-101 –Technical manual 2 Features External Meter Interface – ZHEMI-101 The ZigBee HA meter serves as external ZigBee interface for electronic meters. It collects meter readings from existing meters already installed and sends data via ZigBee to appliances in the building. This way, you can follow your energy consumption at an in-house display, at your computer, or at your mobile phone. -
Page 7: Endpoints
• Private profile for internal Develco Products use only. The DevUtil end point support a Develco products specified bootloader. New firmware can be downloaded to the device using the SmartAMM server + SamrtAMM client tool. Metering Device – End Point 0x02, 0x40 and 0x41 •... -
Page 8: Clusters
Primary SW Version OctetString Read only ZCL header setting – Manufactor code for Develco Products is 0x1015 4.1.2 Identify – Cluster id 0x0003 The identify cluster serves as a way to make a device identify itself either visually or by sound. -
Page 9: Commands
External Meter Interface – ZHEMI-101 –Technical manual 4.1.2.2 Commands The identify cluster has 2 commands as server. Name Payload Man/Opt Relevance and ref. 0x00 Identify Uint16 - Identify Time (seconds) 0x01 Identify Query none The identify cluster has 1 command as client. -
Page 10: 0X02 Meter Status Attribute Set
External Meter Interface – ZHEMI-101 –Technical manual 0x02 CurrentTier2SummationDelive Uint48 Type range ZCL configure reporting is supported 0x03 CurrentTier2SummationReceiv Uint48 Type range ZCL configure reporting is supported Note: The attributes above is only supported when using - IEC62056-21 IR communication protocol. -
Page 11: 0X04 Historical Attribute Set
External Meter Interface – ZHEMI-101 –Technical manual If the Multiplier and Divisor attribute values are zero, just the formatting hints defined in SummationFormatting, ConsumptionFormatting, and DemandFormatting attributes are used. The following set of attributes provides the ratios and formatting hints required to transform the received summations, consumptions or demands/rates into displayable values. -
Page 12: Metering Cluster - Manufacture Specific Attributes
External Meter Interface – ZHEMI-101 –Technical manual 4.1.4 Metering cluster - Manufacture Specific Attributes Develco Manufacture code is 0x1015. Table 1 : Formatting Attribute Set (Manufacture Specific) Identifier Name Type Range Access Default Man./Opt. 0x0300 PulseConfiguration Unsigned 16- 0x0000 – 0xFFFF... -
Page 13: Metering Cluster For Ep 0X40 And 0X41
External Meter Interface – ZHEMI-101 –Technical manual The current standard IR probe supports 300-1200 BAUD. IR probe supporting 9600 BAUD is available on request. 0x0103 P1 dutch standard – DSMR 2.3 version 0x0104 P1 dutch standard – DSMR 4.0 version... -
Page 14: 0X03 Formatting Attribute Set
External Meter Interface – ZHEMI-101 –Technical manual 4.1.5.2 0x03 Formatting attribute set The following set of attributes provides the ratios and formatting hints required to transform the received summations, consumptions or demands/rates into displayable values. If the Multiplier and Divisor attribute values are non-zero, they are used in conjunction with the SummationFormatting, ConsumptionFormatting, and DemandFormatting attributes. - Page 15 External Meter Interface – ZHEMI-101 –Technical manual 1-0:2.8.2 CurrentTier2SummationReceived 0x0103 0x02 0-0:96.14.0 ActiveRegisterTierDelivered 0x0020 0x02 0-0:96.14.0 ActiveRegisterTierReceived 0x0021 0x02 1-0:1.7.0 InstantaneousDemand 0x0400 0x02 InstantaneousDemand = 1-0:2.7.0 (1-0:1.7.0)-(1-0:2.7.0) 0-0:96.1.1 MeterSerialNumber 0x0308 0x02 If OBIS code not present, will use meter identification string instead 0-0:1.0.0...
-
Page 16: Mmi User Guide
External Meter Interface – ZHEMI-101 –Technical manual 5 MMI user guide Push Button Menu: Pushing the button on a device provides the user with several possibilities. A single short push has a specific meaning for the given device, for this sensor a single short push will toggle the occupancy status (occupied/unoccupied.). -
Page 17: Action On Power On
External Meter Interface – ZHEMI-101 –Technical manual Mode Number of flashes on mode Availability Action Taken upon Button menu entry Release Idle None All devices None Identify All devices Toggle Identify Mode (On/Off) Reset To Factory Continuous flash (>8) All Devices... -
Page 18: General Network Behaviour
External Meter Interface – ZHEMI-101 –Technical manual 6 General network behaviour Installation When the device is virgin and powered for the first time it will start looking for a ZigBee PAN Coordinator or router to join. The device will scan each ZigBee channel starting from 11 to 26. The LED will flash once every second until it joins a device. -
Page 19: Configuration
External Meter Interface – ZHEMI-101 –Technical manual According to the ZigBee specification TX is NOT allowed to be enabled all the time and a TX silent period has to be defined. #Scan Mode Scan all 16 ZigBee channel x 4... -
Page 20: Specifications
External Meter Interface – ZHEMI-101 –Technical manual 7 Specifications External Meter Interface – ZHEMI-101 Dimensions 115 x 35 x 70 mm Colour Black Operation temperature -20°C to +60°C Storage temperature -40°C to +85°C Supply voltage Optional 5V power supply With 3xAA Alkaline batteries: >2 years... -
Page 21: Contact Information
External Meter Interface – ZHEMI-101 –Technical manual 8 Contact Information Technical support: Please contact Develco Products for support. products@develcoproducts.com Sales: Please contact Develco Products for information on prices, availability, and lead time. info@develcoproducts.com Develco Products A/S Olof Palmes Allé 40 http://develcoproducts.com DK-8200 Aarhus N info@develcoproducts.com...
