Start-Up

For Your Safety Read Before Lighting
If you do not follow these instructions exactly, a fire
or explosion may result causing property damage,
personal injury, or loss of life.
This furnace is equipped with a direct ignition control.
Do not attempt to manually light the burners.
To Light Main Burners
1. Turn off electrical power to unit.
2. Turn the thermostat to lowest setting.
3. Move the gas valve ON/OFF switch to the "ON"
position (Figure 7).
4. Turn on electrical power to the unit.
5. Set the room thermostat to the desired temperature.
(If the thermostat "set" temperature is above room
temperature after the pre-purge time expires, main
burners will light.)
Gas Inlet
Pressure Test
Tap
ON/OFF
Switch
Gas Manifold
Pressure Test
Tap

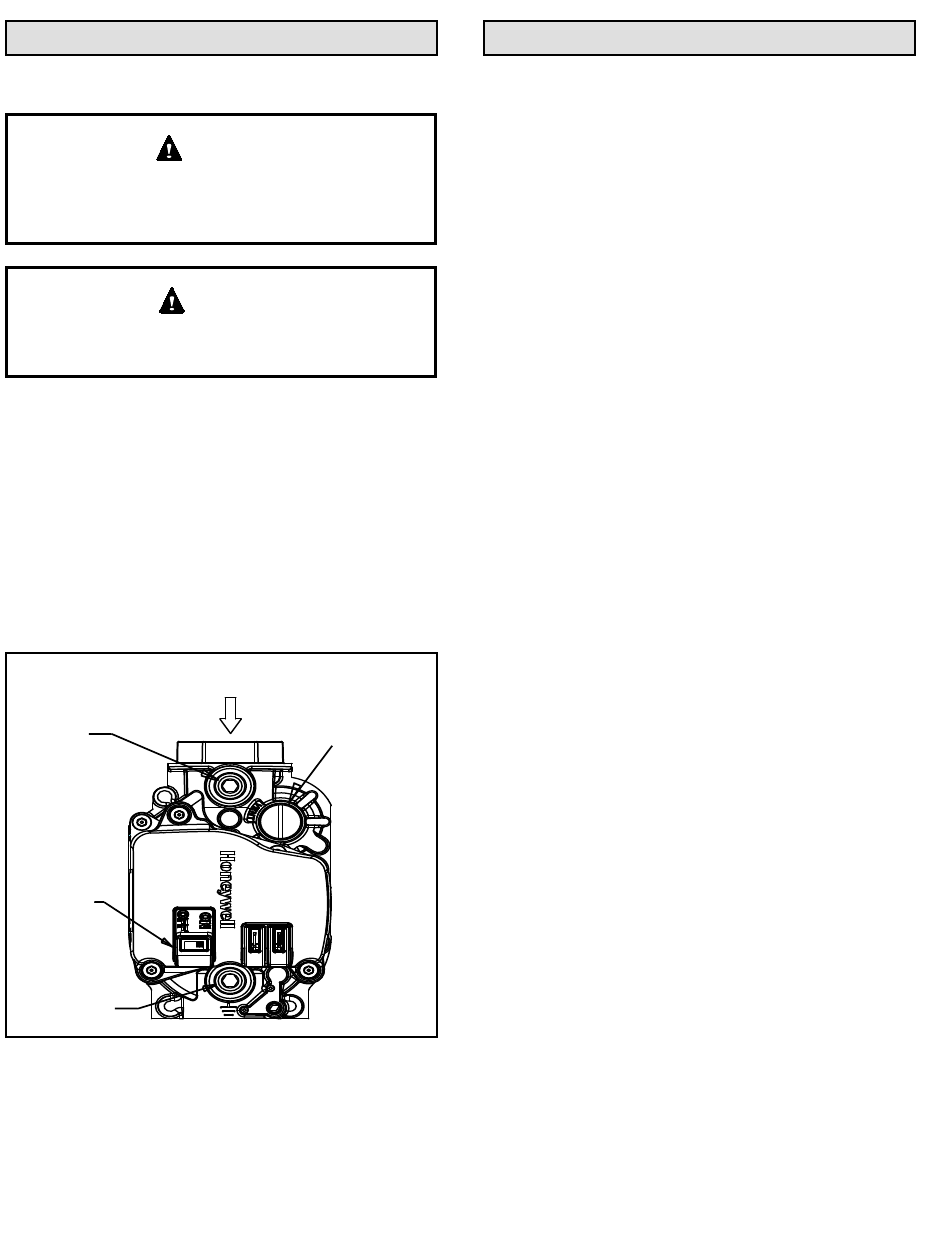

Figure 7. Gas Valve
To Shut Down Main Burners
1. Turn off electrical power to unit.
2. Move the ON/OFF switch to the "OFF" position (Figure
7).
Page 10 of 16
WARNING
CAUTION
Gas Inlet
Regulator Adjustment
Screw
(Under Cap)

Operation

Operation of the unit is automatic and will provide heating
and cooling depending on the setting of the thermostat.
Heating
1. Turn on main power supply.
2. Open manual gas shutoff valve.
3. Set thermostat system to "HEAT".
4. Set thermostat to temperature desired.
Cooling
1. Turn on main power supply.
2. Set thermostat system switch to "COOL".
3. Set thermostat to temperature desired.
Heating Sequence of Operation
1. Thermostat calls for heat.
2. Combustion blower starts and proper air flow is proven
by the pressure switch closing.
3. Blower continues to operate for 30 seconds prior to
the burners lighting.
4. Ignition control begins spark and opens gas valve. The
burners are lit. Ignition is proved through the flame
sensor.
5. Circulating air blower starts 30 seconds after the
burners light.
6. When the thermostat is satisfied, the burners and
combustion blower shut off.
7. Circulating air blower will shut off 120 seconds later.
If the burners should fail to ignite, the ignition control will
try to ignite the burners a total of three times. Should the
burners fail to ignite within the three trials for ignition, the
ignition control will lock out for 1 hour before beginning
another ignition cycle. To reset the control, turn the
thermostat down or off for 10 seconds and then set to
desired setting. At this time, the ignition sequence will try
again.
Blower Control
The blower will start approximately 30 seconds after the
burners ignite and will stop approximately 120 seconds
after the thermostat is satisfied. The time delay is preset at
the factory and timing can not be adjusted.
Cooling Sequence of Operation
When the thermostat system switch is set for "COOL", the
blower will start 5 seconds after the thermostat calls for
cooling and will stop 90 seconds after the thermostat is
satisfied.
Issue 1732 507388-01
