Product Information
Thank you for purchasing this product. Before using the product, read through the user manual to ensure that
you will use the product correctly.
Please keep this manual for future reference.
■ Features
• Designed for surface-mount applications such as conferencing, recording, monitoring and other demanding
sound pickup applications
• Low-profile element provides uniform omnidirectional polar pattern with 360° acceptance angle
• Mounts unobtrusively in tabletops, ceilings and panels
• IPX4 water resistance protects the microphone from splashes of water
• Self-contained power module with XLRM-type output connector
• Rugged all-metal case with a two-layer perforated grille
• Rubber Isolators provide mechanical dampening of mounting-surface vibration
• Requires 11V to 52V DC phantom power
• UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
■ Description
With its low-profile design that mounts unobtrusively in tabletops, ceilings or panels for minimum visibility, the
ES945WO/XLR omnidirectional condenser boundary microphone provides clear, highly intelligible audio that is
perfect for conferencing, recording, monitoring and other demanding sound pickup applications.
Protected by a rugged all-metal case with a two-layer perforated grille, the microphone's omnidirectional polar
pattern affords a 360° pickup angle, while its UniGuard® RFI-shielding technology provides outstanding
rejection of radio frequency interference (RFI). The microphone also offers IPX4 water resistance to protect it
from splashes of water.
The ES945WO/XLR is equipped with a self-contained power module with an XLRM-type output connector,
eliminating the need for an external power module. The integral power module can be powered from any
external 11V to 52V DC phantom power supply.
The microphone is white colour, and comes with a pair of rubber isolators for optional mechanical isolation from
the mounting surface.
Avoid leaving the microphone in the open sun or in areas where temperatures exceed 43°C for extended
periods. Extremely high humidity should also be avoided.
■ Safety precaution
Although this product was designed to be used safely, failing to use it correctly may result in an accident. To
ensure safety, observe all warnings and cautions while using the product.
■Cautions for the product
• Do not subject the product to strong impact to avoid malfunction.
• Do not disassemble, modify or attempt to repair the product.
• Do not handle the product with wet hands to avoid electric shock or injury.
• Do not store the product under direct sunlight, near heating devices or in a hot, humid or dusty place.
■ Connection procedure
Connect the output terminals of the microphone to a device that has a microphone input (balanced input)
compatible with a phantom power supply. The output connector is an XLRM-type with polarity as shown in the
figure below.
Output terminals
PIN1 (ground)
PIN2 (hot)
PIN3
(cold)
This product requires 48 V
DC phantom power.

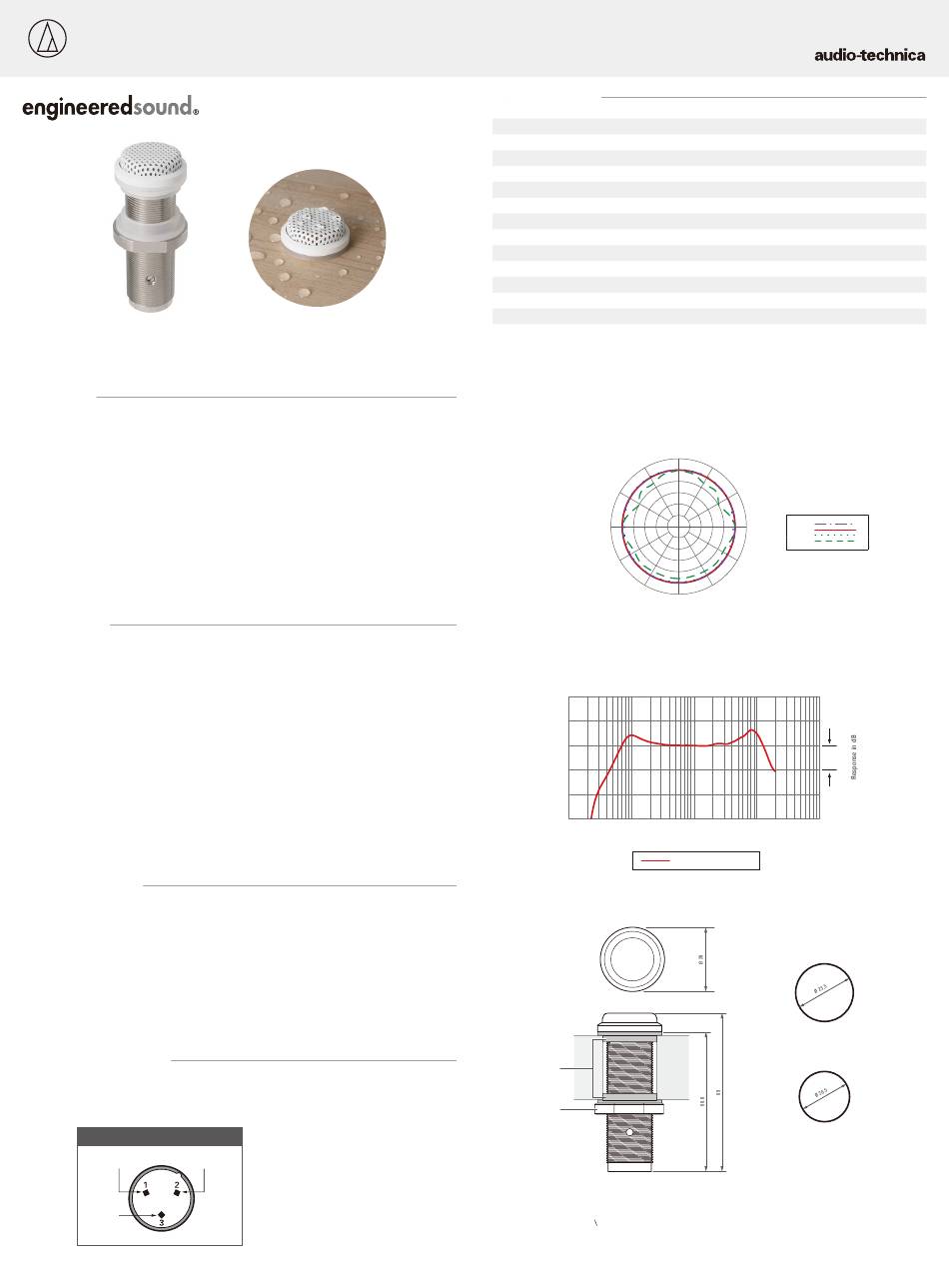

Omnidirectional Condenser Boundary Microphone ES945WO/XLR
■ Specifications
Element
Polar pattern
Frequency response
Open circuit sensitivity
Impedance
Maximum input sound level
Dynamic range (typical)
Signal-to-noise ratio*
Phantom power requirements
Weight
Dimensions
Output connector
Included accessories
Colour
• 1 Pascal = 10 dynes/cm
= 10 microbars = 94 dB SPL
2
* Typical, A-weighted, using Audio Precision System One.
For product improvement, the product is sublect to modification without notice.
■Polar pattern
330°
300°
270°
240°
210°
SCALE IS 5 DECIBELS PER DIVISION
■Frequency response
20
10
0
-10
-20
-30
10
100
LEGEND
■Dimensions
Rubber isolators
Nut
Audio-Technica Corporation
2-46-1 Nishi-naruse, Machida, Tokyo 194-8666, Japan
©2017 Audio-Technica Corporation
Global Support Contact: www.at-globalsupport.com
Fixed-charge back plate, permanently polarized condenser
Omnidirectional
60 - 15,000 Hz
-33 dB re 1V at 1 Pa
100 ohms
130 dB SPL (1 kHz at 1% THD)
109 dB (1 kHz at Max SPL)
73 dB (1 kHz at 1 Pa, A-weighted)
11-52 V DC, 2 mA
62 g
28 mm head diameter, 69 mm long
Integral 3-pin XLRM-type
Rubber isolator x 2, Nut
White
30°
60°
LEGEND
200 Hz
90°
1 kHz
5 kHz
8 kHz
120°
150°
180°
10 dB
1k
10k
100k
Frequency in Hertz
0°, 50cm
Table/ceiling hole size
When using isolators
Table
When not using isolators
(Unit: mm)
5-FEB-2021
Form No.ATGC-L0393-21
